TOYOTA HILUX 4RUNNER 4WD VZN130R-GKPSEQ / POWERTRAIN-CHASSIS / TRANSFER CASE EXTENSION HOUSING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

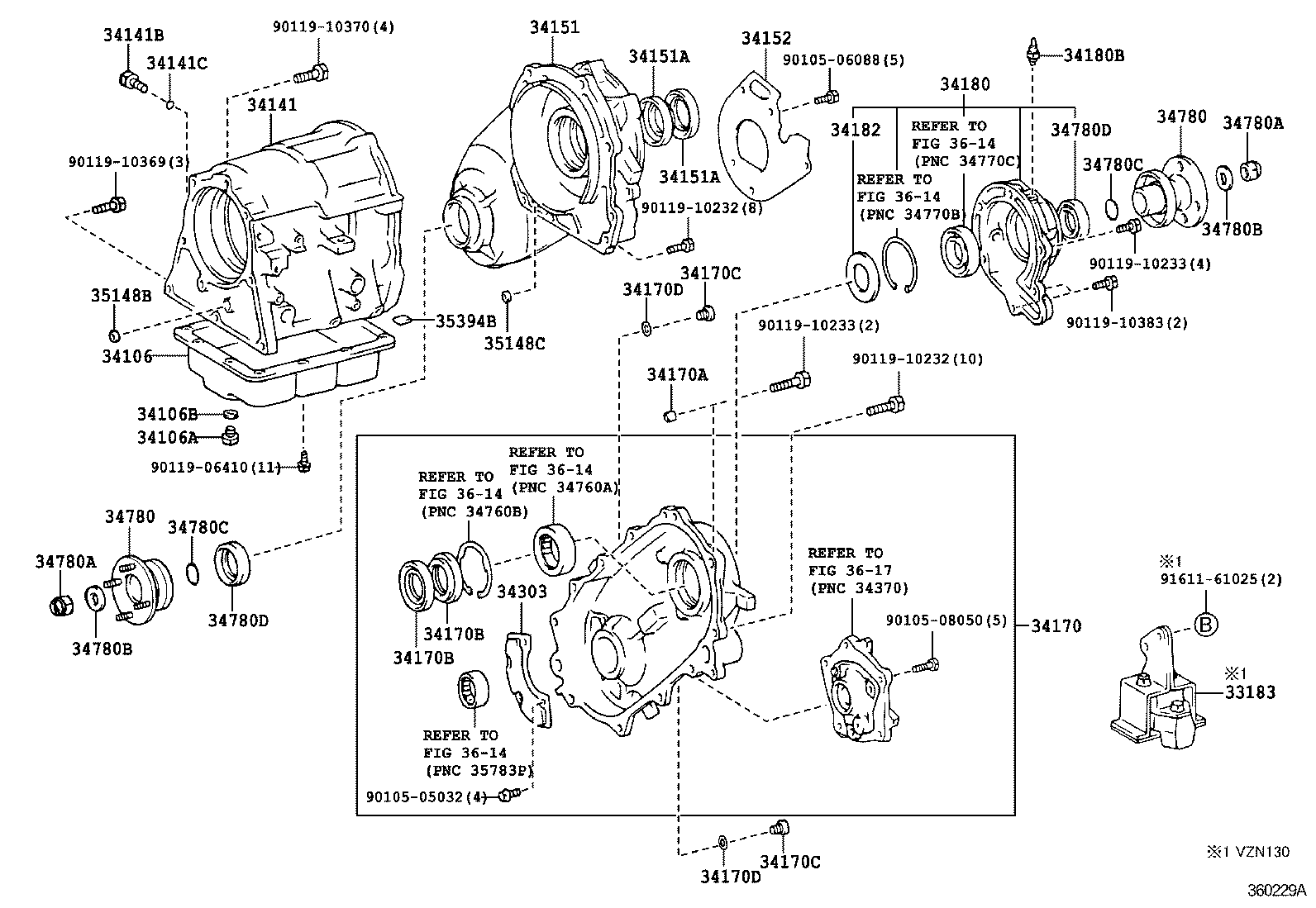

TRANSFER CASE EXTENSION HOUSING

(8908-9511)4FC

 HILUX 4RUNNER 4WD |  TRANSFER CASE EXTENSION HOUSING 33183 - DAMPER, TRANSFER DYNAMIC 34106 - PAN SUB-ASSY, TRANSFER OIL 34106A - PLUG (FOR TRANSFER OIL PAN) 34106B - GASKET (FOR TRANSFER OIL PAN) 34141 - CASE, AUTOMATIC TRANSFER 34141B - PLUG (FOR AUTOMATIC TRANSFER CASE) 34141C - RING, O (FOR AUTOMATIC TRANSFER CASE) 34151 - CASE, TRANSFER CHAIN, FRONT 34151A - SEAL, OIL (FOR TRANSFER CHAIN CASE) 34151A - SEAL, OIL (FOR TRANSFER CHAIN CASE) 34152 - RECEIVER, TRANSFER CHAIN OIL 34170 - CASE ASSY, TRANSFER CHAIN, REAR 34170A - PIN, STRAIGHT (FOR TRANSFER CHAIN CASE) 34170B - SEAL, OIL (FOR TRANSFER CHAIN CASE) 34170B - SEAL, OIL (FOR TRANSFER CHAIN CASE) 34170C - PLUG (FOR TRANSFER CHAIN CASE) 34170C - PLUG (FOR TRANSFER CHAIN CASE) 34170D - GASKET (FOR TRANSFER CHAIN CASE) 34170D - GASKET (FOR TRANSFER CHAIN CASE) 34180 - HOUSING ASSY, TRANSFER EXTENSION 34180B - PLUG, BREATHER (FOR TRANSFER EXTENSION HOUSING) 34182 - RECEIVER, TRANSFER EXTENSION HOUSING OIL 34303 - STRAINER SUB-ASSY, TRANSFER OIL 34780 - YOKE ASSY, FLANGE 34780 - YOKE ASSY, FLANGE 34780A - NUT (FOR FLANGE YOKE) 34780A - NUT (FOR FLANGE YOKE) 34780B - WASHER, PLATE (FOR FLANGE YOKE) 34780B - WASHER, PLATE (FOR FLANGE YOKE) 34780C - RING, O (FOR FLANGE YOKE) 34780C - RING, O (FOR FLANGE YOKE) 34780D - SEAL, OIL (FOR FLANGE YOKE) 34780D - SEAL, OIL (FOR FLANGE YOKE) 35148B - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CASE) 35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE) 35394B - MAGNET, OIL CLEANER (FOR TRANSFER) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
