TOYOTA HILUX 4RUNNER 4WD VZN130R-GKPSEQ / POWERTRAIN-CHASSIS / TRANSFER VALVE BODY VALVE LEVER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

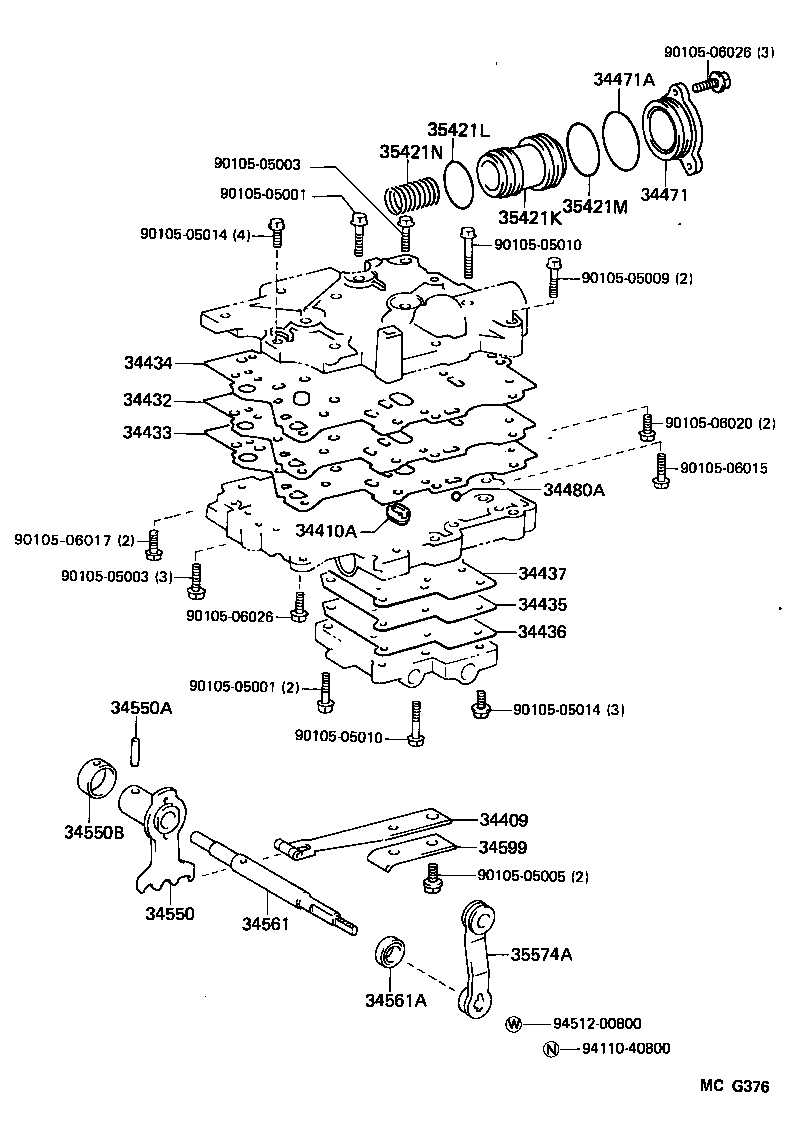

TRANSFER VALVE BODY VALVE LEVER

ILLUST NO. 1 OF 2(8908-9511)4FC

 HILUX 4RUNNER 4WD |  TRANSFER VALVE BODY VALVE LEVER 34409 - SPRING SUB-ASSY, TRANSFER MANUAL DETENT 34410A - STRAINER, OIL (FOR TRANSFER VALVE BODY) 34432 - PLATE, TRANSFER VALVE BODY, UPPER 34433 - GASKET, TRANSFER UPPER VALVE BODY, NO.1 34434 - GASKET, TRANSFER UPPER VALVE BODY, NO.2 34435 - PLATE, TRANSFER VALVE BODY, LOWER 34436 - GASKET, TRANSFER LOWER VALVE BODY, NO.1 34437 - GASKET, TRANSFER LOWER VALVE BODY, NO.2 34471 - COVER, LOW SPEED BRAKE ACCUMULATOR 34471A - RING, O (FOR LOW SPEED BRAKE ACCUMULATOR COVER) 34480A - BALL (FOR TRANSFER UPPER VALVE BODY) 34550 - LEVER ASSY, TRANSFER MANUAL VALVE 34550A - PIN, SLOTTED SPRING (FOR TRANSFER MANUAL VALVE LEVER) 34550B - SPACER (FOR TRANSFER MANUAL VALVE LEVER) 34561 - SHAFT, TRANSFER MANUAL VALVE LEVER 34561A - SEAL, OIL (FOR TRANSFER MANUAL VALVE LEVER SHAFT) 34599 - COVER, TRANSFER MANUAL DETENT SPRING 35421K - PISTON, ACCUMULATOR, NO.1 35421L - RING, O (FOR ACCUMULATOR, NO.1 PISTON INNER) 35421M - RING, O (F0R ACCUMULATOR, NO.1 PISTON OUTER) 35421N - SPRING, COMPRESSION (FOR ACCUMULATOR, NO.1 PISTON) 35574A - LEVER, TRANSFER CONTROL SHAFT  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
