TOYOTA LITEACE VAN WAGON CR27RV-MRBE / POWERTRAIN-CHASSIS / POWER STEERING TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER STEERING TUBE

(9201-9408)CR27..RHD

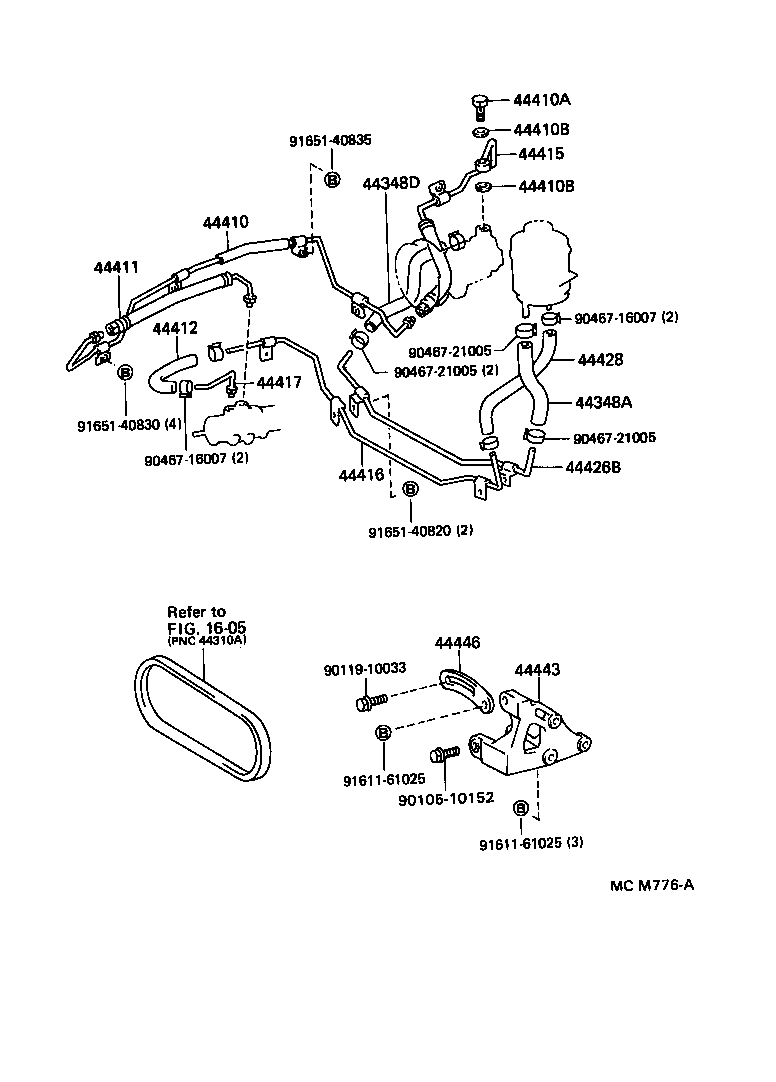

LITEACE VAN WAGON | POWER STEERING TUBE ** Refer Fig 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 44410 - TUBE ASSY, PRESSURE FEED 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44410B - GASKET(FOR PRESSURE FEED TUBE) 44411 - HOSE, PRESSURE FEED 44412 - HOSE, RETURN 44415 - HOSE, PRESSURE FEED, NO.2 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) 44417 - TUBE, RETURN, NO.2 44426B - TUBE, OIL RESERVOIR TO PUMP 44428 - HOSE, RETURN, NO.2 44443 - BRACKET, PUMP 44446 - STRUT, ADJUSTING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
