TOYOTA DYNA 200 BU65RD-MDTQ / POWERTRAIN-CHASSIS / POWER TAKE OFF OIL PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

POWER TAKE OFF OIL PUMP

(9109- )BU65..CBU

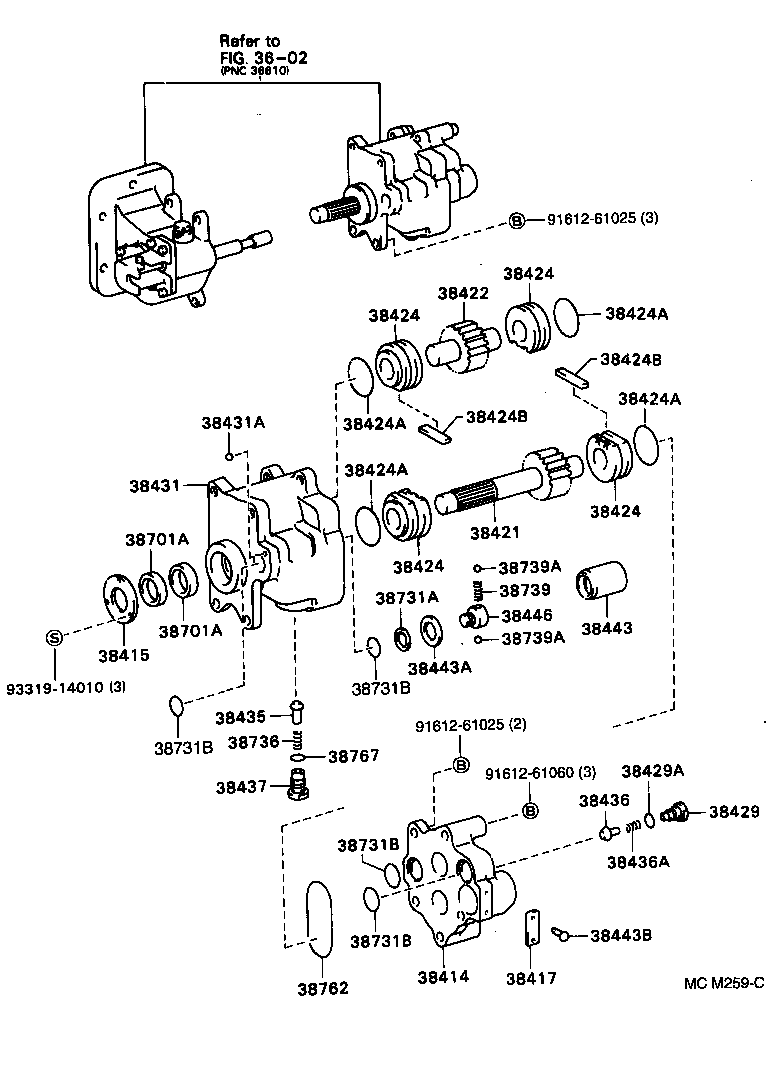

DYNA 200 | POWER TAKE OFF OIL PUMP ** Refer Fig 38414 - COVER, POWER OIL PUMP 38415 - COVER, POWER OIL PUMP SEAL 38417 - PLATE, POWER OIL PUMP NAME 38421 - GEAR, POWER OIL PUMP DRIVE 38422 - GEAR, POWER OIL PUMP FOLLOW 38424 - BUSH, POWER OIL PUMP INNER 38424 - BUSH, POWER OIL PUMP INNER 38424 - BUSH, POWER OIL PUMP INNER 38424 - BUSH, POWER OIL PUMP INNER 38424A - RING, O (FOR POWER OIL PUMP) 38424A - RING, O (FOR POWER OIL PUMP) 38424A - RING, O (FOR POWER OIL PUMP) 38424A - RING, O (FOR POWER OIL PUMP) 38424B - KEY, STRAIGHT (FOR POWER OIL PUMP) 38424B - KEY, STRAIGHT (FOR POWER OIL PUMP) 38429 - PLUG, POWER CONTROL CHECK VALVE NO.2 38429A - RING, O (POWER CONTROL CHECK VALVE NO.2 PLUG) 38431 - BODY, POWER CONTROL VALVE 38431A - BALL (FOR POWER CONTROL VALVE) 38435 - VALVE, POWER CONTROL CHECK, NO.1 38436 - VALVE, POWER CONTROL CHECK, NO.2 38436A - SPRING, COMPRESSION (FOR POWER CONTROL CHECK NO.2 VALVE) 38437 - PLUG, POWER CONTROL CHECK VALVE 38443 - SLEEVE, POWER CONTROL VALVE PLUNGER 38443A - WASHER, PLATE (FOR POWER CONTROL VALVE PLUNGER SLEEVE) 38443B - RIVET, ROUND (FOR POWER CONTROL VALVE PLUNGER SLEEVE) 38446 - STOPPER, POWER CONTROL DETENTION SPRING 38701A - SEAL, OIL (FOR OIL PUMP BODY) 38701A - SEAL, OIL (FOR OIL PUMP BODY) 38731A - RING, O (FOR PLUNGER NO.1) 38731B - RING, O (FOR PLUNGER NO.2) 38731B - RING, O (FOR PLUNGER NO.2) 38731B - RING, O (FOR PLUNGER NO.2) 38731B - RING, O (FOR PLUNGER NO.2) 38736 - SPRING, CHECK VALVE 38739 - SPRING, PLUNGER NEUTRAL INDICATING BALL 38739A - BALL, PLUNGER NEUTRAL INDICATING 38739A - BALL, PLUNGER NEUTRAL INDICATING 38762 - RING, O (FOR OIL PUMP INNER BUSH) 38767 - RING, O (FOR CHECK VALVE SPRING) ** Std Part ** Std Part ** Std Part ** Std Part
