TOYOTA HILUX 4RUNNER 4WD RN106L-PRMRE / TOOL-ENGINE-FUEL / MANIFOLD AIR INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

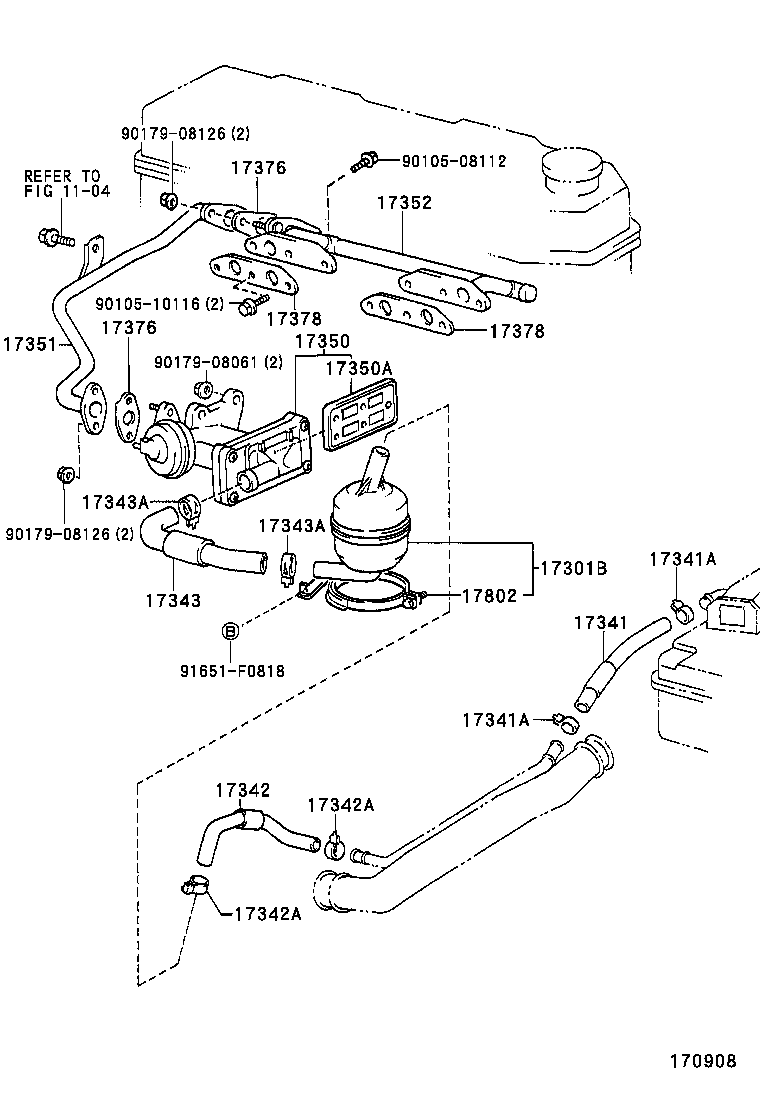

MANIFOLD AIR INJECTION SYSTEM

(9401-9408)22RE

HILUX 4RUNNER 4WD | MANIFOLD AIR INJECTION SYSTEM ** Refer Fig 17301B - SILENCER SUB-ASSY, AIR SUCTION 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) 17342 - HOSE, NO.2(FOR AIR INJECTION SYSTEM) 17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2) 17342A - CLAMP OR CLIP, NO.2(FOR AIR INJECTION SYSTEM HOSE, NO.2) 17343 - HOSE, NO.3(FOR AIR INJECTION SYSTEM) 17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3) 17343A - CLAMP OR CLIP, NO.3(FOR AIR INJECTION SYSTEM HOSE, NO.3) 17350 - VALVE ASSY, REED 17350A - VALVE SUB-ASSY, REED 17351 - MANIFOLD, AIR INJECTION 17352 - MANIFOLD, AIR INJECTION, NO.2 17376 - GASKET, AIR TUBE, NO.1 17376 - GASKET, AIR TUBE, NO.1 17378 - GASKET AIR TUBE, NO.3 17378 - GASKET AIR TUBE, NO.3 17802 - BRACKET SUB-ASSY, RESONATOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
