TOYOTA 4RUNNER RZN185L-GKMSK / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

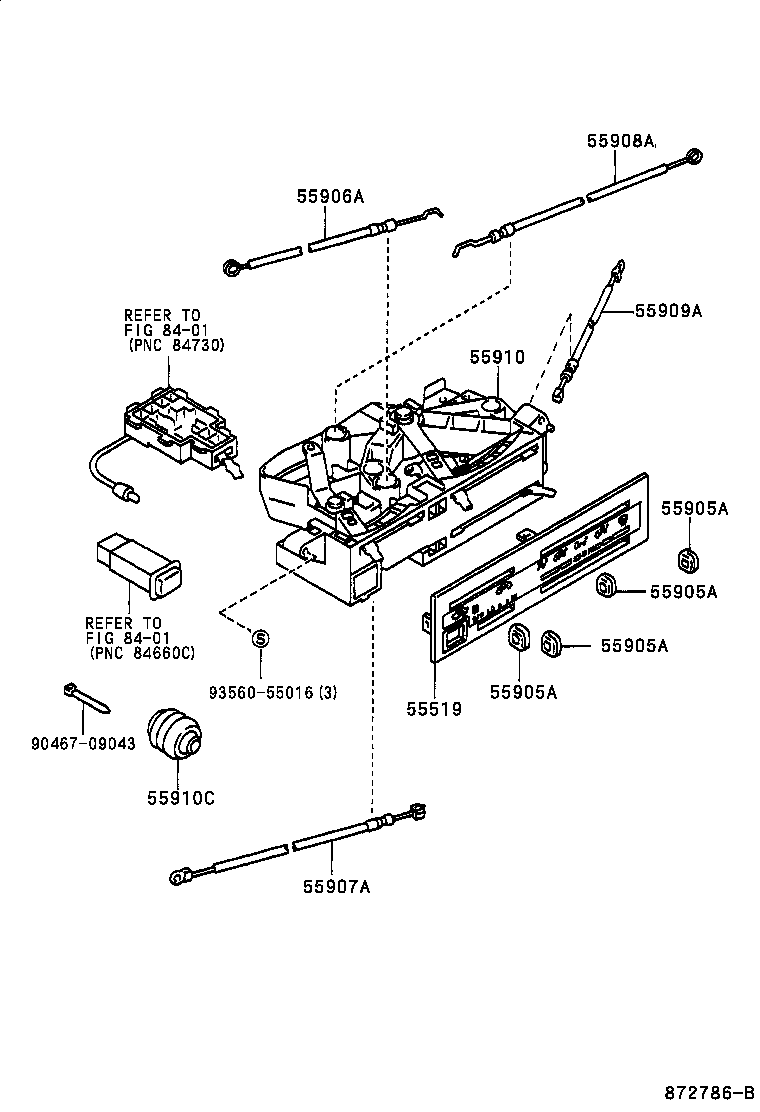

FRONT HEATER CONTROL ILLUST NO. 1 OF 3(9511-9708)

4RUNNER | HEATING AIR CONDITIONING CONTROL AIR DUCT 55519 - PLATE, HEATER CONTROL NAME 55905A - KNOB, HEATER CONTROL 55905A - KNOB, HEATER CONTROL 55905A - KNOB, HEATER CONTROL 55905A - KNOB, HEATER CONTROL 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR 55910C - GROMMET(FOR HEATER CONTROL CABLE) ** Refer Fig ** Refer Fig ** Std Part ** Std Part
