TOYOTA CAMRY JPP SED VCV10L-AEMNKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

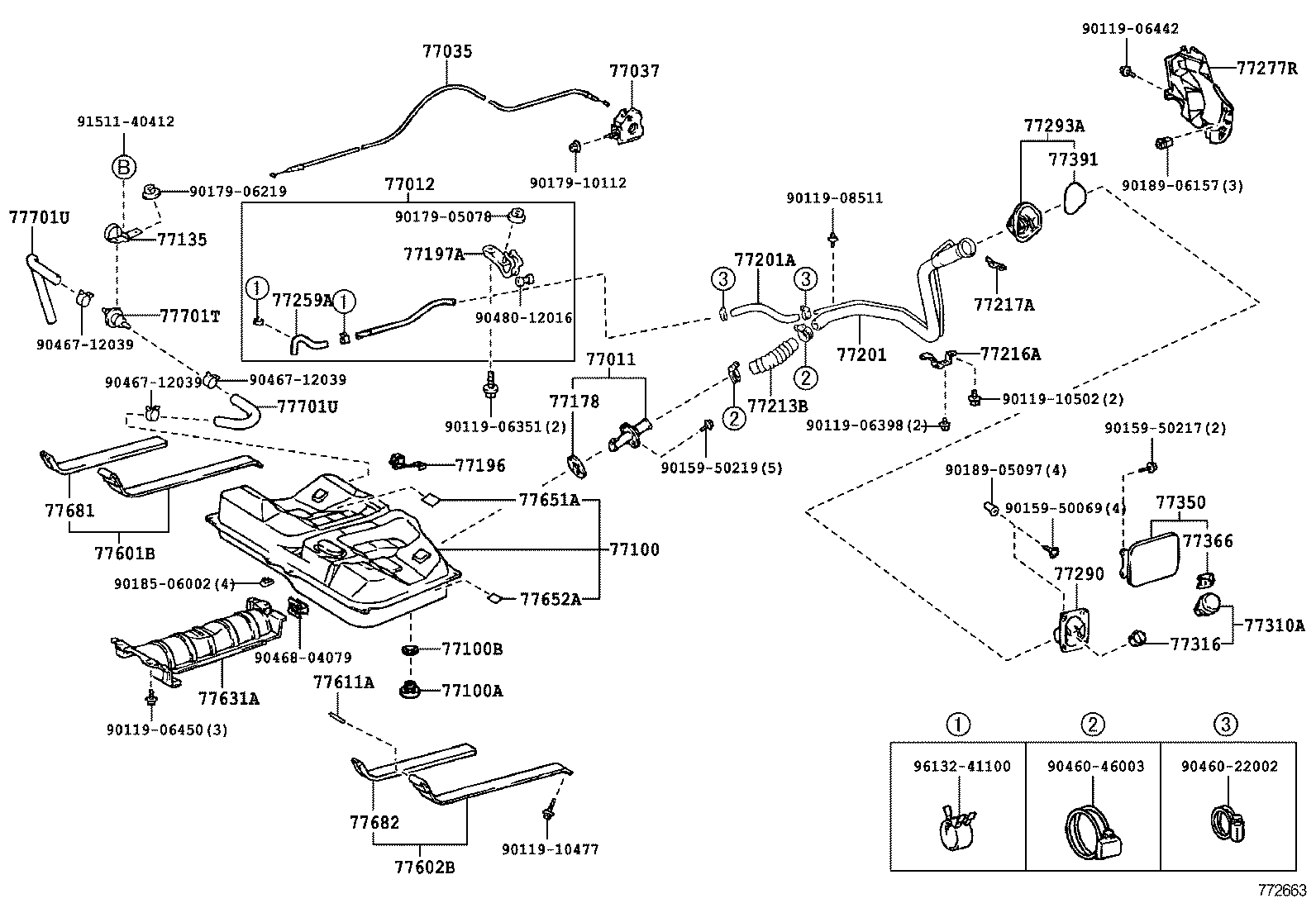

ILLUST NO. 1 OF 2(9208- )JPP

CAMRY JPP SED | FUEL TANK TUBE 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77135 - BRACKET, CHECK VALVE 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77213B - HOSE, FUEL TANK TO FILLER PIPE 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77259A - HOSE, FUEL(FOR BREATHER TUBE) 77277R - PROTECTOR, FUEL TANK FILLER PIPE 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77350 - LID ASSY, FUEL FILLER OPENING 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77391 - RING, FUEL INLET BOX 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH 77611A - PIN (FOR FUEL TANK BAND) 77631A - PROTECTOR, FUEL TANK, LOWER CENTER 77651A - CUSHION, FUEL TANK, NO.1 77652A - CUSHION, FUEL TANK, NO.2 77681 - SEAT, FUEL TANK BAND, RH 77682 - SEAT, FUEL TANK BAND, LH 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77701U - HOSE, FUEL (FOR CHECK VALVE) 77701U - HOSE, FUEL (FOR CHECK VALVE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
