TOYOTA CAMRY JPP SED VCV10L-AEMNKV / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

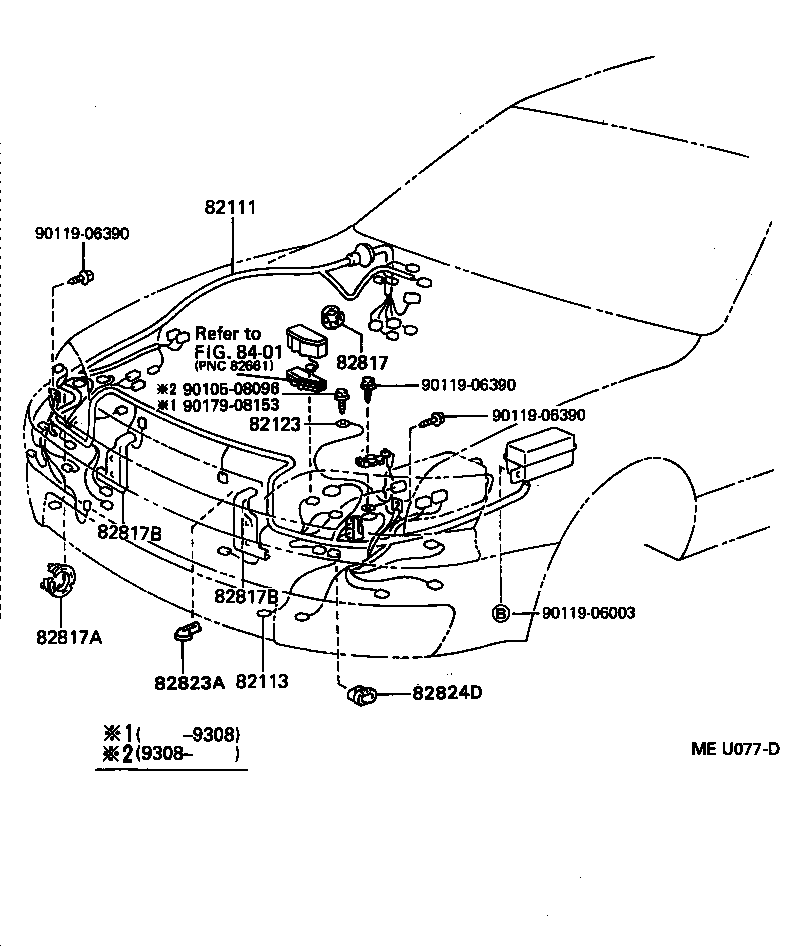

ENGINE ROOM WIRE ILLUST NO. 1 OF 9(9208- )JPP

 CAMRY JPP SED |  WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82113 - WIRE, ENGINE ROOM, NO.3 82123 - WIRE, ENGINE, NO.3 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817B - PROTECTOR, WIRING HARNESS, NO.3 82823A - CAP, TERMINAL, NO.2 82824D - CONNECTOR, WIRING HARNESS ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
