TOYOTA CAMRY JPP SED VCV10L-AEMNKV / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

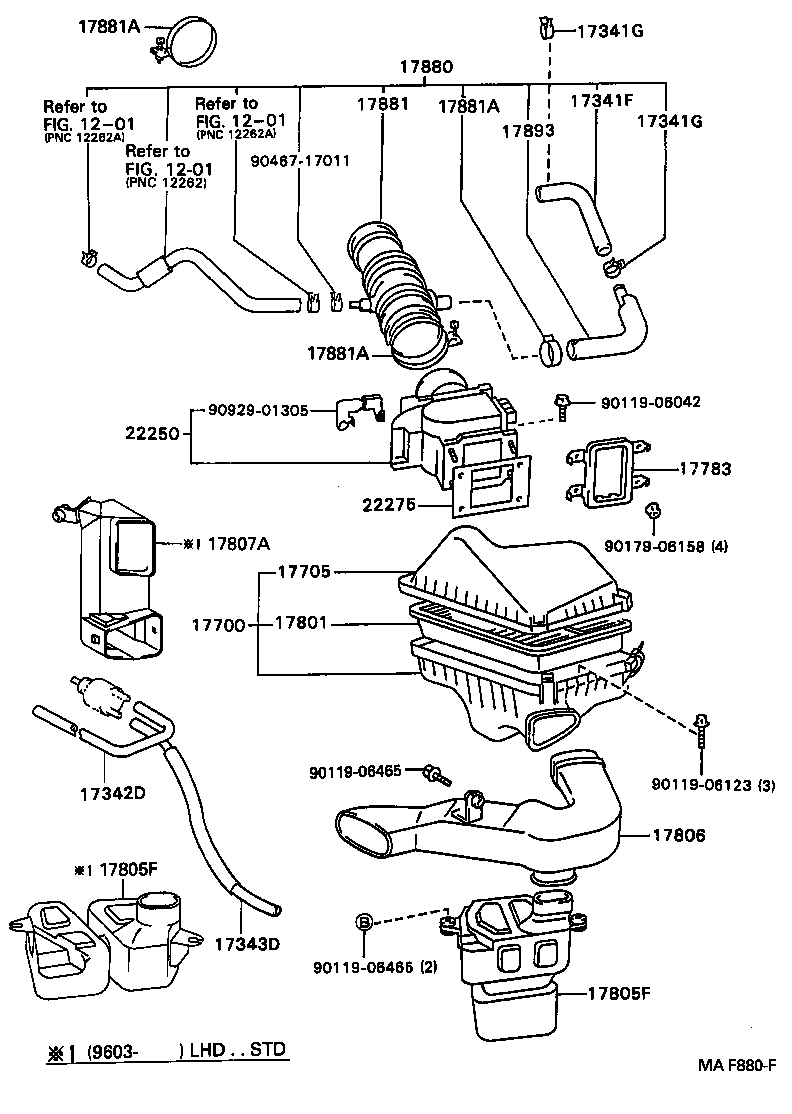

AIR CLEANER

(9208-9708)3VZFE..JPP

CAMRY JPP SED | AIR CLEANER ** Refer Fig ** Refer Fig ** Refer Fig 17341F - HOSE, AIR, NO.1 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) 17342D - HOSE, AIR, NO.2 17343D - HOSE, AIR, NO.3 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17783 - PLATE, AIR CLEANER BAFFLE 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17805F - RESONATOR SUB-ASSY, INTAKE AIR 17805F - RESONATOR SUB-ASSY, INTAKE AIR 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 17807A - CONNECTOR SUB-ASSY, INTAKE AIR, NO.3 17880 - HOSE ASSY, AIR CLEANER 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17893 - RESONATOR, INTAKE AIR 22250 - METER ASSY, INTAKE AIR FLOW 22275 - GASKET, AIR FLOW METER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
