TOYOTA CAMRY JPP SED VCV10L-AEPNKV / POWERTRAIN-CHASSIS / SHIFT LEVER RETAINER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SHIFT LEVER RETAINER

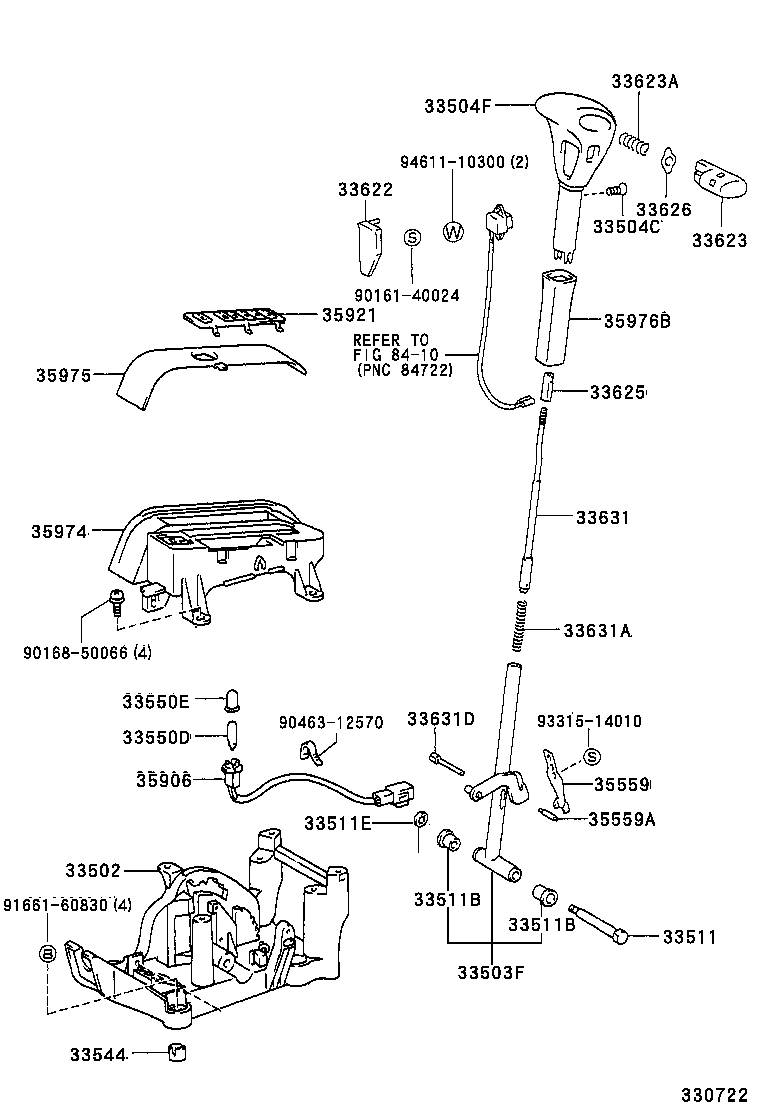

ILLUST NO. 1 OF 2(9208- )JPP..ATM

CAMRY JPP SED | SHIFT LEVER RETAINER 33502 - PLATE SUB-ASSY, SHIFT LEVER 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) 33504F - KNOB SUB-ASSY, SHIFT LEVER 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) 33511B - BUSH (FOR CONTROL SHAFT) 33511B - BUSH (FOR CONTROL SHAFT) 33511E - RING, SNAP (FOR FLOOR SHIFT CONTROL SHAFT) 33544 - INSERT, SHIFT LEVER, NO.1 33550D - BULB, POSITION INDICATOR LAMP 33550E - CAP, POSITION INDICATOR LAMP 33622 - COVER, SHIFT LEVER KNOB, NO.1 33623 - BUTTON, SHIFT LEVER KNOB 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) 33625 - SLEEVE, SHIFT LEVER KNOB 33626 - STOPPER, SHIFT LEVER BUTTON 33631 - ROD, DETENT 33631A - SPRING, COMPRESSION (FOR DETENT ROD) 33631D - PIN, GROOVED (FOR DETENT ROD) 35559 - SPRING, MANUAL DETENT 35559A - PIN (FOR MANUAL DETENT SPRING) 35906 - WIRE SUB-ASSY, INDICATOR LAMP 35921 - PLATE, CONTROL POSITION INDICATOR 35974 - HOUSING, POSITION INDICATOR, LOWER 35975 - COVER, SLIDE (FOR POSITION INDICATOR) 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
