TOYOTA DYNA200 BU112L-TDMMSU3 / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SPRING SHOCK ABSORBER

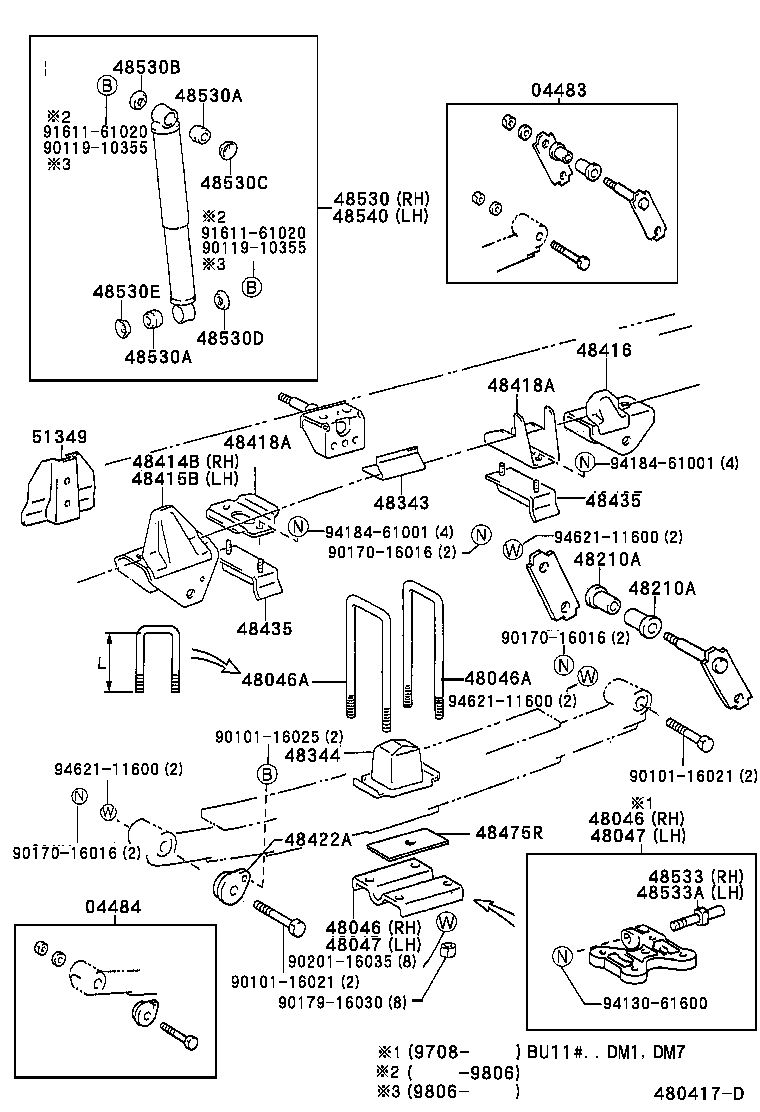

ILLUST NO. 1 OF 2(9505- )BU11#

DYNA200 | REAR SPRING SHOCK ABSORBER 04483 - SHACKLE KIT, REAR SPRING 04484 - PIN KIT, REAR SPRING 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH 48046A - BOLT, U(FOR REAR SPRING) 48046A - BOLT, U(FOR REAR SPRING) 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) 48343 - BRACKET, REAR AXLE CUSHION 48344 - STOPPER, BUMPER, REAR 48414B - BRACKET, SPRING, NO.3 RH 48415B - BRACKET, SPRING, NO.3 LH 48416 - BRACKET, SPRING, NO.4 48418A - BRACKET, HELPER SPRING, FRONT 48418A - BRACKET, HELPER SPRING, FRONT 48422A - SUPPORT, REAR SPRING PIN 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 48475R - PLATE, DISTANCE(FOR REAR) 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530A - BUSH(FOR REAR SHOCK ABSORBER) 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 48533 - PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH 48533A - PIN, REAR SHOCK ABSORBER LOWER PIVOT, LH 48540 - ABSORBER ASSY, SHOCK, REAR LH 51349 - REINFORCEMENT, REAR SPRING FRONT BRACKET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
