TOYOTA HILUX 2WD RN85L-TRMRE / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

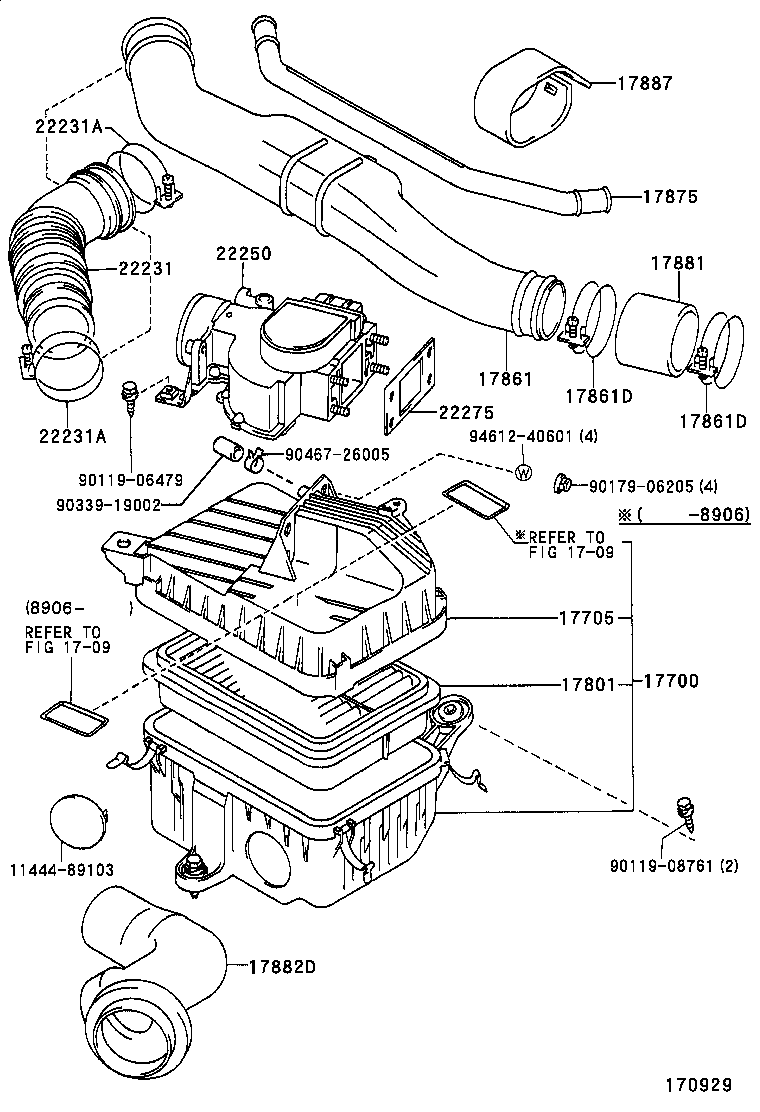

AIR CLEANER

(9401-9511)22RE ; (9709-9710)22RE..IV3

HILUX 2WD | AIR CLEANER ** Std Part ** Refer Fig ** Refer Fig 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17861 - CONNECTOR, INTAKE AIR 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) 17861D - CLAMP(FOR INTAKE AIR CONNECTOR) 17875 - PIPE, INTAKE AIR CONNECTOR 17881 - HOSE, AIR CLEANER, NO.1 17882D - HOSE, COOL AIR INTAKE 17887 - COVER, AIR CLEANER HOSE 22231 - HOSE, THROTTLE BODY 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) 22231A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) 22250 - METER ASSY, INTAKE AIR FLOW 22275 - GASKET, AIR FLOW METER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
