TOYOTA LAND CRUISER 80 HDJ80R-GNMNWQ / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

(9501-9801)1HDFT

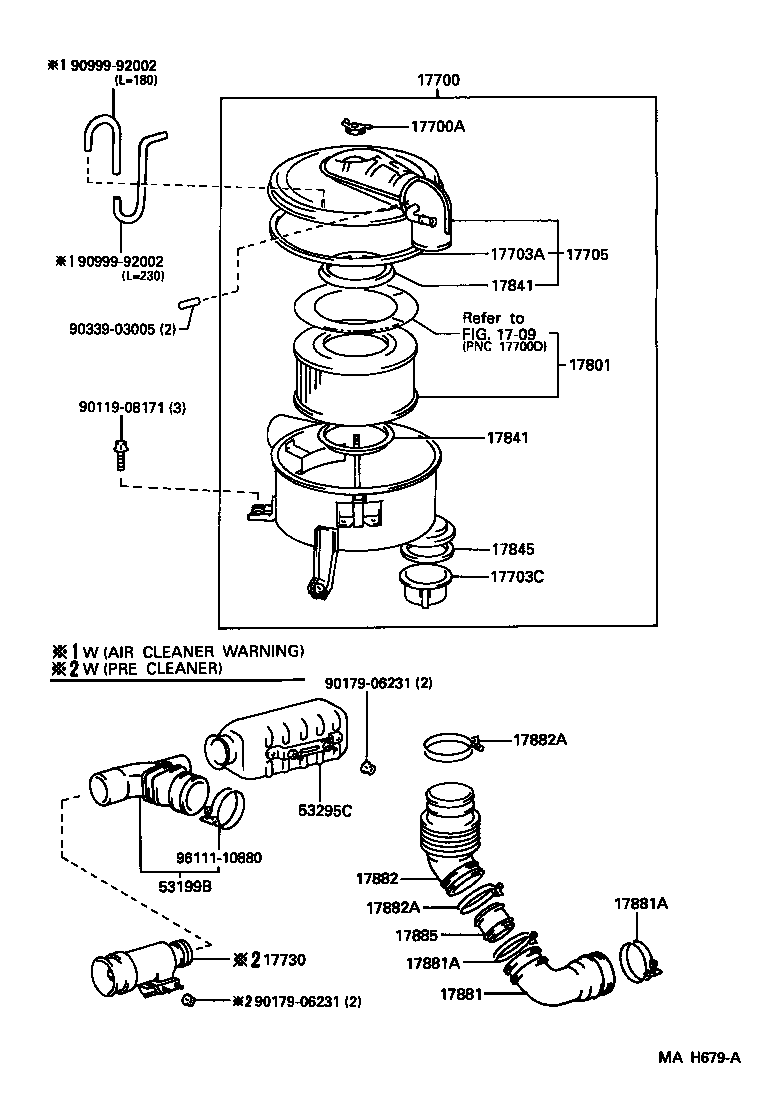

LAND CRUISER 80 | AIR CLEANER ** Refer Fig 17700 - CLEANER ASSY, AIR 17700A - NUT, WING(FOR AIR CLEANER) 17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE) 17703C - CAP SUB-ASSY, DUST 17705 - CAP SUB-ASSY, AIR CLEANER 17730 - PRECLEANER ASSY, AIR W/HOSE 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17841 - GASKET, FILTER ELEMENT 17841 - GASKET, FILTER ELEMENT 17845 - GASKET, AIR CLEANER CAP 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17885 - PIPE, AIR CLEANER 53199B - DUCT SUB-ASSY, COOL AIR INTAKE 53295C - SILENCER, COOL AIR INTAKE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
