TOYOTA SOLUNA AL50R-AEMDK / BODY / LUGGAGE COMPARTMENT DOOR LOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

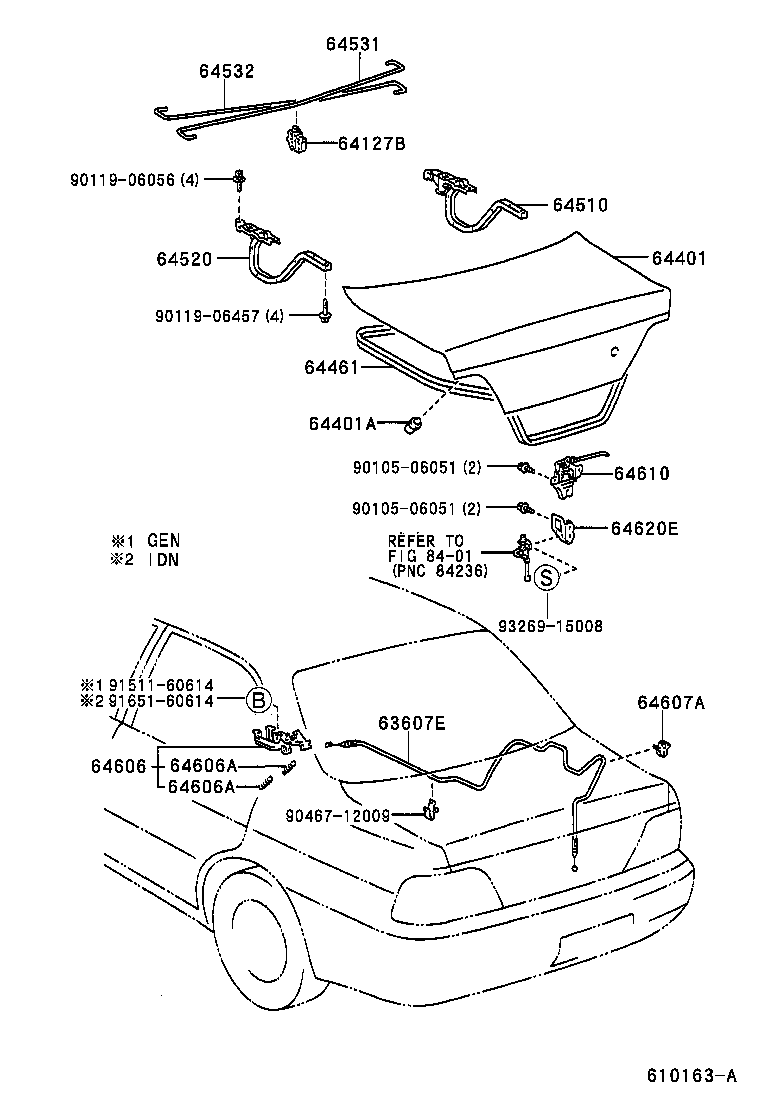

LUGGAGE COMPARTMENT DOOR LOCK

(9612- )

SOLUNA | LUGGAGE COMPARTMENT DOOR LOCK 63607E - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
