TOYOTA SOLUNA AL50R-AEMDK / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

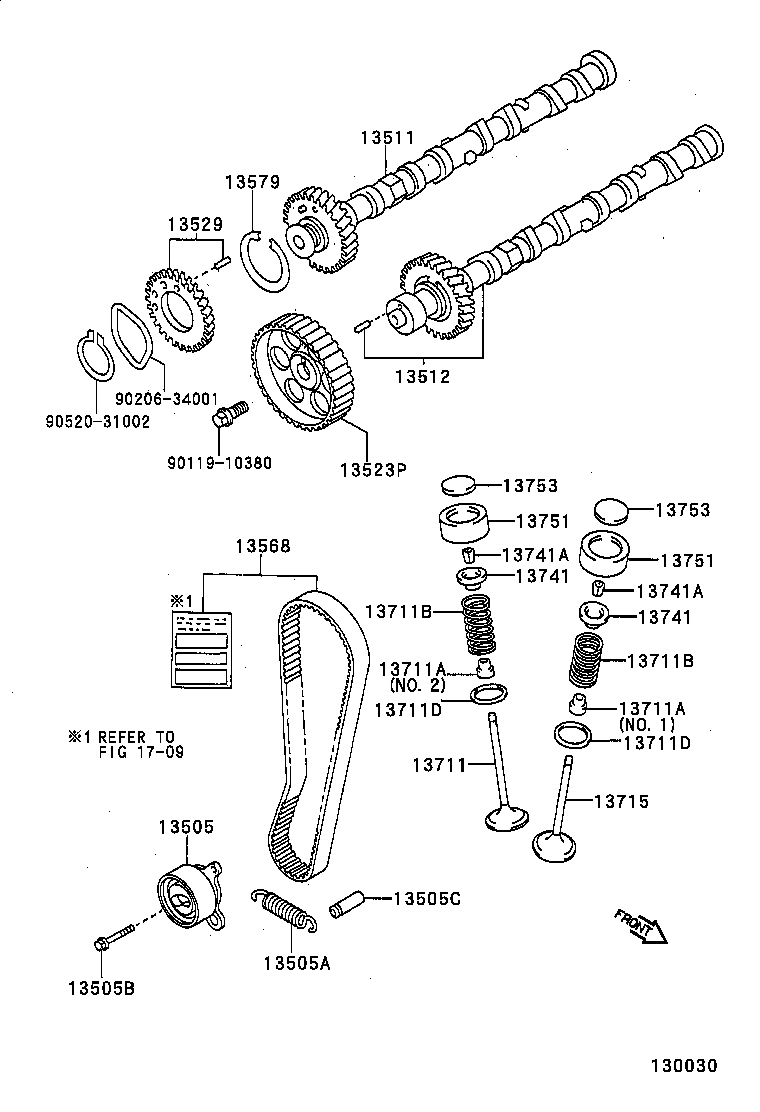

CAMSHAFT VALVE

(9612- )

SOLUNA | CAMSHAFT VALVE 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 13505A - SPRING, TENSION(FOR IDLER) 13505B - BOLT, FLANGE (FOR IDLER) 13505C - PIN(FOR IDLER SPRING TENSION) 13511 - CAMSHAFT 13512 - CAMSHAFT, NO.2 13523P - PULLEY, CAMSHAFT TIMING 13529 - GEAR, CAMSHAFT SUB 13568 - BELT, TIMING 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) 13715 - VALVE, EXHAUST 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13751 - LIFTER, VALVE 13751 - LIFTER, VALVE 13753 - SHIM, VALVE ADJUSTING 13753 - SHIM, VALVE ADJUSTING ** Refer Fig ** Std Part ** Std Part ** Std Part
