TOYOTA COASTER BB50L-ZRFRWW1 / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

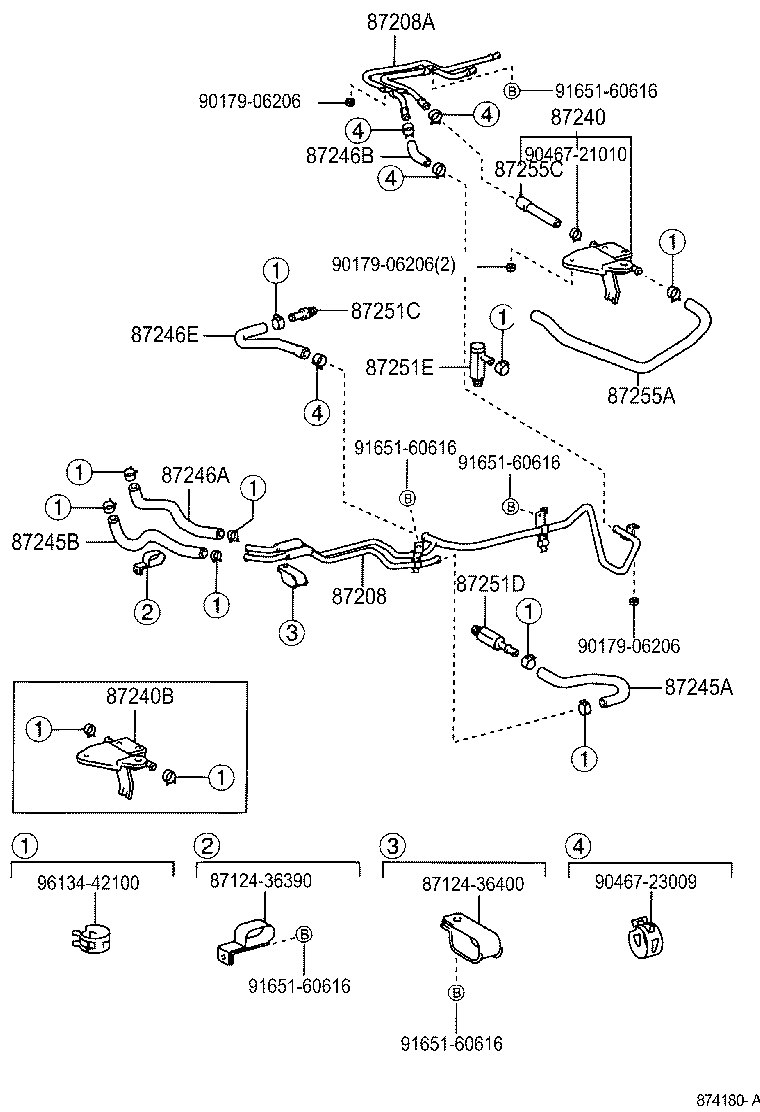

HEATING AIR CONDITIONING WATER PIPING

FRONT ILLUST NO. 1 OF 3(9907- )LHD..IV..6F..TD

COASTER | HEATING AIR CONDITIONING WATER PIPING ** Std Part ** Std Part 87208 - PIPE SUB-ASSY, HEATER WATER 87208A - PIPE SUB-ASSY, HEATER WATER, A 87240 - VALVE ASSY, HEATER WATER 87240B - VALVE ASSY, HEATER WATER, NO.2 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87246A - HOSE, HEATER WATER, OUTLET A 87246B - HOSE, HEATER WATER, OUTLET B 87246E - HOSE, HEATER WATER, OUTLET E 87251C - JOINT, WATER HOSE THROUGH 87251D - JOINT, WATER, NO.1 87251E - JOINT, WATER, NO.2 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255C - HOSE, REAR HEATER WATER INLET, C ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
