TOYOTA CROWN JZS175R-AEPQF / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

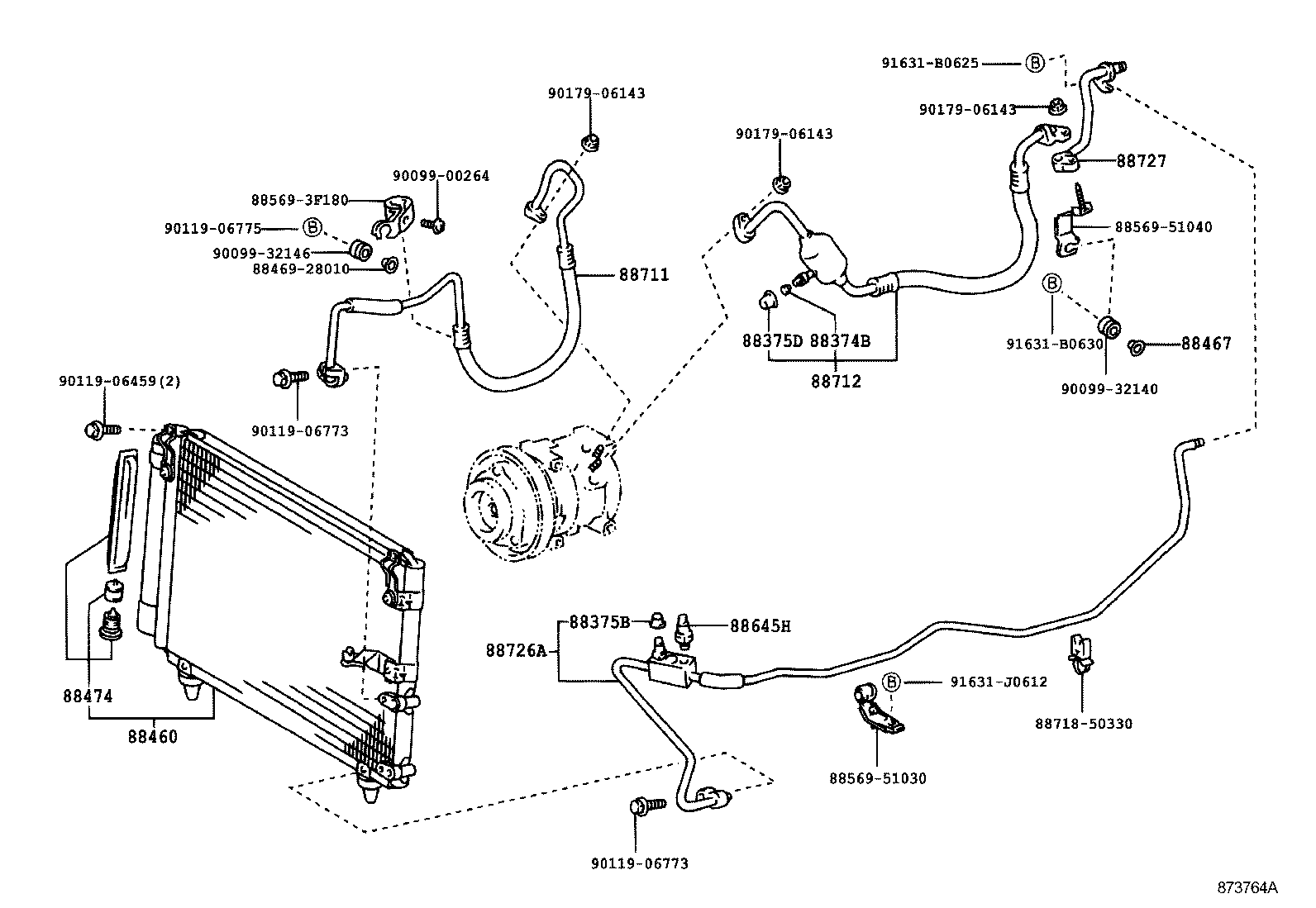

FRONT ILLUST NO. 1 OF 3(9909-0108)

 CROWN |  HEATING AIR CONDITIONING COOLER PIPING 88374B - VALVE, SERVICE, NO.1 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88467 - CUSHION, COOLER CONDENSER, NO.1  ** Std Part 88474 - DRYER, COOLER  ** Std Part  ** Std Part  ** Std Part 88645H - SWITCH, PRESSURE NO.1 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1  ** Std Part 88726A - PIPE, COOLER REFRIGERANT LIQUID, A 88727 - TUBE, SUCTION, NO.2  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
