TOYOTA LAND CRUISER 100 105 UZJ100R-GNPEKQ / TOOL-ENGINE-FUEL / WATER PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

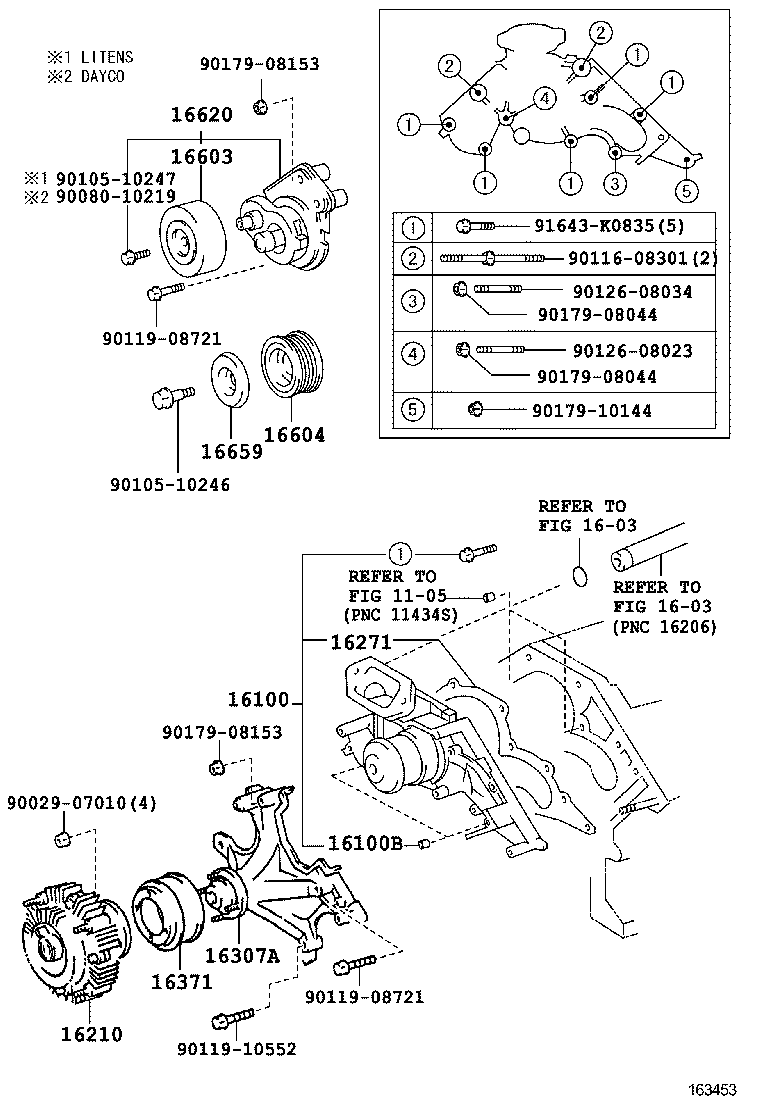

WATER PUMP

(9801- )2UZFE

LAND CRUISER 100 105 | WATER PUMP ** Refer Fig ** Refer Fig ** Refer Fig 16100 - PUMP ASSY, ENGINE WATER 16100B - PIN, RING(FOR WATER PUMP SET) 16210 - COUPLING ASSY, FLUID 16271 - GASKET, WATER PUMP 16307A - BRACKET SUB-ASSY, FAN 16371 - PULLEY, FAN 16603 - PULLEY SUB-ASSY, IDLER, NO.1 16604 - PULLEY SUB-ASSY, IDLER, NO.2 16620 - TENSIONER ASSY, V-RIBBED BELT 16659 - PLATE, IDLER PULLEY COVER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
