TOYOTA SPACIO AE111R-FPPEK / BODY / FRONT FENDER APRON DASH PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

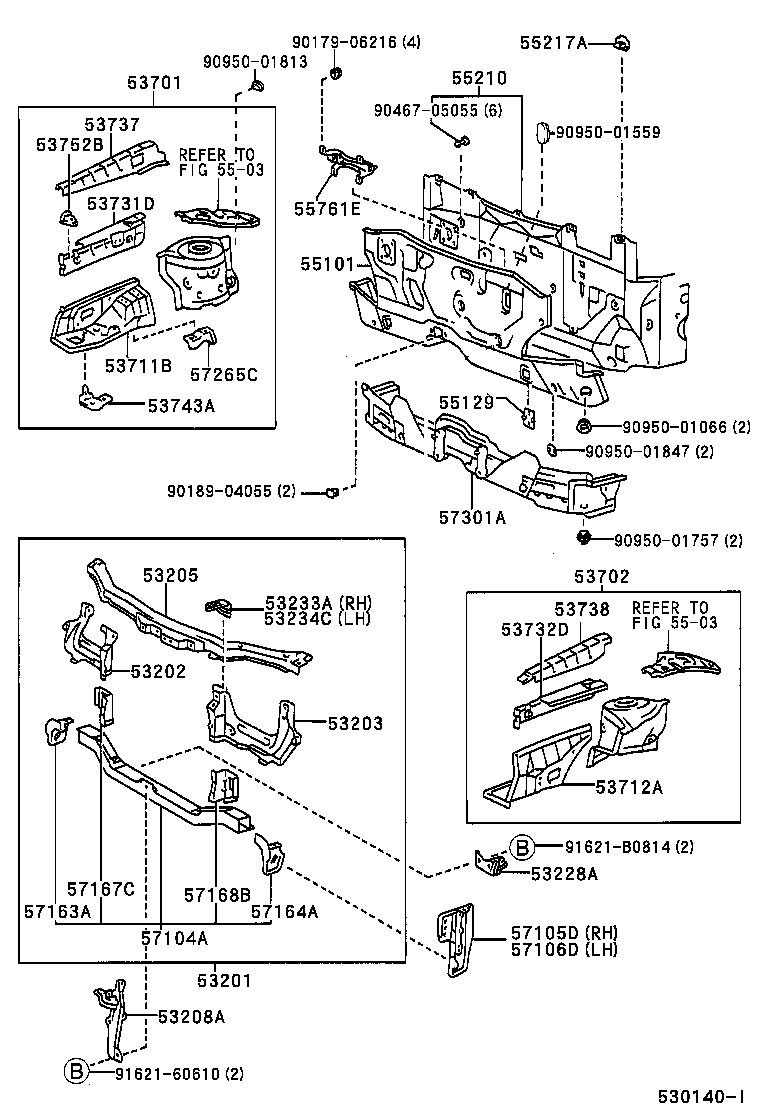

FRONT FENDER APRON DASH PANEL

(9805- )

SPACIO | FRONT FENDER APRON DASH PANEL 53201 - SUPPORT SUB-ASSY, RADIATOR 53202 - SUPPORT SUB-ASSY, RADIATOR, RH 53203 - SUPPORT SUB-ASSY, RADIATOR, LH 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER 53208A - SUPPORT SUB-ASSY, HOOD LOCK 53228A - BRACKET, RADIATOR MOUNTING, LOWER NO.1 53233A - BRACKET, HEADLAMP, NO.1 RH 53234C - BRACKET, HEADLAMP, NO.1 LH 53701 - APRON SUB-ASSY, FRONT FENDER, RH 53702 - APRON SUB-ASSY, FRONT FENDER, LH 53711B - APRON, FRONT FENDER, FRONT RH 53712A - APRON, FRONT FENDER, W/SUPPORT, FRONT LH 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH 53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH 53752B - BRACKET, WASHER TANK MOUNTING ** Refer Fig ** Refer Fig 55101 - PANEL SUB-ASSY, DASH 55129 - COVER, DASH PANEL HOLE 55210 - INSULATOR ASSY, DASH PANEL 55217A - RETAINER, DASH PANEL SILENCER 55761E - BRACKET, HEATER MOUNTING 57104A - MEMBER SUB-ASSY, FRONT CROSS 57105D - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH 57106D - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH 57163A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 RH 57164A - REINFORCEMENT, FRONT CROSSMEMBER, NO.1 LH 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH 57265C - BRACKET, ENGINE MOUNTING, RH 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
