TOYOTA SPACIO AE111R-FPPEK / BODY / FLOOR SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

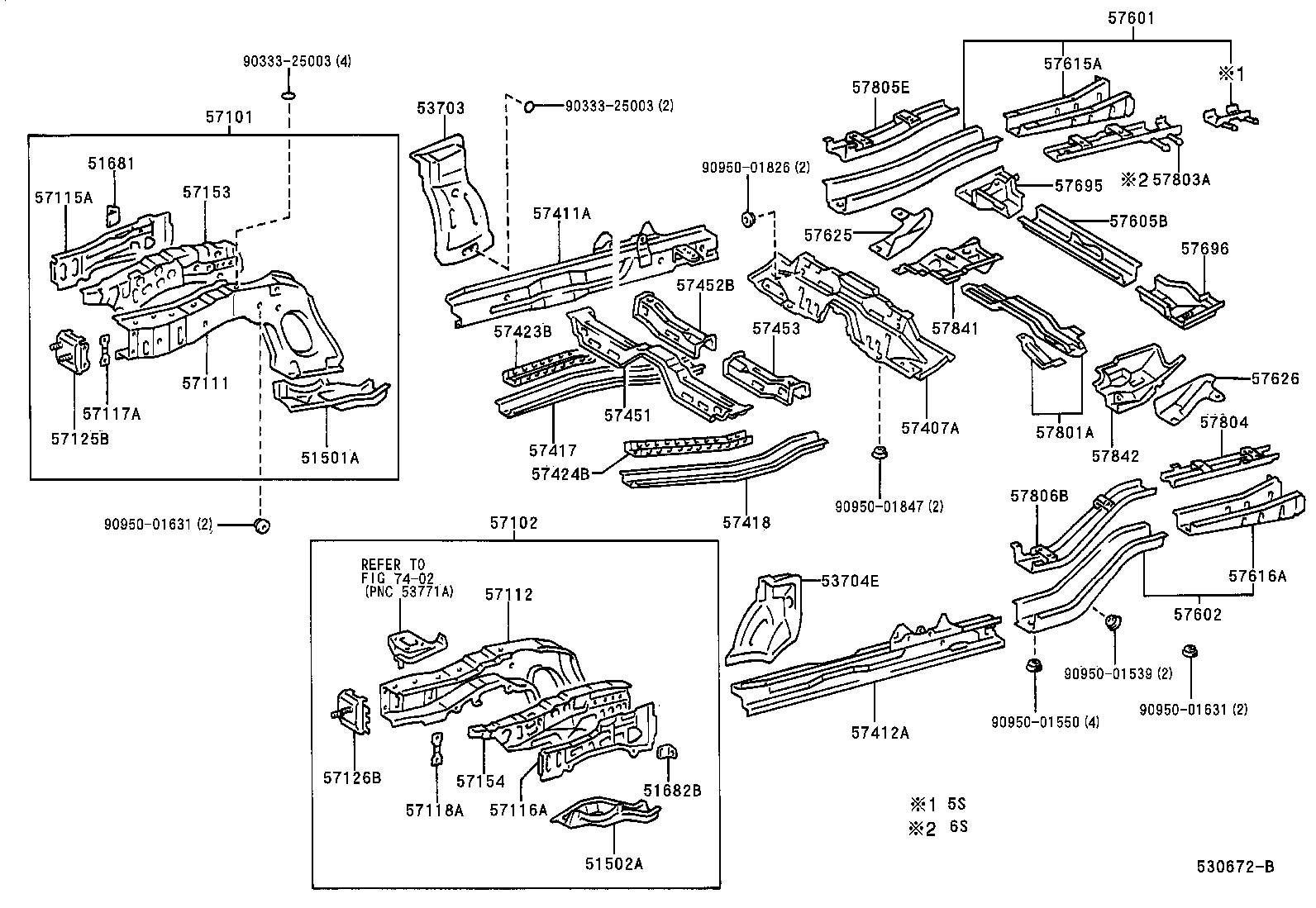

FLOOR SIDE MEMBER

(9805- )

SPACIO | FLOOR SIDE MEMBER 51501A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, RH 51502A - REINFORCEMENT SUB-ASSY, FRONT SUSPENSION MEMBER, LH 51681 - BRACKET, FLEXIBLE HOSE 51682B - BRACKET, FLEXIBLE HOSE, LH 53703 - APRON SUB-ASSY, FRONT FENDER, REAR RH 53704E - APRON SUB-ASSY, FRONT FENDER, REAR LH 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH 57111 - MEMBER, FRONT SIDE, RH 57112 - MEMBER, FRONT SIDE, LH 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH 57117A - REINFORCEMENT, FRONT BUMPER MOUNTING 57118A - REINFORCEMENT, FRONT BUMPER MOUNTING, LH 57125B - REINFORCEMENT, FRONT SIDE MEMBER, RH 57126B - REINFORCEMENT, FRONT SIDE MEMBER, LH 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS 57411A - MEMBER, FLOOR SIDE, INNER RH 57412A - MEMBER, FLOOR SIDE, INNER LH 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH 57423B - REINFORCEMENT, FRONT FLOOR UNDER, INNER RH 57424B - REINFORCEMENT, FRONT FLOOR UNDER, INNER LH 57451 - MEMBER, FRONT FLOOR CROSS 57452B - MEMBER, FRONT FLOOR CROSS, NO.2 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 57615A - MEMBER, REAR FLOOR SIDE, REAR RH 57616A - MEMBER, REAR FLOOR SIDE, REAR LH 57625 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, RH 57626 - REINFORCEMENT, REAR FLOOR SIDE MEMBER, LH 57695 - EXTENSION, REAR FLOOR CROSS REAR SIDE, RH 57696 - EXTENSION, REAR FLOOR CROSS REAR SIDE, LH 57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH 57805E - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH 57806B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH 57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH 57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
