TOYOTA SPACIO AE111R-FPPEK / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

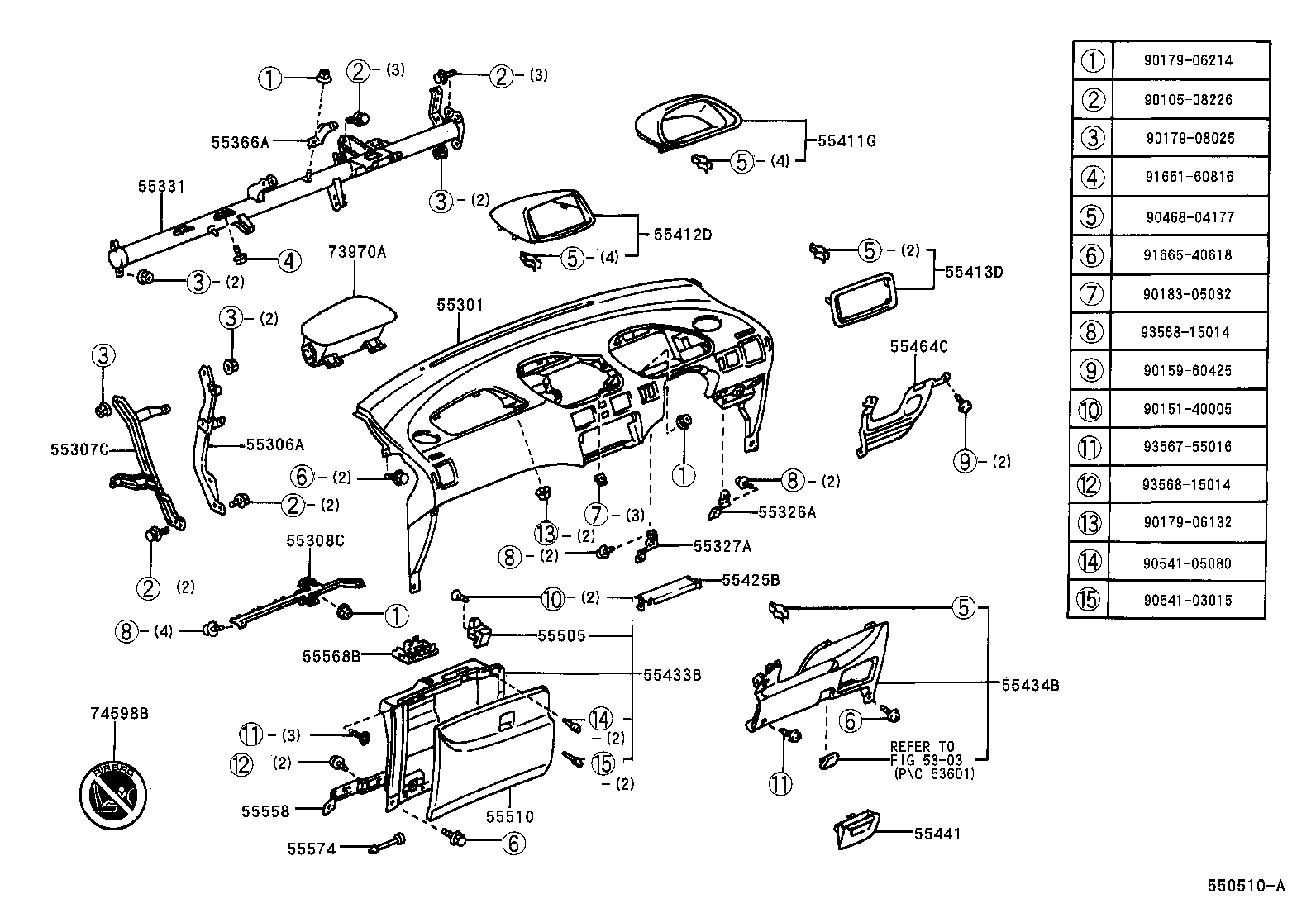

ILLUST NO. 1 OF 2(9805- )

SPACIO | INSTRUMENT PANEL GLOVE COMPARTMENT ** Refer Fig 55301 - PANEL SUB-ASSY, INSTRUMENT 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER 55326A - STAY, INSTRUMENT PANEL, NO.1 55327A - STAY, INSTRUMENT PANEL, NO.2 55331 - REINFORCEMENT, INSTRUMENT PANEL 55366A - BRACKET, RADIO MOUNTING, NO.1 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER 55425B - REINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER 55441 - BOX, INSTRUMENT PANEL 55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR 55510 - DOOR ASSY, GLOVE COMPARTMENT 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR 55568B - PLATE, GLOVE COMPARTMENT DOOR FINISH 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER 74598B - LABEL, PASSENGER AIR BAG CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
