TOYOTA SPACIO AE111R-FWPEK / POWERTRAIN-CHASSIS / VANE PUMP RESERVOIR POWER STEERING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VANE PUMP RESERVOIR POWER STEERING

(9805- )

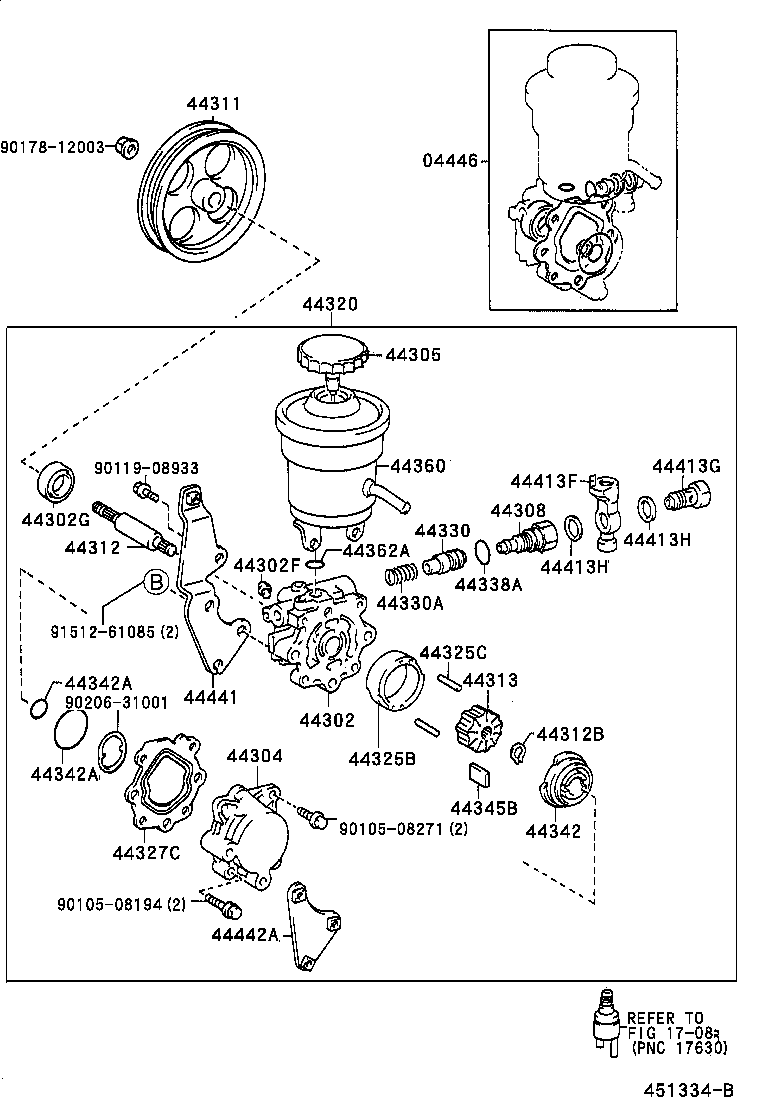

SPACIO | VANE PUMP RESERVOIR POWER STEERING 04446 - GASKET KIT, POWER STEERING PUMP ** Refer Fig 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR 44308 - UNION SUB-ASSY, PRESSURE PORT 44311 - PULLEY, VANE PUMP 44312 - SHAFT, VANE PUMP 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) 44313 - ROTOR, VANE PUMP 44320 - PUMP ASSY, VANE 44325B - RING, VANE PUMP CAM 44325C - PIN, STRAIGHT(FOR VANE PUMP CAM RING) 44327C - GASKET, VANE PUMP HOUSING 44330 - VALVE ASSY, FLOW CONTROL 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) 44338A - RING, O(FOR PRESSURE PORT UNION) 44342 - PLATE, VANE PUMP SIDE, REAR 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) 44345B - PLATE, VANE PUMP 44360 - RESERVOIR ASSY, VANE PUMP OIL 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) 44413F - TUBE, PRESSURE FEED, NO.2 44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2) 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) 44441 - BRACKET, PUMP, FRONT 44442A - BRACKET, VANE PUMP, REAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
