TOYOTA AVALON MCX10R-BEPEKQ / POWERTRAIN-CHASSIS / STEERING COLUMN SHAFT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

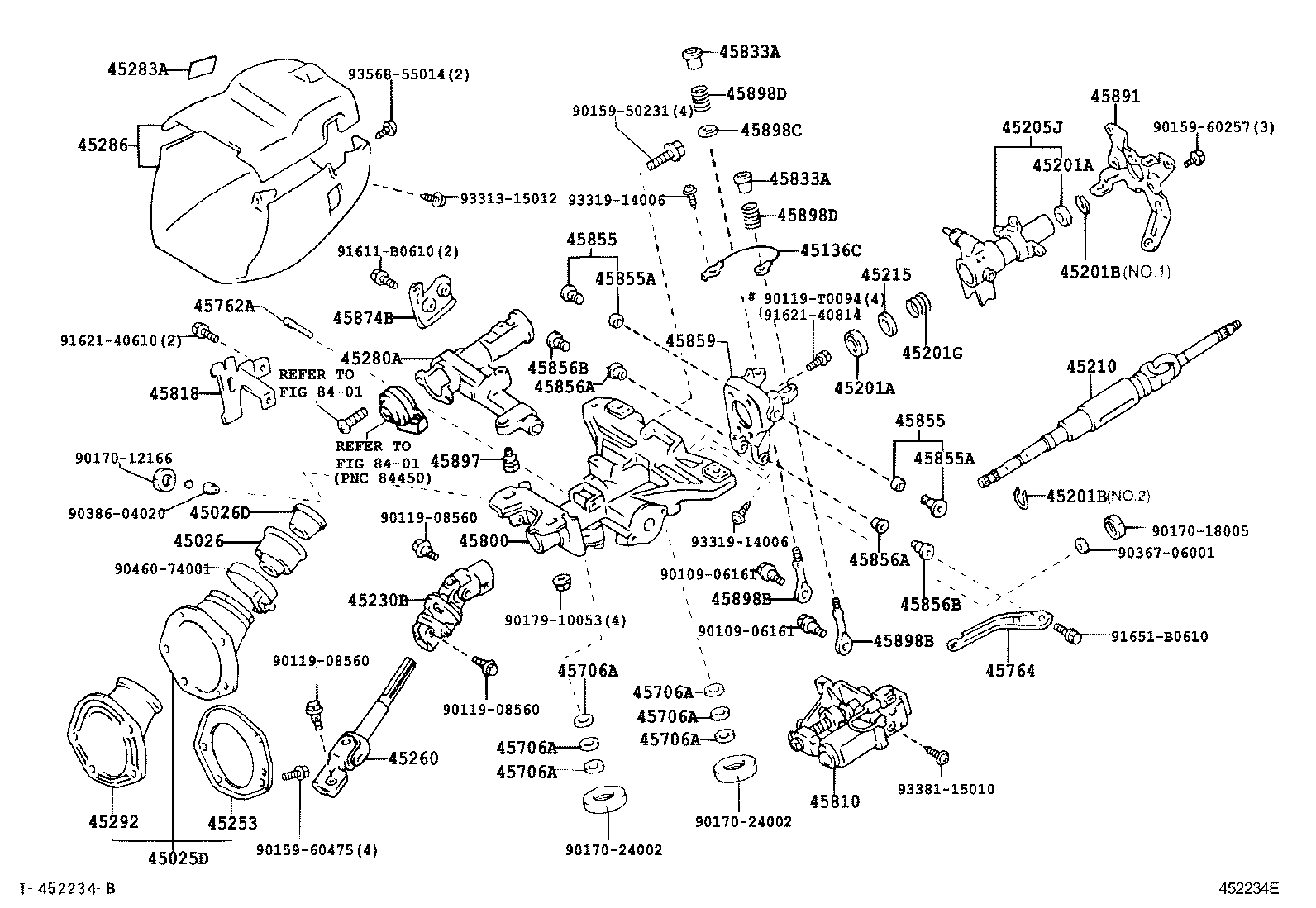

STEERING COLUMN SHAFT

(0004- )GD

AVALON | STEERING COLUMN SHAFT 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 45026D - COVER SUB-ASSY, STEERING COLUMN HOLE 45136C - CABLE, BOND(FOR HORN EARTH) 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201A - BEARING(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER 45210 - SHAFT ASSY, STEERING MAIN 45215 - COLLAR, MAIN SHAFT BEARING THRUST 45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL 45253 - COVER, STEERING COLUMN HOLE 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 45280A - BRACKET ASSY, STEERING COLUMN, UPPER 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION 45286 - COVER, STEERING COLUMN 45292 - SEAL, MAIN SHAFT LOWER DUST 45706A - WASHER, CONICAL SPRING 45706A - WASHER, CONICAL SPRING 45706A - WASHER, CONICAL SPRING 45706A - WASHER, CONICAL SPRING 45706A - WASHER, CONICAL SPRING 45706A - WASHER, CONICAL SPRING 45762A - PIN, W/HEAD 45764 - PLATE, TELESCOPIC POSITION SENSOR 45800 - GEAR ASSY, TELESCOPIC STEERING, W/MOTOR 45810 - GEAR ASSY, TILT STEERING, W/MOTOR 45818 - BRACKET, CONNECTOR 45833A - NUT, SUPPORT STOPPER 45833A - NUT, SUPPORT STOPPER 45855 - BOLT, TILT STEERING, NO.1 45855 - BOLT, TILT STEERING, NO.1 45855A - BUSH(FOR TILT STEERING BOLT NO.1) 45855A - BUSH(FOR TILT STEERING BOLT NO.1) 45856A - BUSH(FOR TILT STEERING BOLT NO.2) 45856A - BUSH(FOR TILT STEERING BOLT NO.2) 45856B - SHAFT, T1LT STEERING, NO.2 45856B - SHAFT, T1LT STEERING, NO.2 45859 - SUPPORT, TILT STEERING HOUSING 45874B - PROTECTOR, STEERING COLUMN, NO.1 45891 - BRACKET, TURN SIGNAL 45897 - BOLT, STEERING LOCK SET 45898B - BOLT, TILT STEERING SUPPORT STOPPER 45898B - BOLT, TILT STEERING SUPPORT STOPPER 45898C - SPACER(FOR TILT STEERING SUPPORT STOPPER BOLT) 45898D - SPRING(FOR TILT STEERING SUPPORT STOPPER BOLT) 45898D - SPRING(FOR TILT STEERING SUPPORT STOPPER BOLT) ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
