TOYOTA CAMRY ACV31L-JEPDKR / ELECTRICAL / HEATING AIR CONDITIONING COOLER UNIT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER UNIT

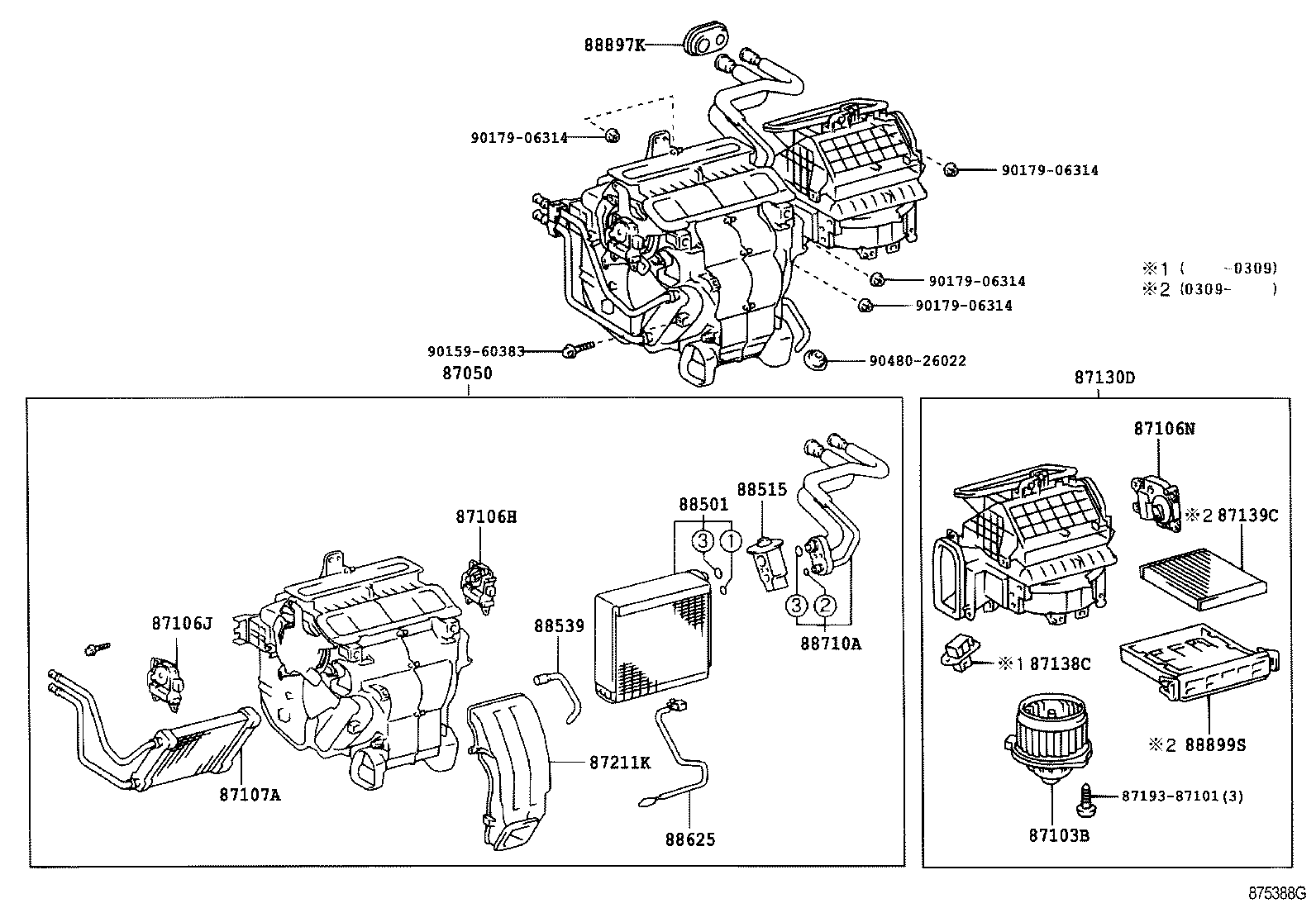

ILLUST NO. 1 OF 2(0203-0404)20J

CAMRY | HEATING AIR CONDITIONING COOLER UNIT 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION) 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87130D - BLOWER ASSY 87138C - RESISTOR, BLOWER 87139C - FILTER, CLEAN AIR ** Std Part 87211K - DUCT, AIR 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88515 - VALVE, COOLER EXPANSION 88539 - HOSE, COOLER UNIT DRAIN, NO.1 88625 - THERMISTOR, COOLER, NO.1 88710A - TUBE ASSY, AIRCONDITIONER 88897K - GROMMET, (FOR COOLER PIPE) 88899S - FRAME, FRONT COOLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
