TOYOTA DYNA BU343R-TKMQSD3 / POWERTRAIN-CHASSIS / FRONT AXLE HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT AXLE HUB

(0209-0612)BU343..IDN

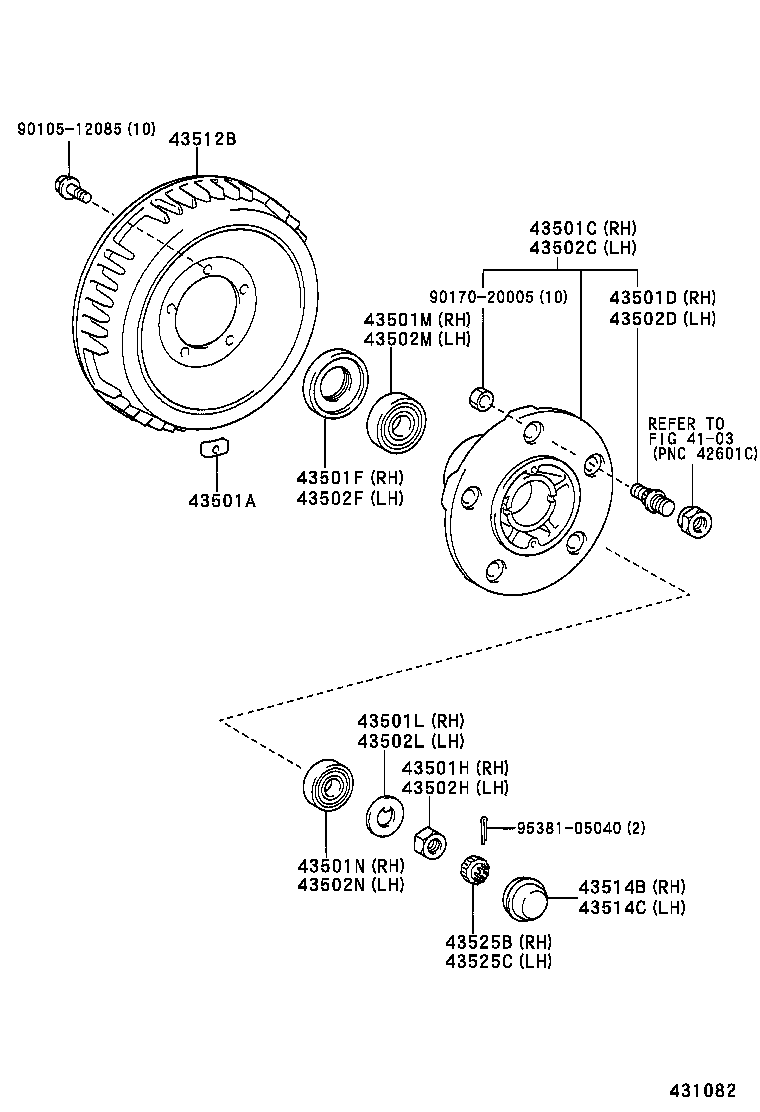

DYNA | FRONT AXLE HUB ** Refer Fig 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) 43501C - HUB SUB-ASSY, FRONT AXLE, RH 43501D - BOLT, HUB (FOR FRONT AXLE RH) 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) 43501H - NUT (FOR FRONT AXLE SHAFT RH) 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) 43502C - HUB SUB-ASSY, FRONT AXLE, LH 43502D - BOLT, HUB (FOR FRONT AXLE LH) 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) 43502H - NUT (FOR FRONT AXLE SHAFT LH) 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) 43512B - DRUM, BRAKE 43514B - CAP, FRONT AXLE HUB GREASE, RH 43514C - CAP, FRONT AXLE HUB GREASE, LH 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH ** Std Part ** Std Part ** Std Part
