TOYOTA DYNA XZU307-TGMMS3 / TOOL-ENGINE-FUEL / INJECTION PUMP ASSEMBLY

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

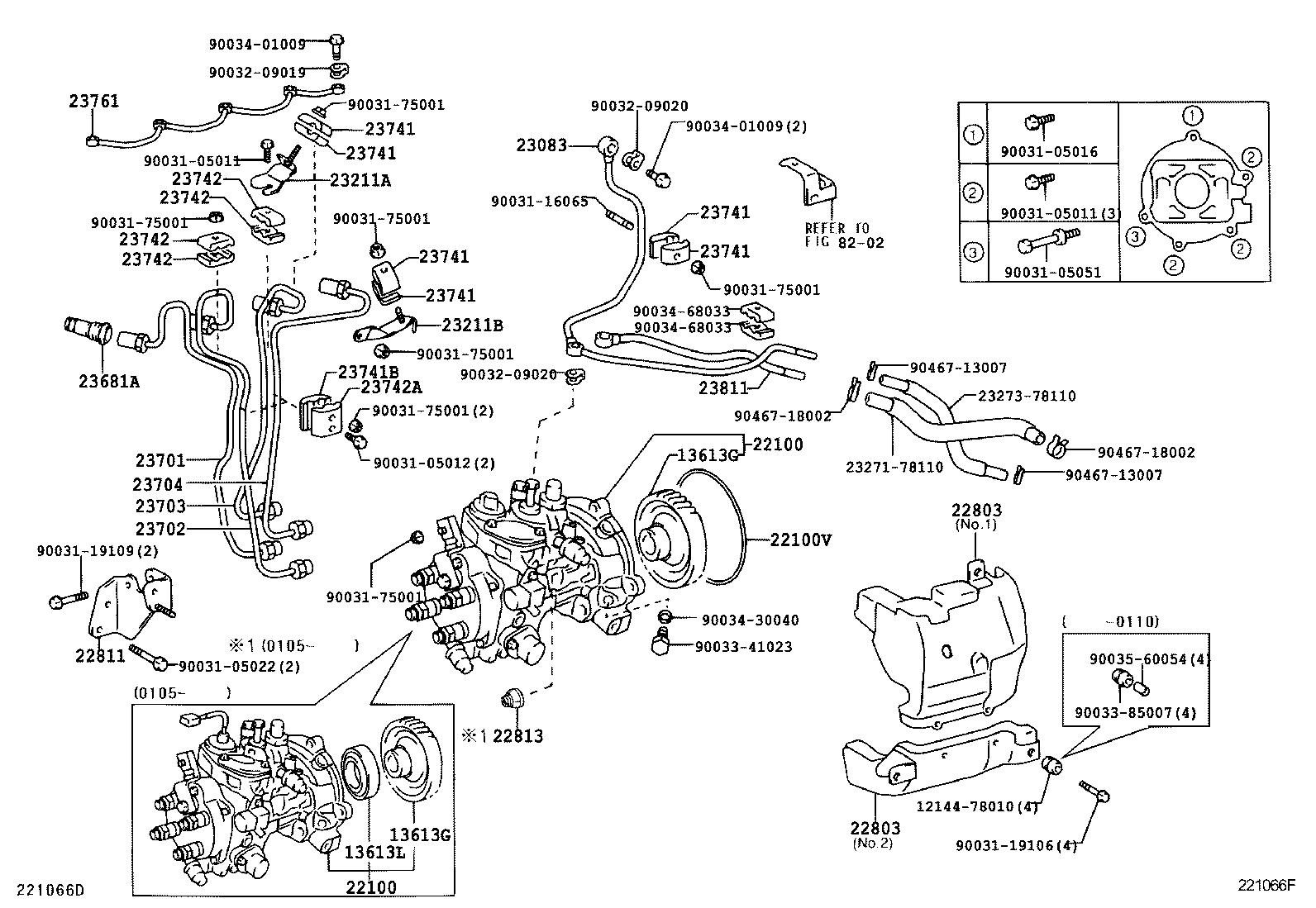

INJECTION PUMP ASSEMBLY

(0010- )S05C

DYNA | INJECTION PUMP ASSEMBLY ** Std Part 13613G - GEAR, INJECTION PUMP DRIVE 13613G - GEAR, INJECTION PUMP DRIVE 13613L - BEARING, BALL(FOR INJECTION PUMP DRIVE GEAR) 22100 - PUMP ASSY, INJECTION OR SUPPLY 22100 - PUMP ASSY, INJECTION OR SUPPLY 22100V - RING, O(FOR INJECTION PUMP) 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP 22803 - COVER SUB-ASSY, FUEL INJECTION PUMP 22811 - STAY, INJECTION PUMP, NO.1 22813 - PROTECTOR, INJECTION PUMP, NO.1 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 23211A - BRACKET(FOR INJECTION PIPE NO.3) 23211B - BRACKET(FOR INJECTION PIPE NO.4) ** Std Part ** Std Part 23681A - SEAL, NOZZLE HOLDER 23701 - PIPE SUB-ASSY, INJECTION, NO.1 23702 - PIPE SUB-ASSY, INJECTION, NO.2 23703 - PIPE SUB-ASSY, INJECTION, NO.3 23704 - PIPE SUB-ASSY, INJECTION, NO.4 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23741 - CLAMP, INJECTION PIPE, NO.1 23741B - CLAMP, INJECTION PIPE 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742 - CLAMP, INJECTION PIPE, NO.2 23742A - CLAMP, INJECTION PIPE, NO.3 23761 - PIPE, NOZZLE LEAKAGE, NO.1 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
