TOYOTA DYNA XZU424L-TKFRWW3 / POWERTRAIN-CHASSIS / REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

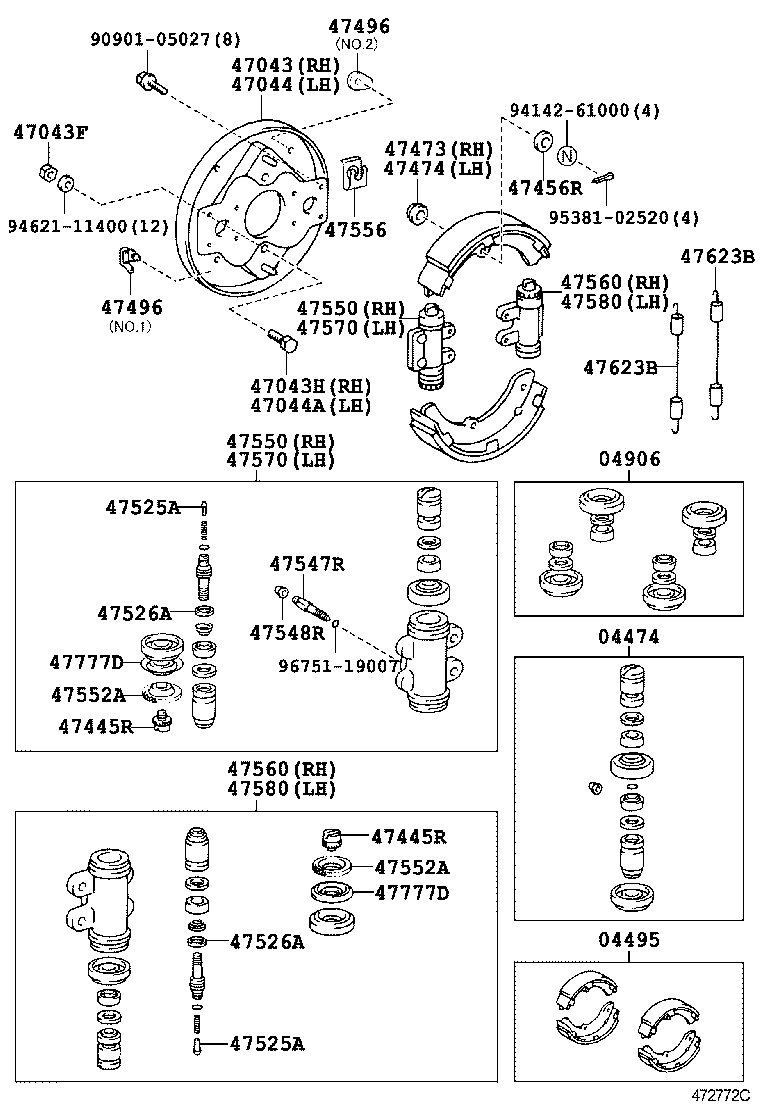

REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE

MANUAL ADJUSTER (0110-0212)75T ; (0212-0305)EUR

DYNA | REAR DRUM BRAKE WHEEL CYLINDER BACKING PLATE 04474 - CYLINDER KIT, REAR WHEEL 04495 - SHOE KIT, REAR BRAKE 04906 - CUP KIT, REAR WHEEL CYLINDER 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) 47445R - ROD, REAR WHEEL CYLINDER 47445R - ROD, REAR WHEEL CYLINDER 47456R - PLATE, REAR BRAKE SHOE GUIDE 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) 47496 - PLUG, HOLE(FOR REAR BRAKE) 47496 - PLUG, HOLE(FOR REAR BRAKE) 47525A - PIN, WHEEL CYLINDER ADJUSTER 47525A - PIN, WHEEL CYLINDER ADJUSTER 47526A - RING, AUTOMATIC ADJUSTER 47526A - RING, AUTOMATIC ADJUSTER 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) 47552A - NUT, REAR WHEEL CYLINDER ADJUSTING 47552A - NUT, REAR WHEEL CYLINDER ADJUSTING 47556 - SPRING, ADJUSTER LOCK(FOR REAR BRAKE) 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) 47777D - PROTECTOR, DUST BOOT 47777D - PROTECTOR, DUST BOOT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
