TOYOTA HILUX KZN165R-PRMSTN / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

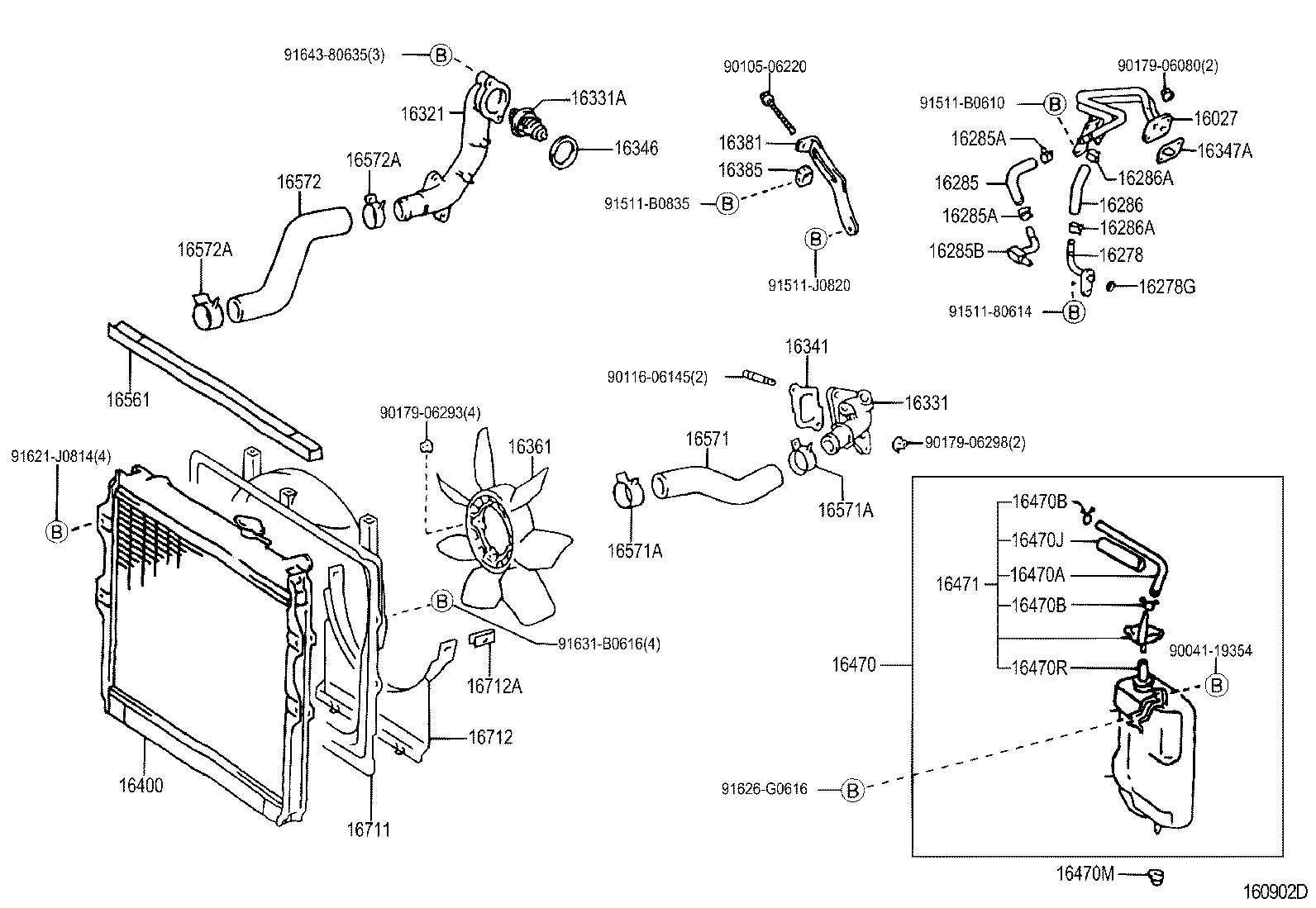

RADIATOR WATER OUTLET

ILLUST NO. 1 OF 2(9909-0109)1KZTE..KZN165..ARL,TH ; (9909-0203)1K

HILUX | RADIATOR WATER OUTLET 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16278 - PIPE, WATER BY-PASS, NO.2 16278G - RING, O(FOR WATER BY-PASS NO.2 PIPE) 16285 - HOSE, TURBO WATER, NO.2 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16285B - UNION(FOR TURBO WATER HOSE NO.2) 16286 - HOSE, TURBO WATER, NO.3 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16321 - INLET, WATER 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16346 - GASKET, THERMOSTAT 16347A - GASKET(FOR TURBO WATER PIPE) 16361 - FAN 16381 - BAR, FAN BELT ADJUSTING 16385 - SLIDER, FAN BELT ADJUSTING 16400 - RADIATOR ASSY 16470 - TANK ASSY, RADIATOR RESERVE 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) 16470M - GROMMET 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16711 - SHROUD, FAN 16712 - SHROUD, FAN, NO.2 16712A - CLIP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
