TOYOTA MR2 ZZW30R-AKGQHQ / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING CONTROL AIR DUCT

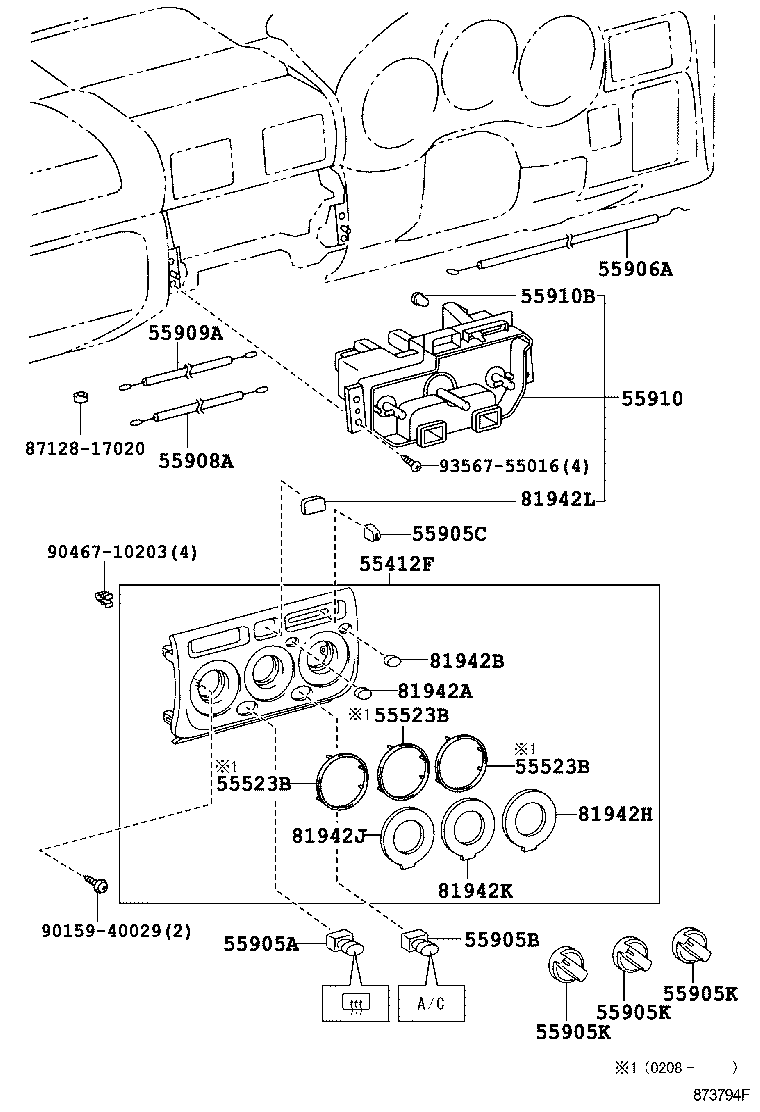

CONTROL ILLUST NO. 1 OF 3(9912-0509)RHD

MR2 | HEATING AIR CONDITIONING CONTROL AIR DUCT 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER 55523B - COVER, HEATER CONTROL OPENING 55523B - COVER, HEATER CONTROL OPENING 55523B - COVER, HEATER CONTROL OPENING 55905A - KNOB, HEATER CONTROL 55905B - KNOB, HEATER CONTROL, NO.2 55905C - KNOB, HEATER CONTROL, NO.3 55905K - KNOB, HEATER CONTROL, NO.4 55905K - KNOB, HEATER CONTROL, NO.4 55905K - KNOB, HEATER CONTROL, NO.4 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR 55910B - BULB, HEATER CONTROL 81942A - SHEET, HEATER CONTROL NAME, NO.1 81942B - SHEET, HEATER CONTROL NAME, NO.2 81942H - SHEET, HEATER CONTROL NAME, NO.3 81942J - SHEET, HEATER CONTROL NAME, NO.4 81942K - SHEET, HEATER CONTROL NAME, NO.5 81942L - SHEET, HEATER CONTROL NAME, NO.6 ** Std Part ** Std Part ** Std Part ** Std Part
