HEATING AIR CONDITIONING COOLER UNIT

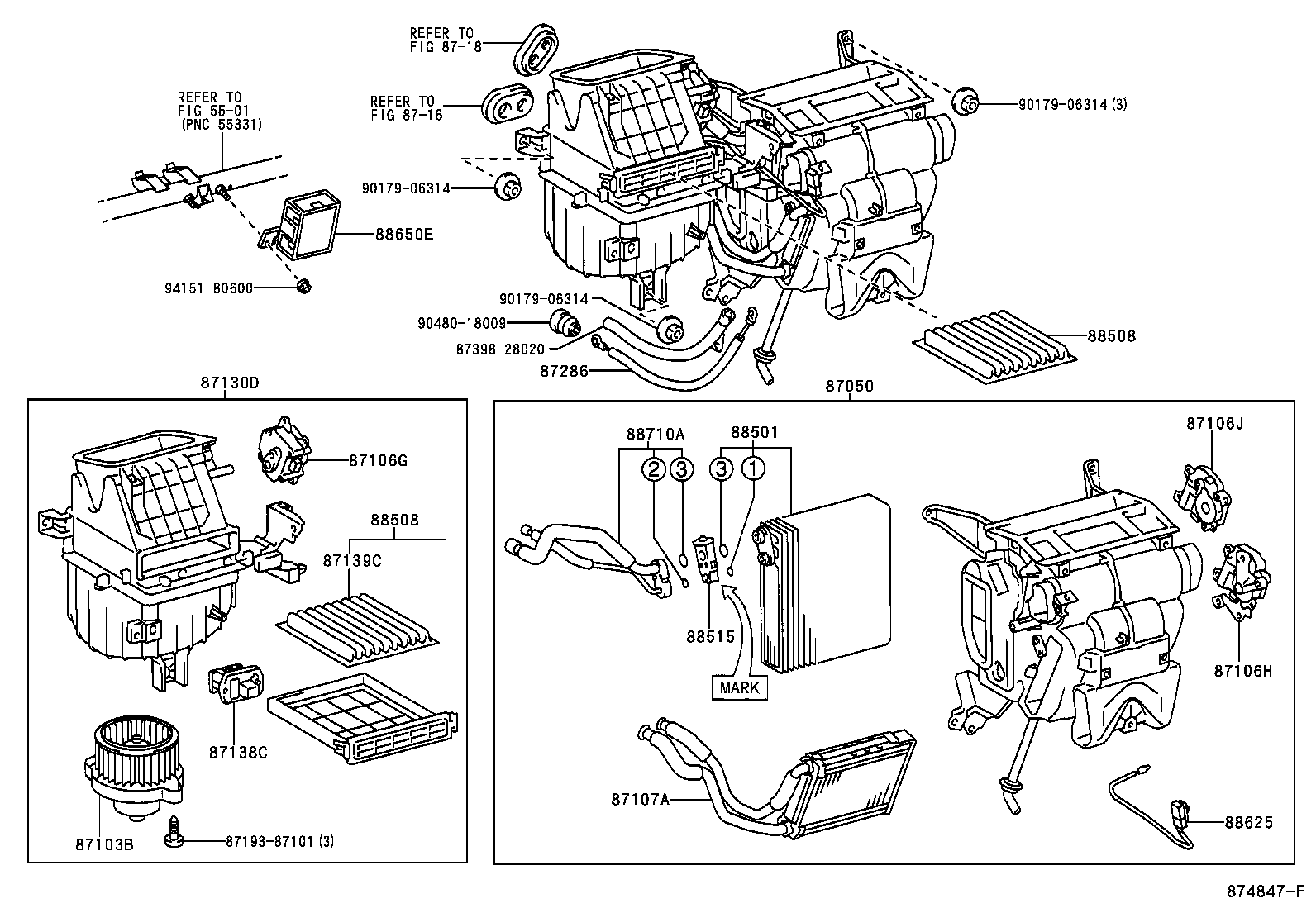

FRONT ILLUST NO. 1 OF 3(0105-0310)ACM20..RHD

PICNIC AVENSIS VERSO | HEATING AIR CONDITIONING COOLER UNIT ** Refer Fig 87050 - RADIATOR ASSY, AIR CONDITIONER 87103B - MOTOR SUB-ASSY, BLOWER W/FAN 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) 87107A - UNIT SUB-ASSY, HEATER RADIATOR 87130D - BLOWER ASSY 87138C - RESISTOR, BLOWER 87139C - FILTER, CLEAN AIR ** Refer Fig ** Refer Fig ** Std Part 87286 - CABLE, CONTROL ** Std Part 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 88508 - FILTER SUB-ASSY, CLEAN AIR 88508 - FILTER SUB-ASSY, CLEAN AIR 88515 - VALVE, COOLER EXPANSION 88625 - THERMISTOR, COOLER, NO.1 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 88710A - TUBE ASSY, AIRCONDITIONER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
