TOYOTA QUALIS RZF50R-HRMNED / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

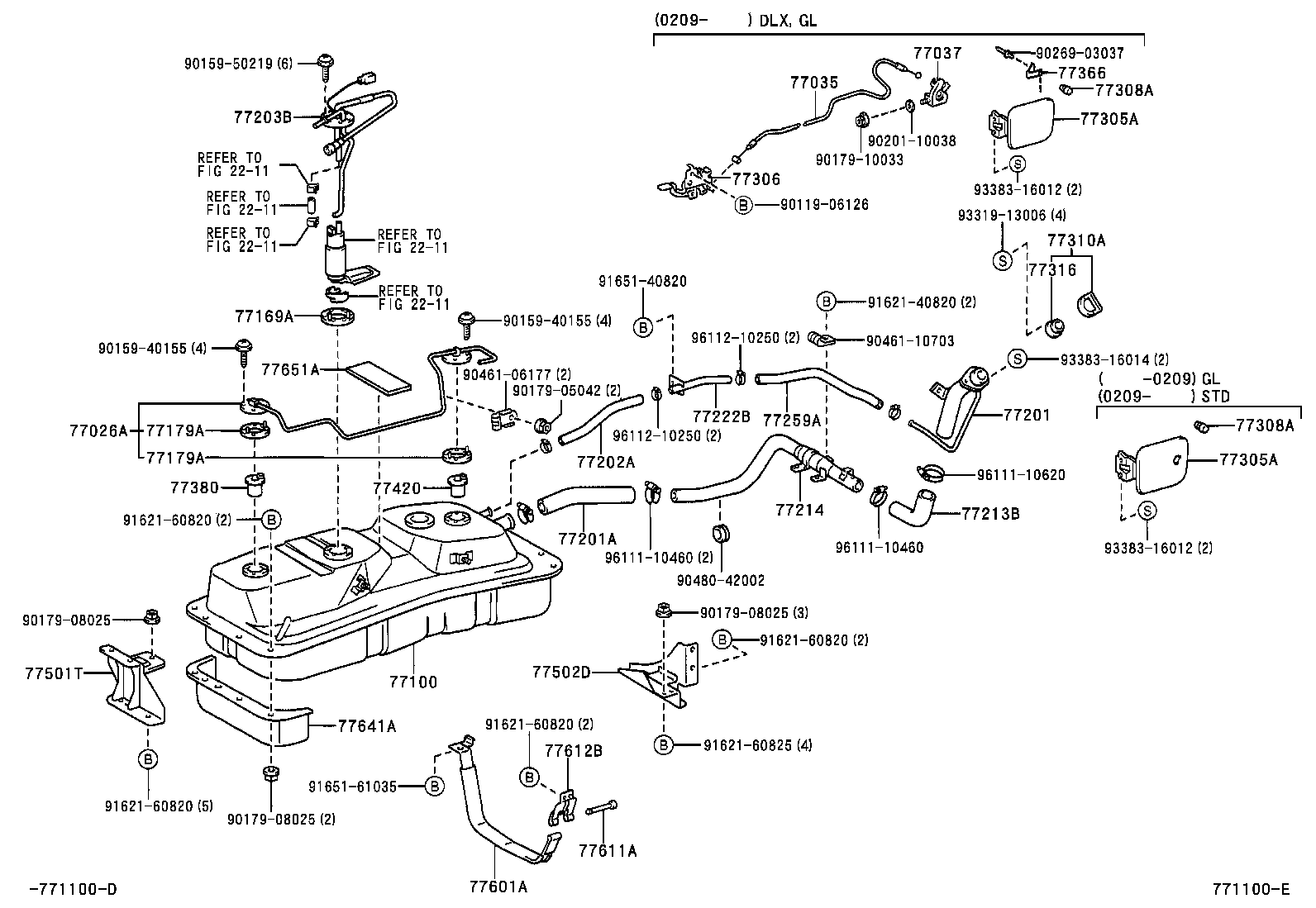

FUEL TANK ILLUST NO. 1 OF 2(0201- )RZF50

QUALIS | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77100 - TANK ASSY, FUEL 77169A - GASKET, FUEL SUCTION TUBE SET 77179A - GASKET, FUEL TANK BREATHER TUBE 77179A - GASKET, FUEL TANK BREATHER TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) 77203B - TUBE SUB-ASSY, FUEL SUCTION 77213B - HOSE, FUEL TANK TO FILLER PIPE 77214 - PIPE, FUEL TANK FILLER 77222B - TUBE, FUEL TANK BREATHER, NO.2 77259A - HOSE, FUEL(FOR BREATHER TUBE) 77305A - LID SUB-ASSY, FUEL FILLER OPENING 77305A - LID SUB-ASSY, FUEL FILLER OPENING 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77308A - CUSHION(FOR FUEL INLET BOX COVER) 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77366 - SPRING, FUEL FILLER OPENING LID HINGE 77380 - VALVE ASSY, FUEL CUT OFF 77420 - VALVE ASSY, FUEL CUT OFF, NO.2 77501T - BRACKET SUB-ASSY, FUEL TANK 77502D - BRACKET SUB-ASSY, FUEL TANK, REAR 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77611A - PIN (FOR FUEL TANK BAND) 77612B - BAND, FUEL TANK, NO.2 77641A - PROTECTOR, FUEL TANK, NO.1 77651A - CUSHION, FUEL TANK, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
