TOYOTA QUALIS RZF50R-HRMNED / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

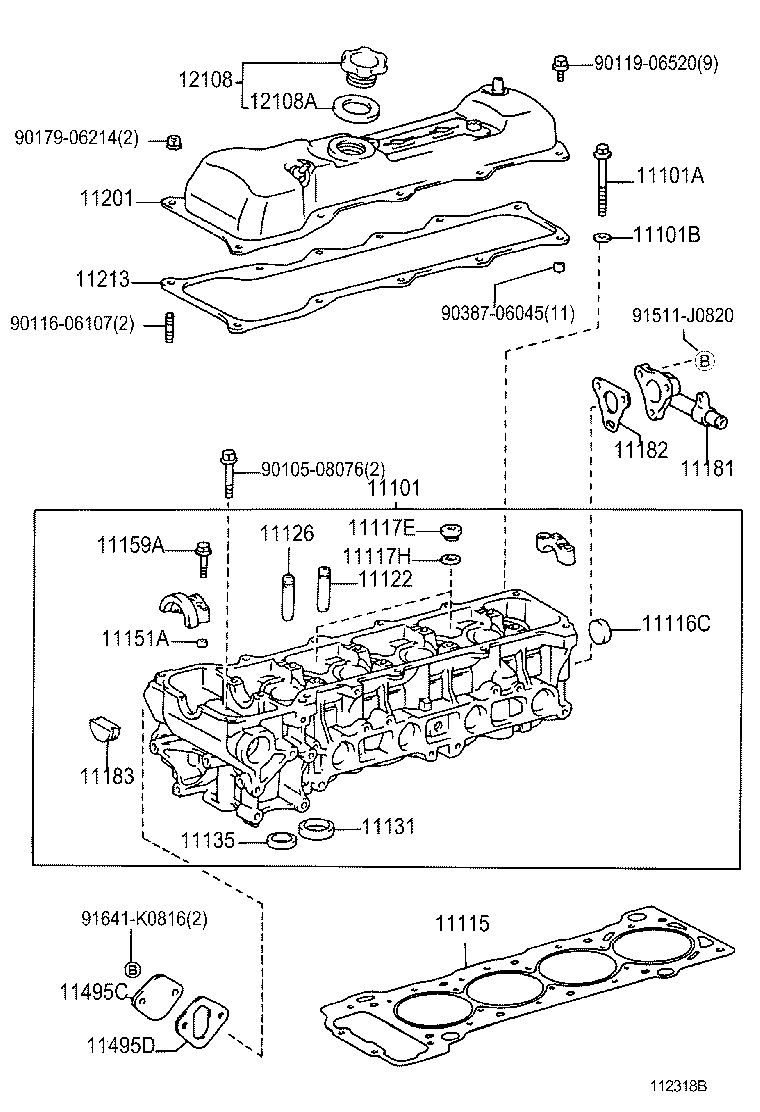

CYLINDER HEAD

(0201- )1RZE

QUALIS | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) 11115 - GASKET, CYLINDER HEAD 11116C - PLUG, TIGHT, NO.3 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 11117H - GASKET(FOR WATER HOLE) 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11131 - SEAT, INTAKE VALVE 11135 - SEAT, EXHAUST VALVE 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11181 - PLATE, CYLINDER HEAD, REAR 11182 - GASKET, CYLINDER HEAD REAR PLATE 11183 - PLUG, SEMICIRCULAR 11201 - COVER SUB-ASSY, CYLINDER HEAD 11213 - GASKET, CYLINDER HEAD COVER 11495C - PLUG, PLATE(FOR CYLINDER HEAD) 11495D - GASKET(FOR CYLINDER HEAD) 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
