TOYOTA QUALIS RZF50R-HRMNED / TOOL-ENGINE-FUEL / CAMSHAFT VALVE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CAMSHAFT VALVE

(0201- )1RZE

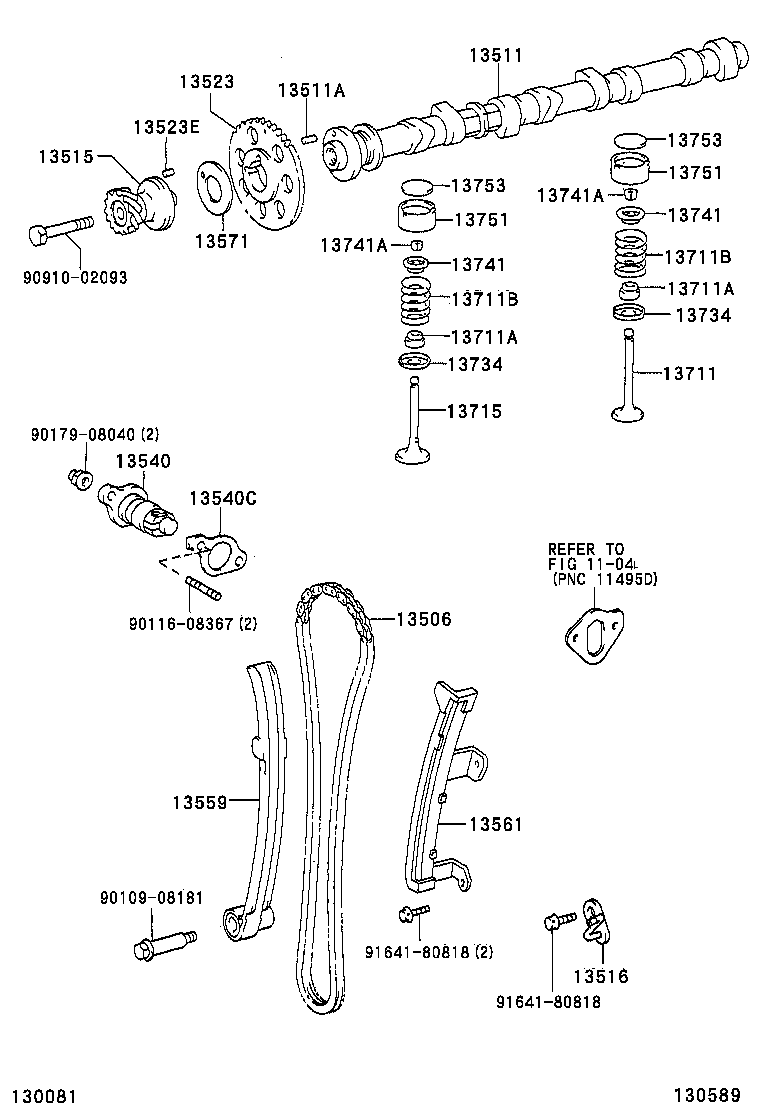

QUALIS | CAMSHAFT VALVE ** Refer Fig 13506 - CHAIN SUB-ASSY 13511 - CAMSHAFT 13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK) 13515 - GEAR, DISTRIBUTOR DRIVE 13516 - JET, OIL 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING 13523E - PIN, STRAIGHT(FOR TIMING GEAR) 13540 - TENSIONER ASSY, CHAIN, NO.1 13540C - GASKET(FOR CHAIN TENSIONER) 13559 - SLIPPER, CHAIN TENSIONER 13561 - DAMPER, CHAIN VIBRATION, NO.1 13571 - PLATE, CAMSHAFT THRUST 13711 - VALVE, INTAKE 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) 13711B - SPRING, COMPRESSION(FOR INNER) 13711B - SPRING, COMPRESSION(FOR INNER) 13715 - VALVE, EXHAUST 13734 - SEAT, VALVE SPRING 13734 - SEAT, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741 - RETAINER, VALVE SPRING 13741A - LOCK, VALVE SPRING RETAINER 13741A - LOCK, VALVE SPRING RETAINER 13751 - LIFTER, VALVE 13751 - LIFTER, VALVE 13753 - SHIM, VALVE ADJUSTING 13753 - SHIM, VALVE ADJUSTING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
