TOYOTA QUALIS RZF50R-HRMNED / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

AIR CLEANER

(0201- )1RZE

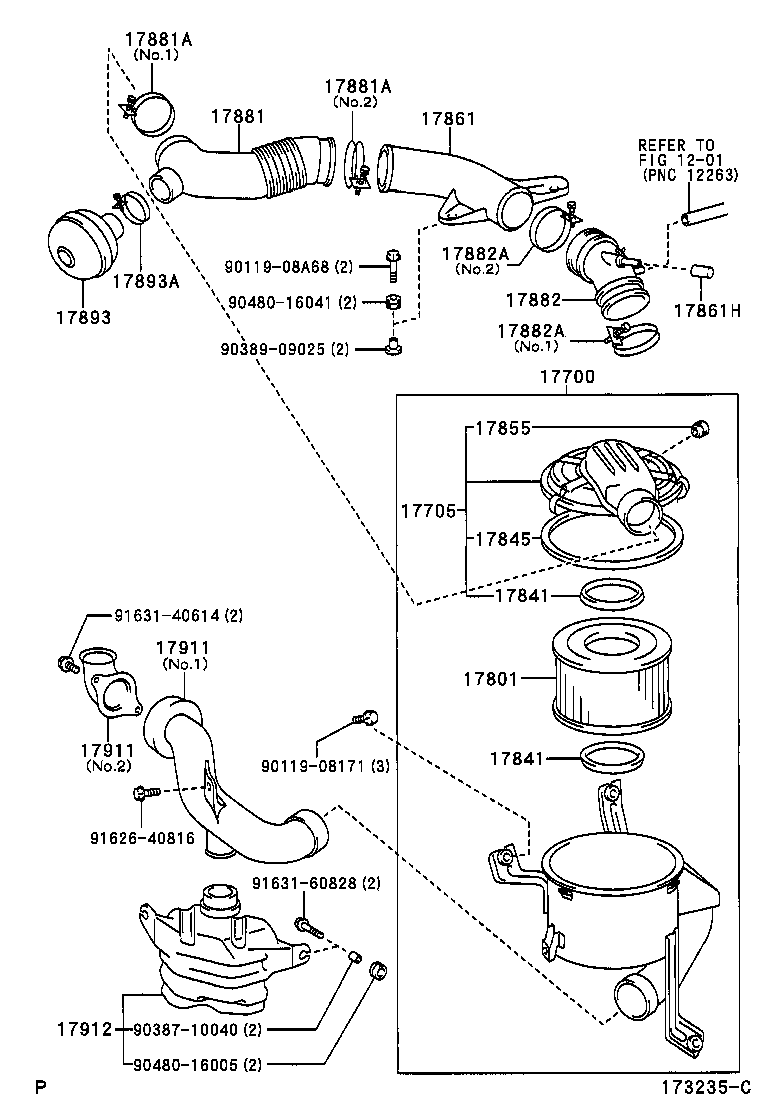

QUALIS | AIR CLEANER ** Refer Fig 17700 - CLEANER ASSY, AIR 17705 - CAP SUB-ASSY, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17841 - GASKET, FILTER ELEMENT 17841 - GASKET, FILTER ELEMENT 17845 - GASKET, AIR CLEANER CAP 17855 - GASKET, AIR INLET DUCT, NO.1 17861 - CONNECTOR, INTAKE AIR 17861H - PLUG(FOR INTAKE AIR CONNECTOR) 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882 - HOSE, AIR CLEANER, NO.2 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17893 - RESONATOR, INTAKE AIR 17893A - CLAMP, HOSE 17911 - DUCT, COOL AIR INTAKE, NO.1 17911 - DUCT, COOL AIR INTAKE, NO.1 17912 - DUCT, COOL AIR INTAKE, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
