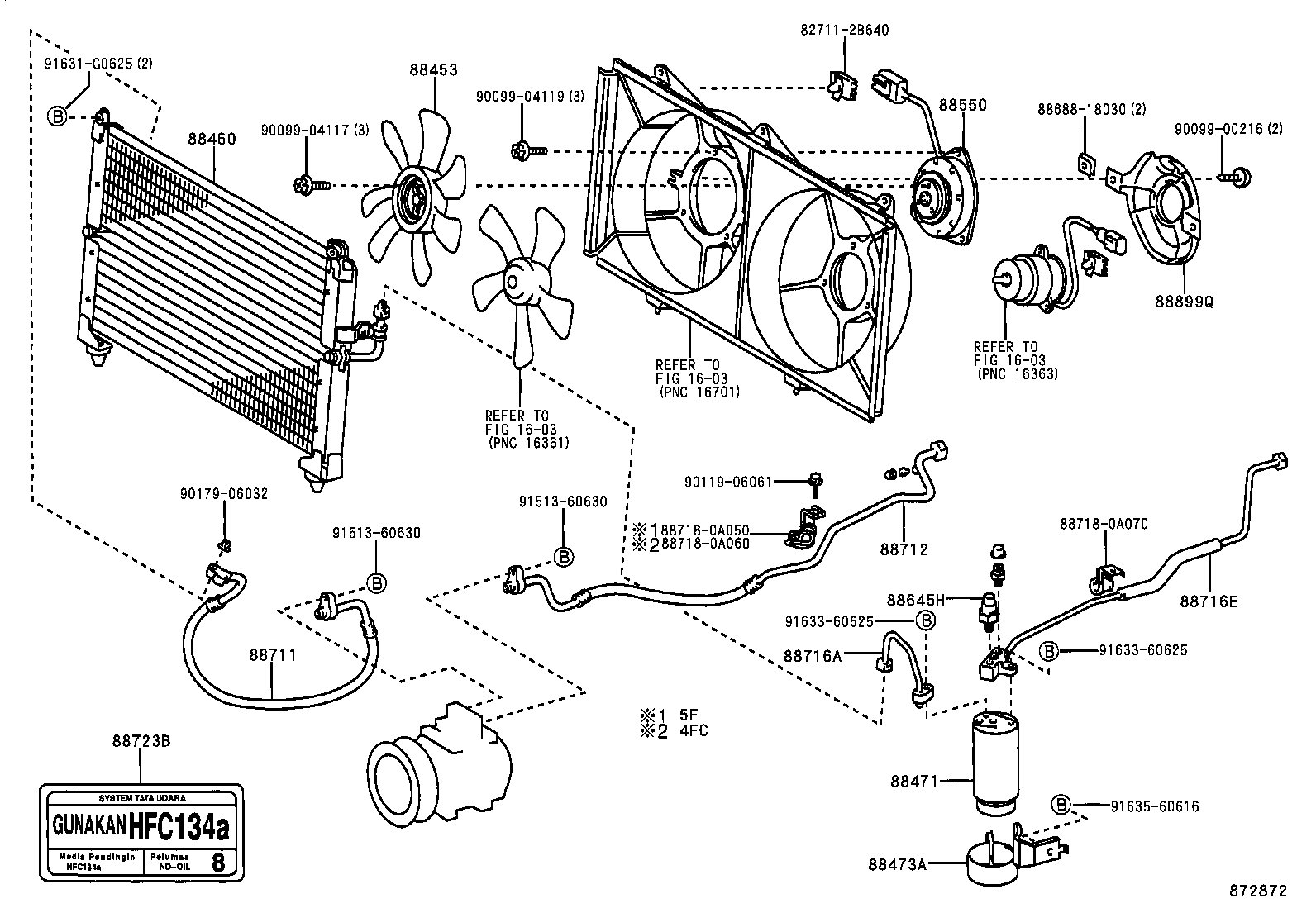

HEATING AIR CONDITIONING COOLER PIPING

ILLUST NO. 1 OF 2(9810- )IDN

SOLUNA | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part 88453 - FAN, COOLING (FOR CONDENSER) 88460 - CONDENSER ASSY, COOLER 88471 - TANK, RECEIVER AIR CONDITIONER 88473A - HOLDER, RECEIVER 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) 88645H - SWITCH, PRESSURE NO.1 ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716E - PIPE, COOLER REFRIGERANT LIQUID, E ** Std Part ** Std Part ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION 88899Q - PLATE, COVER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
