TOYOTA T U V KF82L-GRPNEM / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

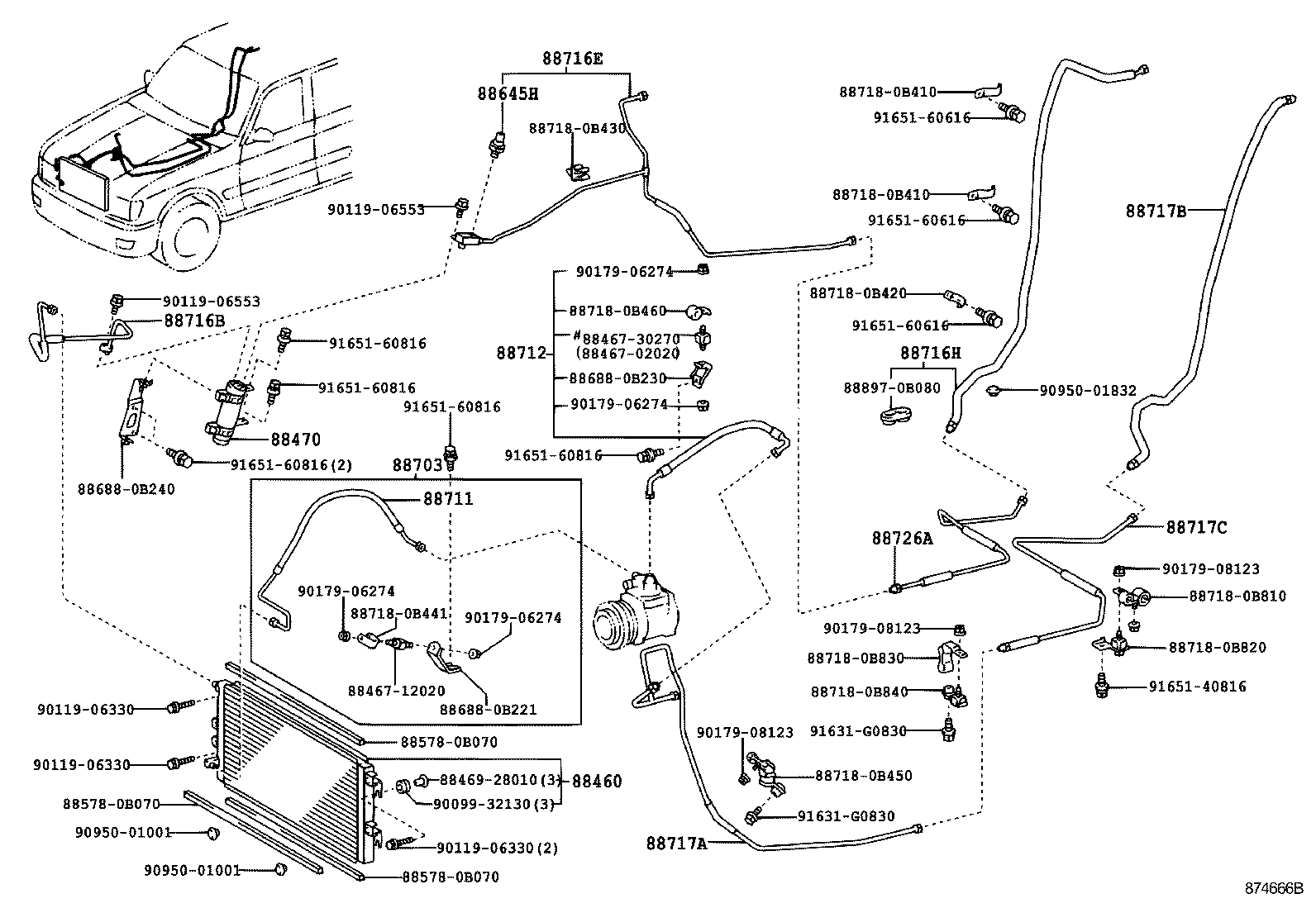

DUAL AIR CONDITIONER ILLUST NO. 1 OF 3(0102- )KF80..4FC..PHL ; (0211- )KF82..4FC

T U V | HEATING AIR CONDITIONING COOLER PIPING 88460 - CONDENSER ASSY, COOLER ** Std Part ** Std Part ** Std Part ** Std Part 88470 - RECEIVER & DRYER ASSY, COOLER ** Std Part ** Std Part ** Std Part 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part 88703 - HOSE SUB-ASSY, DISCHARGE 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 88716B - PIPE, COOLER REFRIGERANT LIQUID, B 88716E - PIPE, COOLER REFRIGERANT LIQUID, E 88716H - PIPE, COOLER REFRIGERANT LIQUID, H 88717A - PIPE, COOLER REFRIGERANT SUCTION, A 88717B - PIPE, COOLER REFRIGERANT SUCTION, B 88717C - PIPE, COOLER REFRIGERANT SUCTION, C ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88726A - PIPE, COOLER REFRIGERANT LIQUID, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
