TOYOTA AVALON MCX10R-BEPDKQ / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

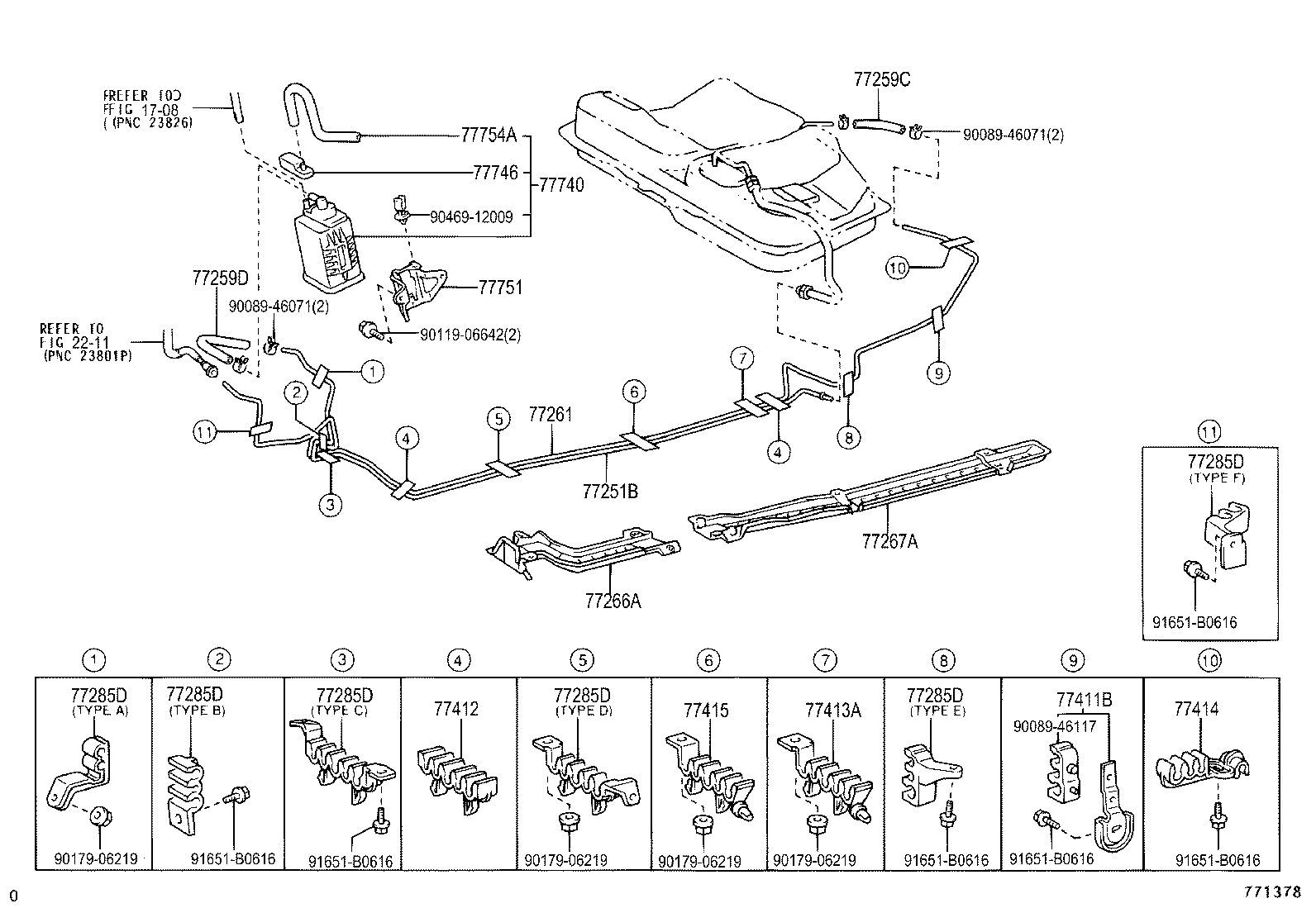

FUEL TUBE ILLUST NO. 2 OF 2(0309- )

AVALON | FUEL TANK TUBE ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77259C - HOSE, FUEL 77259D - HOSE, FUEL, NO.1 77261 - TUBE SUB-ASSY, FUEL EMISSION 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77285D - CLAMP, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 77740 - CANISTER ASSY, CHARCOAL 77746 - FILTER, CHARCOAL CANISTER, NO.2 77751 - BRACKET, CHARCOAL CANISTER BASE 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
