TOYOTA DYNA XZU342R-TKMQSD3 / POWERTRAIN-CHASSIS / TRANSMISSION GEAR MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

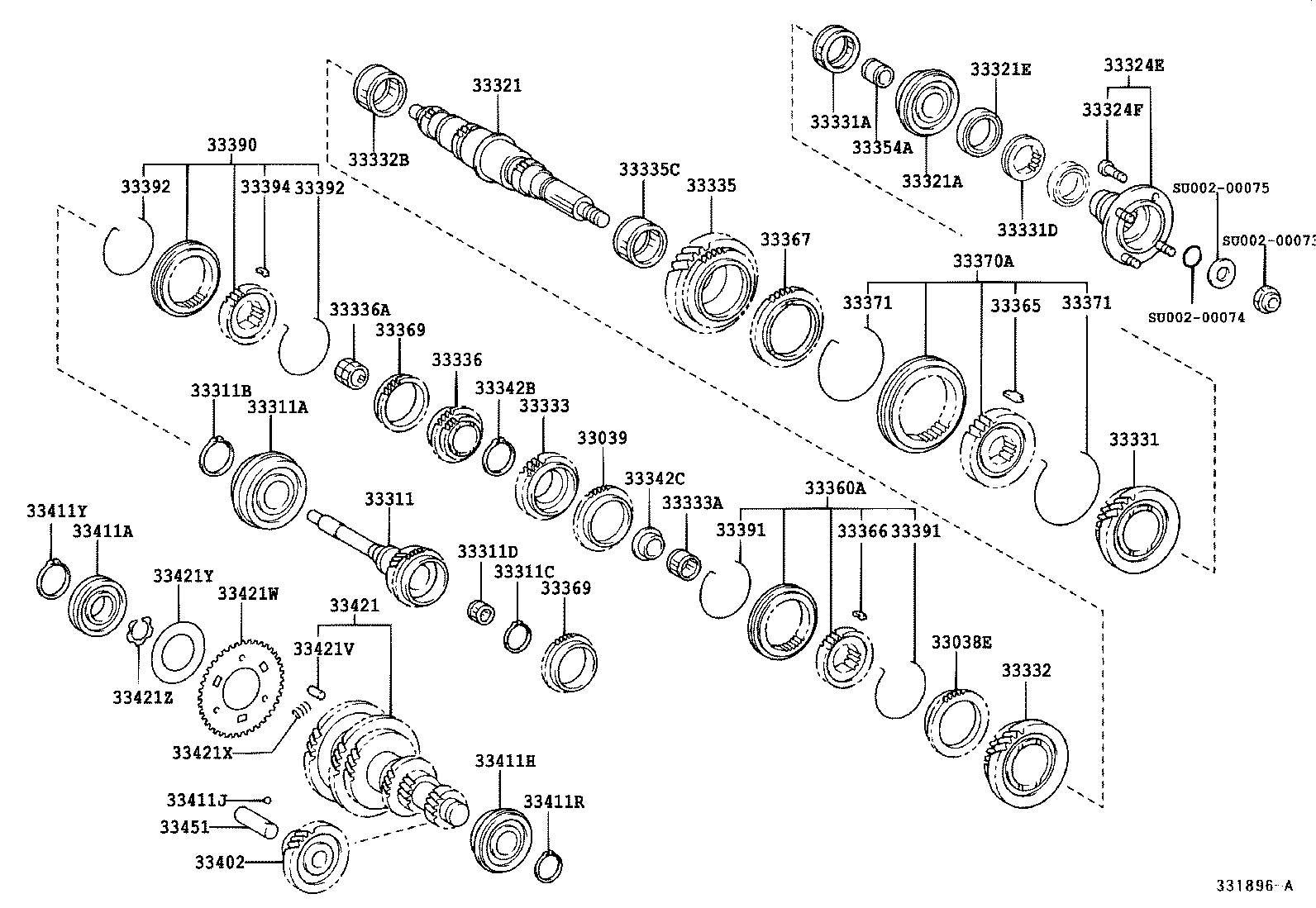

TRANSMISSION GEAR MTM

MXA5R (0209-0404)XZU342

DYNA | TRANSMISSION GEAR MTM 33038E - RING SET, SYNCHRONIZER, NO.2 33039 - RING SET, SYNCHRONIZER, NO.3 33311 - SHAFT, INPUT 33311A - BEARING (FOR INPUT SHAFT FRONT) 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) 33311C - RING, HOLE SNAP (FOR NEEDLE ROLLER) 33311D - BEARING, INPUT SHAFT 33321 - SHAFT, OUTPUT 33321A - BEARING (FOR OUTPUT SHAFT REAR) 33321E - SPACER (FOR 1ST GEAR TO BEARING) 33324E - DRIVE ASSY, COUPLING 33324F - BOLT, REAMER(FOR COUPLING DRIVE ASSY) 33331 - GEAR, REVERSE 33331A - BEARING (FOR REVERSE GEAR) 33331D - GEAR, SPEED DRIVE 33332 - GEAR, 2ND 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) 33333 - GEAR, 3RD 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) 33335 - GEAR, 1ST 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) 33336 - GEAR, 5TH 33336A - BEARING, NEEDLE ROLLER (FOR 5TH GEAR) 33342B - RING, SHAFT SNAP (FOR GEAR THRUST WASHER) 33342C - WASHER, 3RD GEAR THRUST 33354A - RACE, REVERSE GEAR BEARING, INNER 33360A - SLEEVE & HUB ASSY, 2ND-3RD 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 33367 - RING, SYNCHRONIZER, NO.1 33369 - RING, SYNCHRONIZER, NO.3 33369 - RING, SYNCHRONIZER, NO.3 33370A - SLEEVE & HUB ASSY, 1-R 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 33390 - SLEEVE & HUB ASSY, TOP-O/D 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 33402 - GEAR SUB-ASSY, REVERSE IDLER 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) 33411H - BEARING OR ROLLER(FOR COUNTER GEAR REAR) 33411J - BALL, COUNTER GEAR CENTER BEARING STOPPER 33411R - RING, SNAP, COUNTER GEAR REAR BEARING 33411Y - RING, SNAP, BAG, COUNTERSHAFT 33421 - GEAR, COUNTER 33421V - PIN, ANTI-LASH PLATE 33421W - PLATE, ANTI-LASH 33421X - SPRING, ANTI-LASH PLATE 33421Y - SPRING, CONICAL ANTI-LASH 33421Z - RING, SNAP, ANTI-LASH 33451 - SHAFT, REVERSE IDLER GEAR ** Std Part ** Std Part ** Std Part
