TOYOTA HILUX LN145L-TRMDS3 / TOOL-ENGINE-FUEL / CYLINDER HEAD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

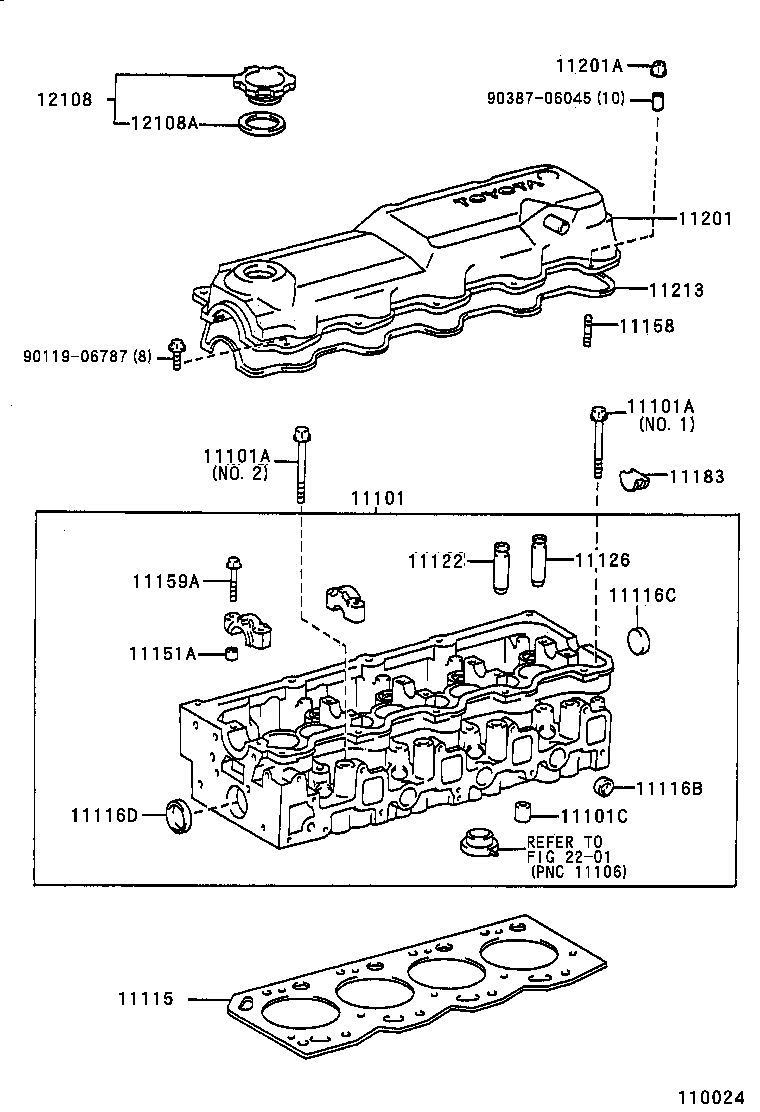

CYLINDER HEAD

(9708- )2L,3L..LN141,145,146,155,166,171,191.

HILUX | CYLINDER HEAD 11101 - HEAD SUB-ASSY, CYLINDER 11101A - BOLT(FOR CYLINDER HEAD SET) 11101A - BOLT(FOR CYLINDER HEAD SET) 11101C - TUBE(FOR CYLINDER HEAD) 11115 - GASKET, CYLINDER HEAD 11116B - PLUG, TIGHT, NO.2 11116C - PLUG, TIGHT, NO.3 11116D - PLUG, TIGHT, NO.4 11122 - BUSH, INTAKE VALVE GUIDE 11122 - BUSH, INTAKE VALVE GUIDE 11126 - BUSH, EXHAUST VALVE GUIDE 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) 11183 - PLUG, SEMICIRCULAR 11201 - COVER SUB-ASSY, CYLINDER HEAD 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) 11213 - GASKET, CYLINDER HEAD COVER 12108 - CAP SUB-ASSY, OIL FILLER 12108A - GASKET(FOR OIL FILLER CAP) ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
