TOYOTA HILUX RZN154L-CRMDK / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

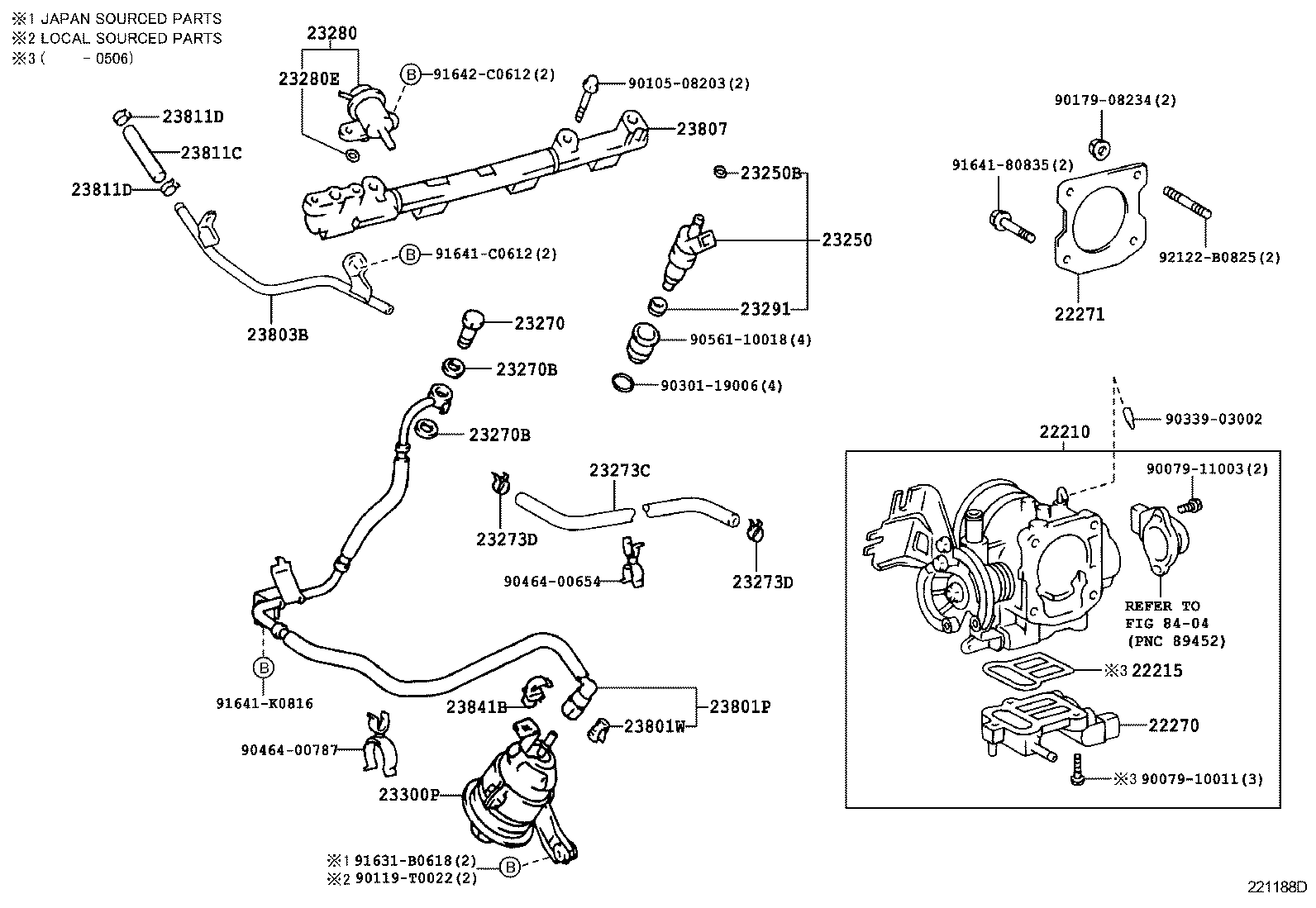

ILLUST NO. 1 OF 2(0108- )3RZFE..RZN154,169..GEN

HILUX | FUEL INJECTION SYSTEM 22210 - BODY ASSY, THROTTLE 22215 - GASKET, THROTTLE BODY COVER 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23273C - HOSE, FUEL, NO.2 23273D - CLIP(FOR FUEL HOSE NO.2) 23273D - CLIP(FOR FUEL HOSE NO.2) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23300P - FILTER, FUEL(FOR EFI) 23801P - PIPE SUB-ASSY, FUEL, NO.1 23801W - CLIP, FUEL TUBE CONNECTOR 23803B - PIPE SUB-ASSY, FUEL, NO.3 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23811C - HOSE, FUEL(FOR FUEL PIPE TO PRESSURE REGULATOR) 23811D - CLIP, HOSE(FOR FUEL HOSE) 23811D - CLIP, HOSE(FOR FUEL HOSE) 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
