TOYOTA LAND CRUISER PRADO GRJ120R-GKPEKQ / BODY / REAR DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR DOOR PANEL GLASS

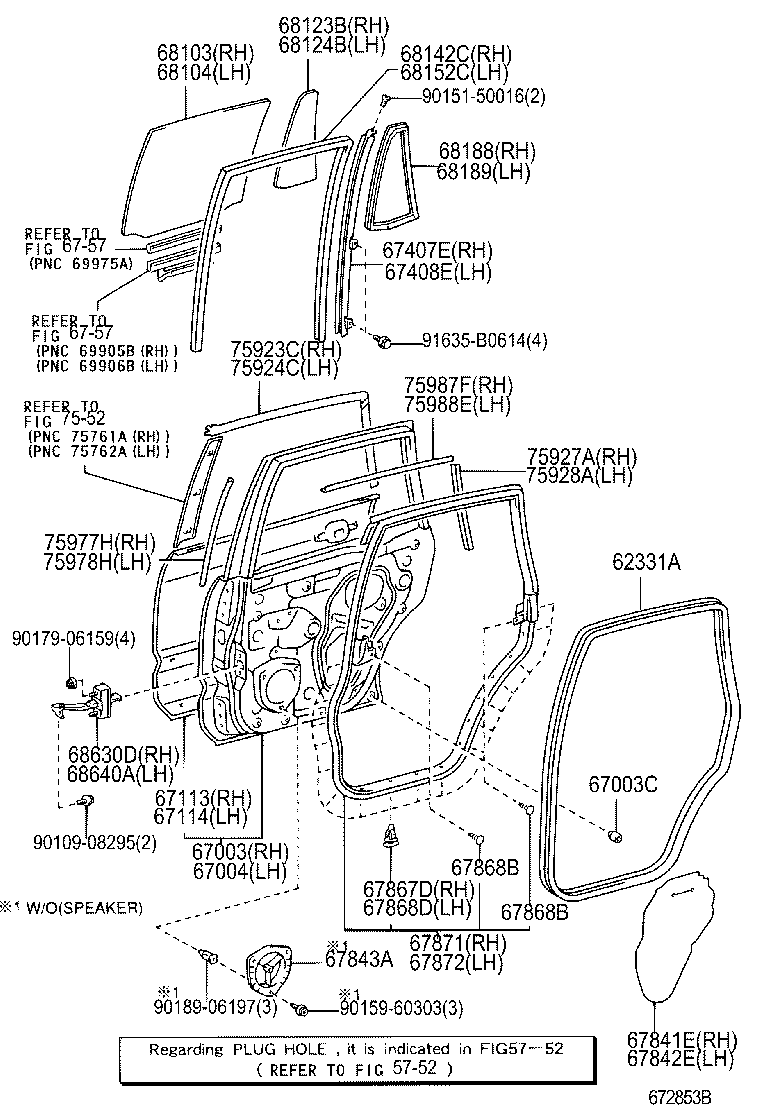

ILLUST NO. 1 OF 2(0209- )GRJ120,KDJ120,KZJ120,LJ120,RZJ120,TRJ

 LAND CRUISER PRADO |  REAR DOOR PANEL GLASS ** Refer Fig 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH 67003 - PANEL SUB-ASSY, REAR DOOR, RH 67003C - CUSHION, REAR DOOR PANEL 67004 - PANEL SUB-ASSY, REAR DOOR, LH 67113 - PANEL, REAR DOOR, OUTER RH 67114 - PANEL, REAR DOOR, OUTER LH 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH ** Refer Fig ** Refer Fig 67841E - COVER, REAR DOOR SERVICE HOLE, RH 67842E - COVER, REAR DOOR SERVICE HOLE, LH 67843A - COVER, REAR DOOR SERVICE HOLE, NO.2 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH 67871 - WEATHERSTRIP, REAR DOOR, RH 67872 - WEATHERSTRIP, REAR DOOR, LH 68103 - GLASS SUB-ASSY, REAR DOOR, RH 68104 - GLASS SUB-ASSY, REAR DOOR, LH 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH 68142C - RUN, REAR DOOR GLASS, RH 68152C - RUN, REAR DOOR GLASS, LH 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH 68630D - CHECK ASSY, REAR DOOR, RH 68640A - CHECK ASSY, REAR DOOR, LH ** Refer Fig 75923C - TAPE, BLACK OUT, NO.2 RH 75924C - TAPE, BLACK OUT, NO.2 LH 75927A - TAPE, BLACK OUT, NO.4 RH 75928A - TAPE, BLACK OUT, LH 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH 75987F - STRIPE, REAR DOOR, OUTSIDE, RH 75988E - STRIPE, REAR DOOR, OUTSIDE LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
