TOYOTA LAND CRUISER PRADO GRJ120R-GKPEKQ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

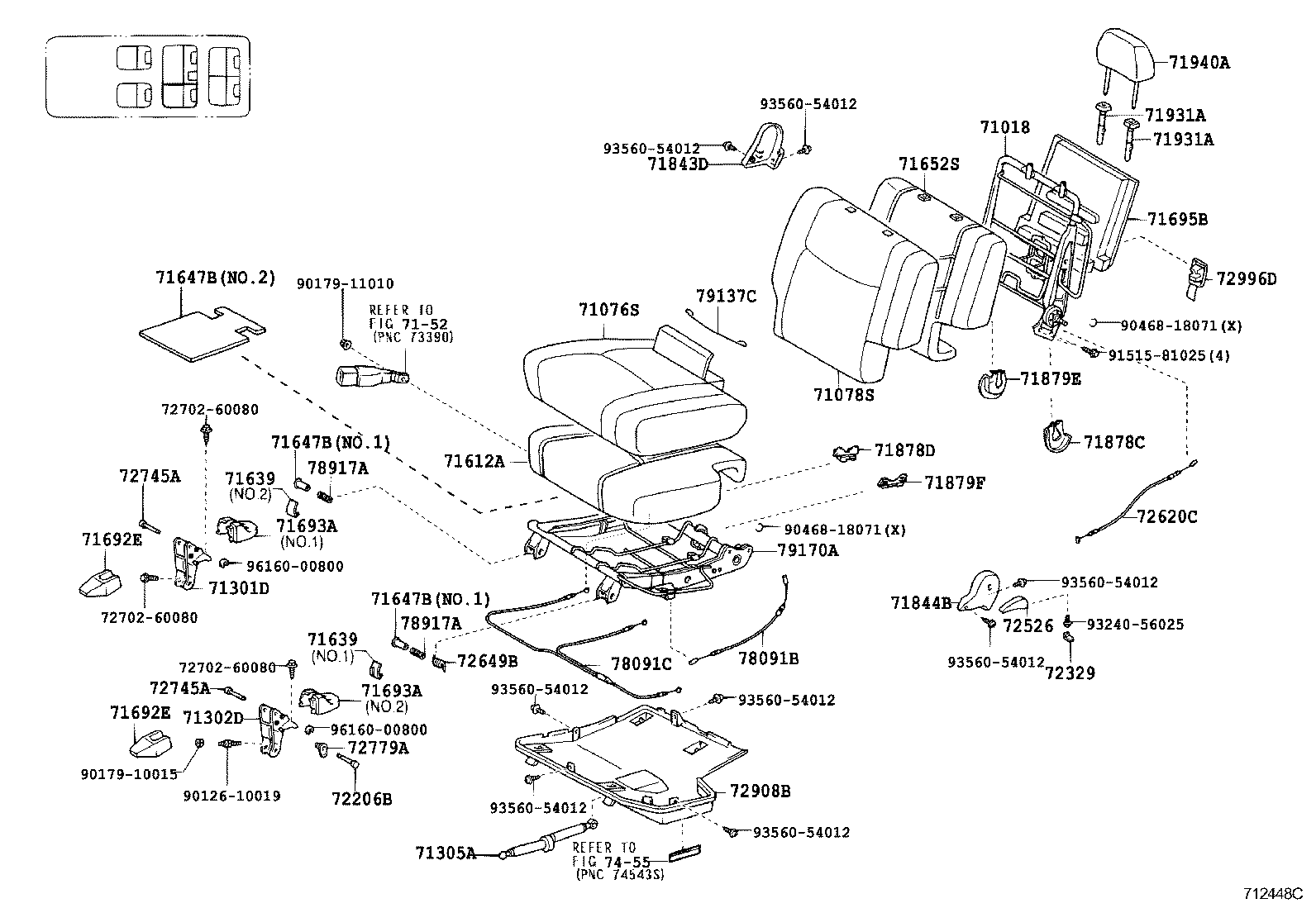

REAR NO.1 SEAT LH ILLUST NO. 2 OF 3(0209- )RHD

 LAND CRUISER PRADO |  SEAT SEAT TRACK 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71301D - HINGE SUB-ASSY, REAR SEAT, RH 71302D - HINGE SUB-ASSY, REAR SEAT, LH 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER ** Refer Fig 71612A - PAD, REAR SEAT CUSHION, LH 71639 - COVER, REAR SEAT CUSHION HINGE, LH 71639 - COVER, REAR SEAT CUSHION HINGE, LH 71647B - PROTECTOR, REAR SEAT CUSHION EDGE 71647B - PROTECTOR, REAR SEAT CUSHION EDGE 71647B - PROTECTOR, REAR SEAT CUSHION EDGE 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 71692E - COVER, REAR SEAT CUSHION HINGE, NO.2 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 71693A - COVER, REAR SEAT CUSHION HINGE, NO.3 71695B - PROTECTOR, REAR SEAT, NO.1 LH 71843D - COVER, REAR SEAT RECLINING, NO.2 RH 71844B - COVER, RECLINING ADJUSTER, LH 71878C - COVER, REAR SEAT RECLINING, INNER RH 71878D - COVER, REAR SEAT RECLINING, INNER RH 71879E - COVER, REAR SEAT RECLINING, INNER LH 71879F - COVER, REAR SEAT RECLINING, INNER LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72206B - PIN SUB-ASSY, SEAT TRACK OPEN LEVER, LH 72329 - COVER, SEAT ADJUSTER BOLT 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH 72620C - CABLE ASSY, REAR NO.1 SEAT LOCK 72649B - SPRING, REAR SEAT CUSHION SUPPORT  ** Std Part  ** Std Part  ** Std Part 72745A - PIN, REAR SEAT RECLINING HINGE 72745A - PIN, REAR SEAT RECLINING HINGE 72779A - GUIDE, REAR SEAT HINGE PAWL 72908B - COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH 72996D - COVER, REAR NO.2 SEAT BACK, LH ** Refer Fig 78091B - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL 78091C - CABLE SUB-ASSY, FOLD SEAT LOCK CONTROL 78917A - CUSHION, FOLD SEAT LEG LOCK 78917A - CUSHION, FOLD SEAT LEG LOCK 79137C - WIRE, NO.1 SEAT CUSHION 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
