TOYOTA LAND CRUISER PRADO GRJ120R-GKPEKQ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

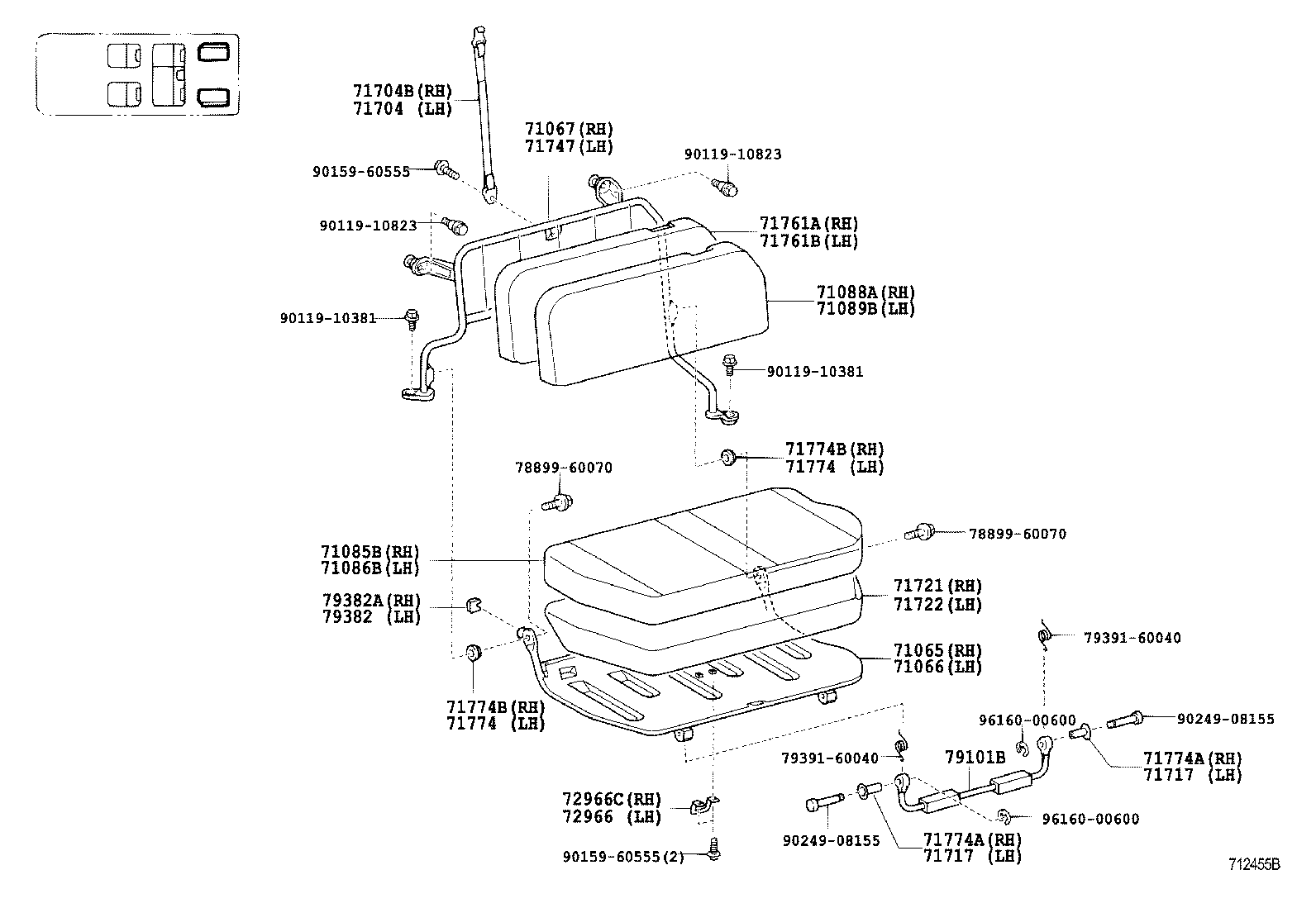

REAR NO.2 SEAT-PARALLEL SEAT ILLUST NO. 3 OF 3(0209- )GX..CHI ; (0209- )GRJ120,KZJ120,LJ

LAND CRUISER PRADO | SEAT SEAT TRACK 71065 - FRAME SUB-ASSY, REAR SIDE SEAT CUSHION, RH 71066 - FRAME SUB-ASSY, REAR SIDE SEAT CUSHION, LH 71067 - FRAME SUB-ASSY, REAR SIDE SEAT BACK, RH 71085B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, RH 71086B - COVER SUB-ASSY, REAR SIDE SEAT CUSHION, LH 71088A - COVER SUB-ASSY, REAR SIDE SEAT BACK, RH 71089B - COVER SUB-ASSY, REAR SIDE SEAT BACK, LH 71704 - BAND SUB-ASSY, REAR SIDE SEAT 71704B - BAND SUB-ASSY, REAR SIDE SEAT, NO.2 71717 - PLATE, FRONT SIDE SEAT LEG 71717 - PLATE, FRONT SIDE SEAT LEG 71721 - PAD, REAR SIDE SEAT CUSHION, RH 71722 - PAD, REAR SIDE SEAT CUSHION, LH 71747 - FRAME, REAR SIDE SEAT BACK, LH 71761A - PAD, REAR SIDE SEAT BACK, RH 71761B - PAD, REAR SIDE SEAT BACK, LH 71774 - PLATE, REAR SIDE SEAT HINGE 71774 - PLATE, REAR SIDE SEAT HINGE 71774A - PLATE, REAR SIDE SEAT LEG 71774A - PLATE, REAR SIDE SEAT LEG 71774B - PLATE, REAR SIDE SEAT HINGE 71774B - PLATE, REAR SIDE SEAT HINGE 72966 - BRACKET, REAR SEAT TURN LOCK 72966C - PLATE, REAR SEAT TURN LOCK, NO.1 LH ** Std Part ** Std Part 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH 79382A - COVER, NO.3 SEAT FRONT BRACKET, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
