TOYOTA LAND CRUISER PRADO GRJ120R-GKPEKQ / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

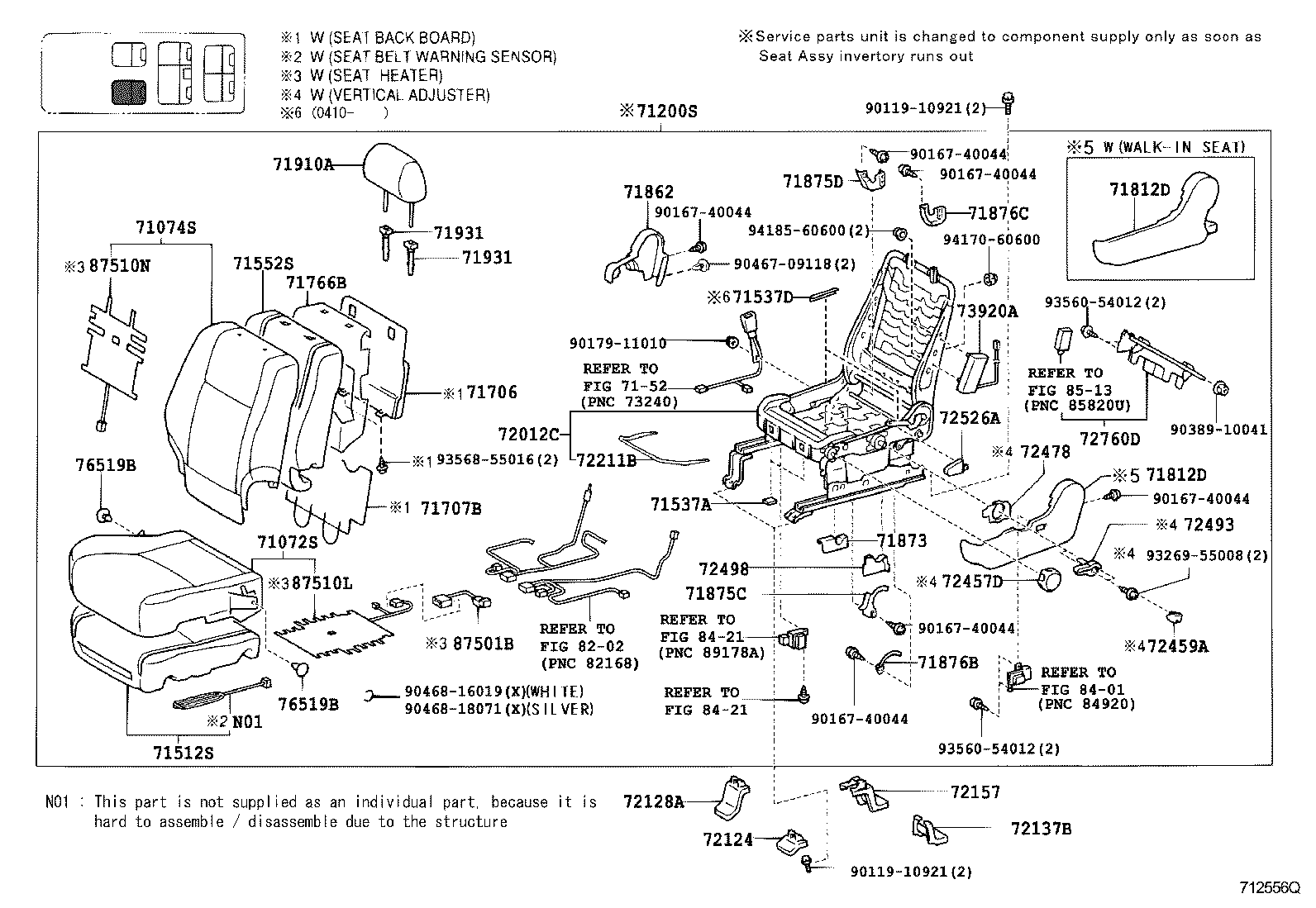

FRONT SEAT LH-W(SRS SIDE AIR BAG) ILLUST NO. 1 OF 3(0209- )ARL,GCC,GEN

 LAND CRUISER PRADO |  SEAT SEAT TRACK 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71200S - SEAT ASSY, FRONT LH 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig 71537A - PROTECTOR, FRONT SEAT CUSHION 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH 71707B - COVER SUB-ASSY, FRONT SEAT BACK BOARD 71766B - PROTECTOR, FRONT SEAT BACK, LH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71875D - COVER, RECLINING ADJUSTER OUTSIDE, RH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71876C - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72137B - COVER, SEAT TRACK, RH 72157 - COVER, SEAT TRACK BRACKET, INNER 72211B - HANDLE, SEAT TRACK ADJUSTING 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB 72478 - BUSH, VERTICAL ADJUSTER 72493 - HANDLE, VERTICAL ADJUSTING, NO.2 72498 - COVER, VERTICAL ADJUSTER BRACKET 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH 73920A - AIR BAG ASSY, FRONT SEAT, LH 76519B - CLIP, FRONT SEAT CUSHION COVER 76519B - CLIP, FRONT SEAT CUSHION COVER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH 87510N - HEATER ASSY, FRONT SEAT BACK, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
