TOYOTA LAND CRUISER PRADO GRJ120R-GKPEKQ / POWERTRAIN-CHASSIS / TORQUE CONVERTER FRONT OIL PUMP CHAIN ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

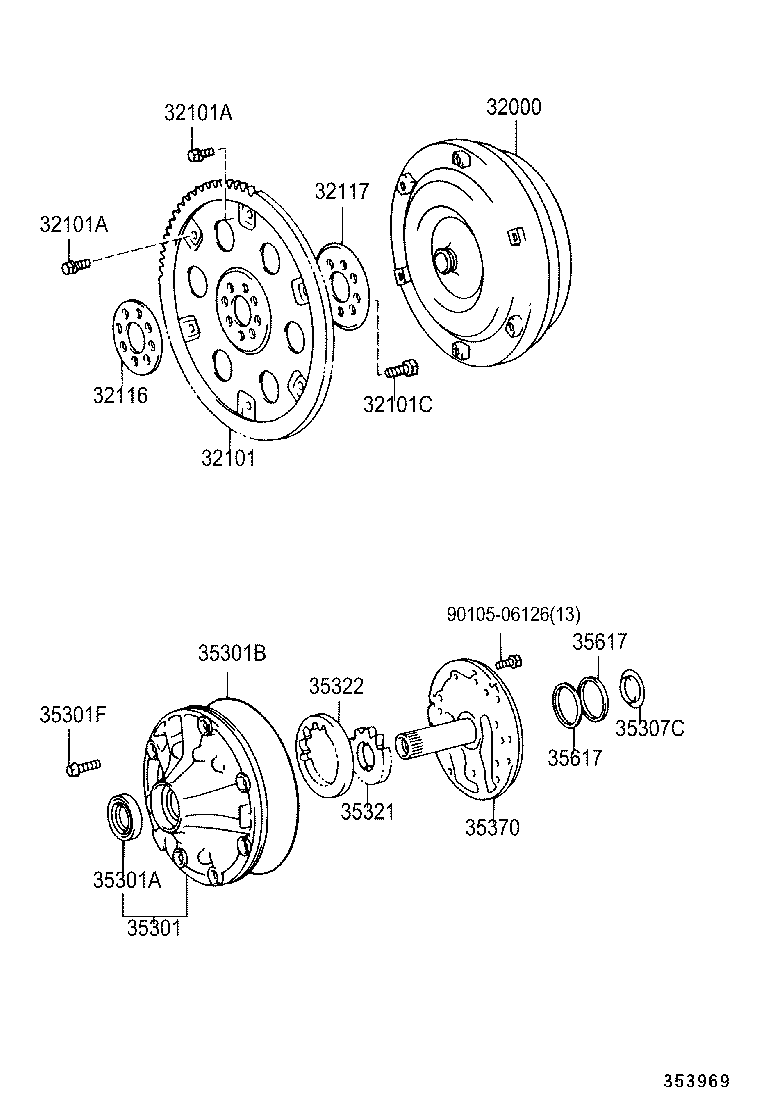

TORQUE CONVERTER FRONT OIL PUMP CHAIN ATM

A340F,A343F (0209- )GRJ12#,RZJ12#,TRJ12#..4FC

LAND CRUISER PRADO | TORQUE CONVERTER FRONT OIL PUMP CHAIN ATM 32000 - CONVERTER ASSY, TORQUE 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) 32116 - SPACER, DRIVE PLATE, FRONT 32117 - SPACER, DRIVE PLATE, REAR 35301 - BODY SUB-ASSY, FRONT OIL PUMP 35301A - SEAL, OIL (FOR FRONT OIL PUMP) 35301B - RING, O (FOR FRONT OIL PUMP BODY) 35301F - BOLT (FOR FRONT OIL PUMP SETTING) 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) 35321 - GEAR, FRONT OIL PUMP DRIVE 35322 - GEAR, FRONT OIL PUMP DRIVEN 35370 - SHAFT ASSY, STATOR 35617 - RING, CLUTCH DRUM OIL SEAL 35617 - RING, CLUTCH DRUM OIL SEAL ** Std Part
