TOYOTA LAND CRUISER PRADO GRJ120R-GKPEKQ / POWERTRAIN-CHASSIS / OIL COOLER TUBE ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

OIL COOLER TUBE ATM

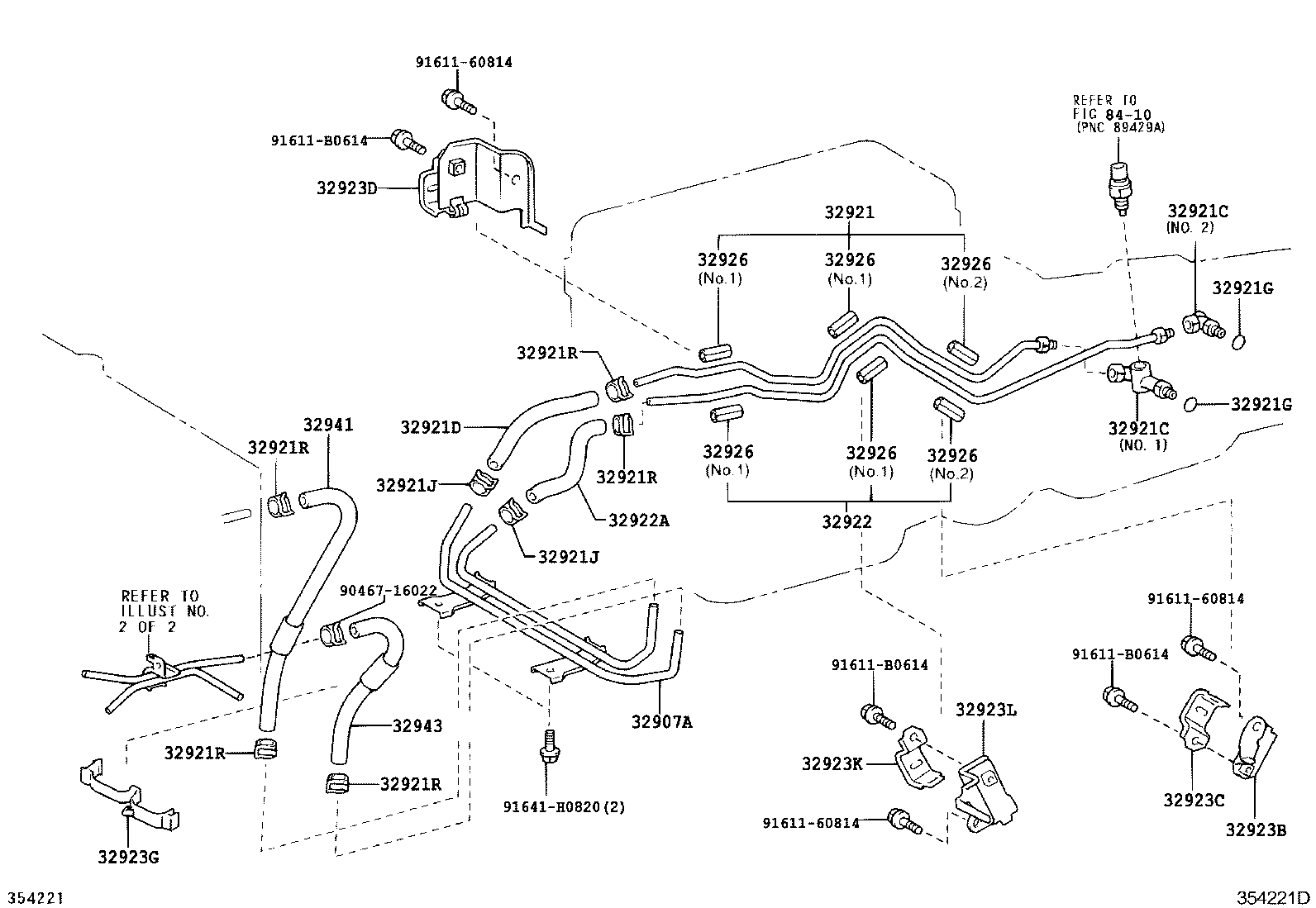

A340F ILLUST NO. 1 OF 2(0301-0408)GRJ12#..4FC

LAND CRUISER PRADO | OIL COOLER TUBE ATM 32907A - TUBE, OIL COOLER 32921 - TUBE, OIL COOLER INLET, NO.1 32921C - UNION(FOR OIL COOLER TUBE) 32921C - UNION(FOR OIL COOLER TUBE) 32921D - HOSE(FOR OIL COOLER INLET) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921G - RING, O(FOR OIL COOLER TUBE UNION) 32921J - CLIP(FOR OIL COOLER HOSE) 32921J - CLIP(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32922 - TUBE, OIL COOLER OUTLET, NO.1 32922A - HOSE(FOR OIL COOLER OUTLET) 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5 32923G - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.8 32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2 32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32926 - CUSHION, OIL COOLER TUBE(ATM) 32941 - HOSE, OIL COOLER INLET, NO.1 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
