TOYOTA T U V KF80R-GRPNEE / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

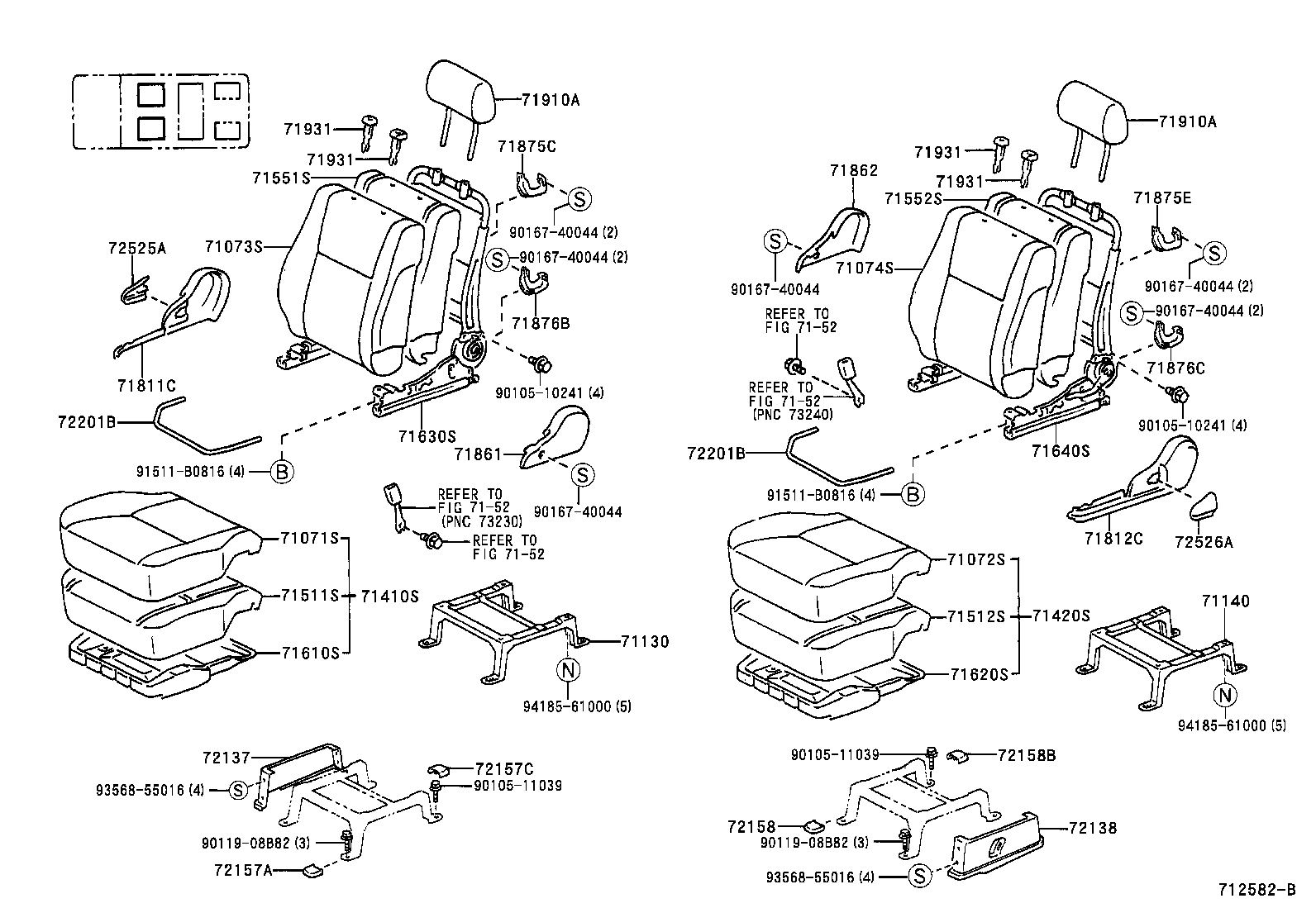

ILLUST NO. 1 OF 3(0212- )MA

T U V | SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71130 - LEG ASSY, FRONT SEAT, RH 71140 - LEG ASSY, FRONT SEAT, LH 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71811C - COVER, RECLINING ADJUSTER, RH 71812C - COVER, RECLINING ADJUSTER, LH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71875E - COVER, RECLINING ADJUSTER INSIDE, RH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71876C - COVER, RECLINING ADJUSTER INSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72137 - COVER, SEAT TRACK OUTER, RH 72138 - COVER, SEAT TRACK OUTER, LH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72157C - COVER, SEAT TRACK BRACKET, INNER RH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72158B - COVER, SEAT TRACK BRACKET, INNER LH 72201B - HANDLE SUB-ASSY, SEAT TRACK LH 72201B - HANDLE SUB-ASSY, SEAT TRACK LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
