TOYOTA HIACE VAN COMUTER RZH105L-BFMREX / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

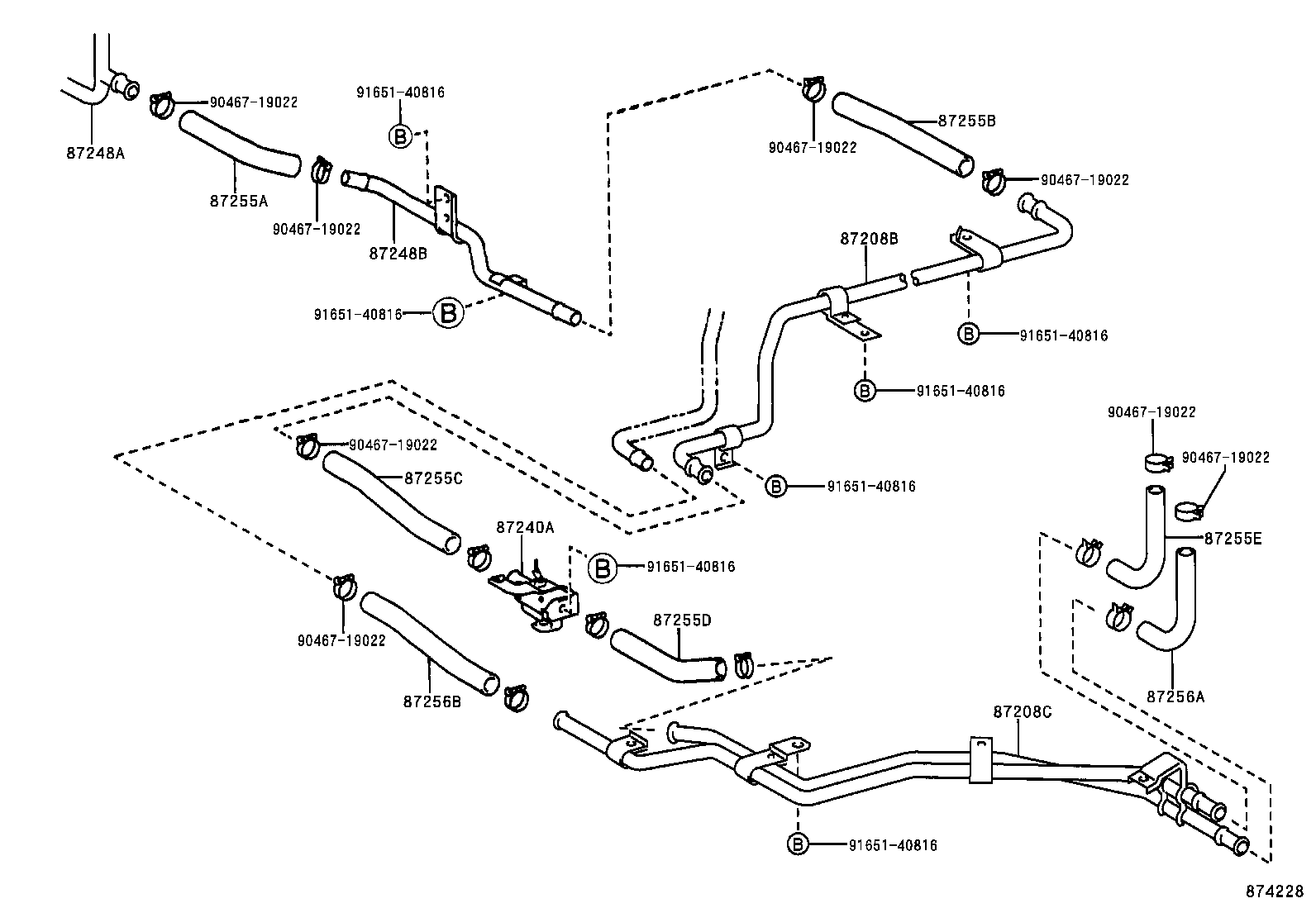

REAR ILLUST NO. 2 OF 2(9808- )RZH104,105..LHD

 HIACE VAN COMUTER |  HEATING AIR CONDITIONING WATER PIPING 87208B - PIPE SUB-ASSY, HEATER WATER, B 87208C - PIPE SUB-ASSY, HEATER WATER, C 87240A - VALVE ASSY, REAR HEATER WATER 87248A - PIPE, HEATER WATER INLET, A 87248B - PIPE, HEATER WATER INLET, B 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) 87255B - HOSE, REAR HEATER WATER INLET, B 87255C - HOSE, REAR HEATER WATER INLET, C 87255D - HOSE, REAR HEATER WATER INLET, D 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) 87256B - HOSE, REAR HEATER WATER OUTLET, B  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
