TOYOTA VIOS SOLUNA VIOS AXP42L-EEMRKC / POWERTRAIN-CHASSIS / CLUTCH HOUSING TRANSMISSION CASE MTM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

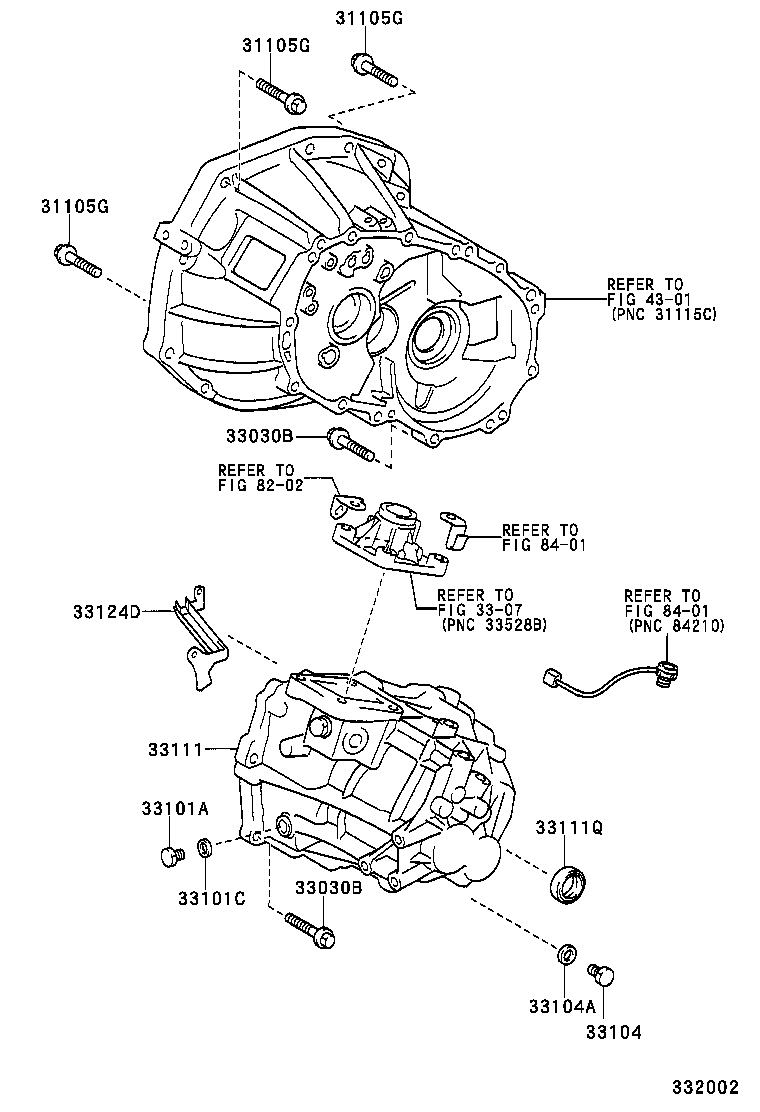

CLUTCH HOUSING TRANSMISSION CASE MTM

C550 (0210- )AXP4#,SCP4#..MTM

 VIOS SOLUNA VIOS |  CLUTCH HOUSING TRANSMISSION CASE MTM 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) ** Refer Fig 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) 33104 - PLUG SUB-ASSY, DRAIN(MTM) 33104A - GASKET, DRAIN PLUG(MTM) 33111 - CASE, MANUAL TRANSMISSION 33111Q - SEAL, OIL(FOR TRANSMISSION CASE) 33124D - PIPE, OIL RECEIVER, NO.2(MTM) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig
