TOYOTA DYNA WU300R-TKMLSD3 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

(0209-0612)WU300,340,XZU342..IDN

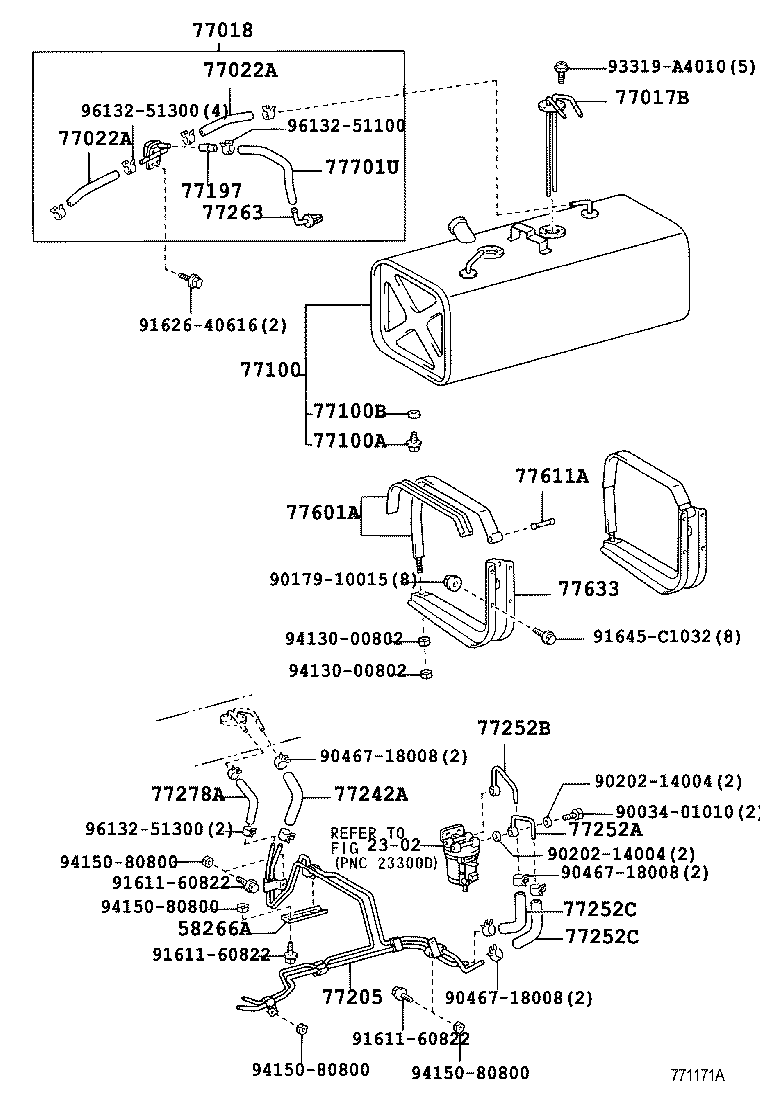

DYNA | FUEL TANK TUBE ** Refer Fig 58266A - BRACKET, FUEL TUBE CLAMP 77017B - TUBE SUB-ASSY, FUEL TANK VENT 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77100 - TANK ASSY, FUEL 77100A - PLUG(FOR FUEL TANK) 77100B - GASKET(FOR FUEL TANK) 77197 - ORIFICE, FUEL VAPOR 77205 - TUBE SUB-ASSY, FUEL MAIN 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77252A - TUBE, FUEL MAIN, NO.2 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) 77252C - HOSE, FUEL, NO.2(FOR FUEL MAIN NO.2 TUBE) 77263 - TUBE, FUEL TANK TO CANISTER, NO.3 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 77611A - PIN (FOR FUEL TANK BAND) 77633 - STAY, FUEL TANK 77701U - HOSE, FUEL (FOR CHECK VALVE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
